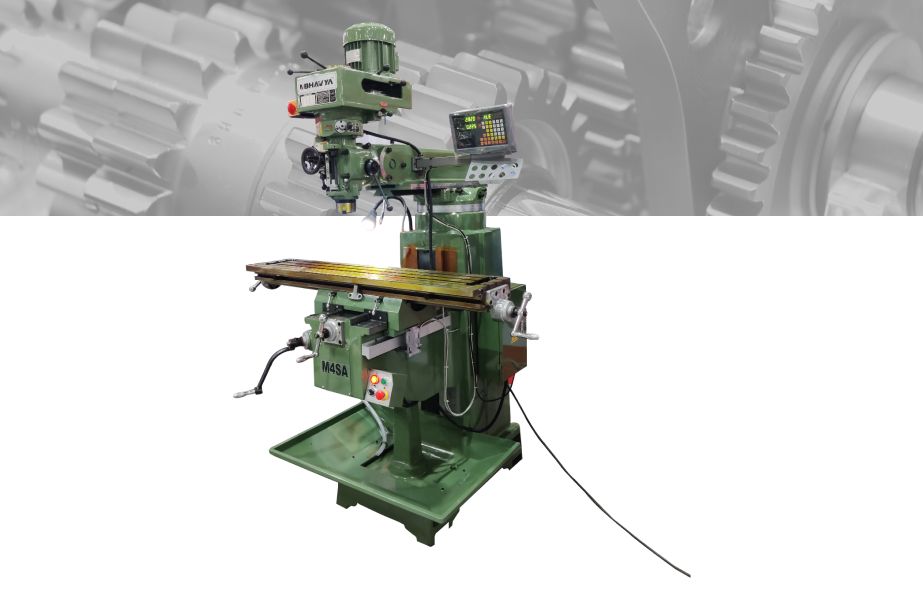

Turret Milling Machine

Bhavya Machine Tools provides different types of milling machines such as turret milling machine. This tool is useful for accurately shaping metal and many solid materials. We supply manually operated, mechanically automated and digitally automated CNC milling instruments. Our tough and user friendly instruments can perform massive and trouble-free operations. It is mostly suitable for precise and assorted milling jobs. These tools ensure durability and reliability. Their versatile features and higher cutting capacity leads to better efficiency. These instruments are created using best quality components to meet maximum load conditions. They are economical and stable. Our equipments are basically used in machine shops and tool rooms of various industries.

We serve engineering industries with plethora of workshop machineries. We offer variety of tools, Turret milling toosl is one among them. We offer turret mill over different operational modes such as mechanically operated, hand operated and digitally operated automated CNC mills. All types are guaranteed for trouble-free operation and offers precise results. We make use of tested and standard components suitable for higher loads.



Turret Milling Machine - Standard Accessories :

  • Draw Bar
  • Tool Box
  • Milling Quick Change (&) Collets
  • Auto Feed Device
  • Oil Collection Tray
  • Cooling Pump
  • Digital Read Out Device
  • Combined Pad
  • Machine Lamp
  • Modular Clamping Kit

Technical Specifications:
Particulars / Models X6323(2#) X6325(3#) XA6325(4#) XB6325(5#)
Table Size (mm) 230x1067 254x1270/1370 254x1270/1370 254x1270/1370
Table Load 250Kgs. 300Kgs 300Kgs. 350Kgs.
X Axis Travel 610mm 780mm/880mm 780mm/880mm 760mm/860mm
Y Axis Travel 350mm 395mm 395mm 420mm
Z Axis Travel 380mm 380mm 380mm 380mm
Motor Output 3.0HP 3.0HP 3.0HP 5.0HP
Head Structure Belt Driven Head Belt Driven Head Belt Driven Head Belt Driven Head
Taper of Spindle Bore R8 or NT-30 R8 or NT-30 R8 or NT-30 NT-40
No. of Spindle Speed 16speeds 16speeds 16speeds 16speeds
Range of Spindle Speed 80-5400rpm 80-5400rpm 80-5400rpm 80-5400rpm
Spindle Rotation Angle 45Degree 45Degree 45Degree 45Degree
Spindle feed Rate 0.04, 0.08, 0.15mm/r 0.04, 0.08, 0.15mm/r 0.04, 0.08, 0.15mm/r 0.04, 0.08, 0.15mm/r
Ram Travel 305mm 510mm 580mm 580mm
Ram Rotation Angle 360Degree 360Degree 360Degree 360Degree
Dimensions(LxWxH)
in mm
1500x1530x2100 1700x1550x2100 1700x1550x2100 1700x1550x2350
Note : As Improvements are made time to time the specifications are subject to change without notice and are not binding on us. Pictures shown with optional accessories.


Model No : X6323(2#)


The milling table size is 230x1067mm and it can load work materials of up to 250kgs. The mill can travel 610mm over x axis and 350mm over y axis and 350mm towards Z axis. The motor output is 3.0HP and it is equipped with belt driven head structure. It contains R8 or NT-30 spindle bore and offers 16 types of spindle speeds. The spindle can make 80-5400 rotations per minute with 45 degree of spindle rotation angle. The overall dimension of this model is 1500x1530x2100mm.


Model No: X6325(3#)


With 254x1270/1370mm of table size and 300kgs of table load the spindle can move about 780mm/880mm on x-axis, 395mm over y-axis and 380mm towards z-axis. All the turret mill models are equipped with belt driven head and 16 types of spindle speeds. The range of spindle sped is 80-5400 rotations per minute which is similar in all the four models of turret mills. The ram rotation is also similar in all the four models. Ram travel differs in each model and this type of turret is capable of 510mm of ram travel.


Model No:X6325(4#)


This model is 254x1270/1370mm and can sustain 300kgs of weight. Like Model X6325 (3#) it has similar features over spindle travel capacity over X, Y and Z axis. The Ram travel is 580mm and dimension of the tool is 1700x1550x2100mm.


Model No: X6325 (5#)


This model holds table of size of 254x1270/1270mm which can load up to 350kgs. It can travel 780mm/860mm along X-axis and 420mm along Y-axis and 380mm over Z-axis. Ram travel capacity is 580mm and overall dimension of the tool is 1700x1550x2350mm.



Sailent Features:

  • Rectangle table guideway with high stability
  • Hardened and ground table surface
  • Automatic feeds on x.y.axis motorized lifting and lowering of table on z axis


All the turret mill models are equipped with rectangle table guide way with high stability and it contains hardened and ground table surface. Work material feed is possible on automatic basis over x and y axis and towards z axis it is done through motorized lifting.


We provide the following standard accessories for all the models which includes the draw bar, cooling pump, digital read out device to check accuracy of machining, machine lamp to assist for illumination, modular clamping kit, oil collection tray, and auto feed device for easy material feeding. Our turrets are economical in model and for durable machine shop activities like shaping of different metals these tools stay perfect choice. Pricing is another important attraction at Bhavya, we offer cost effective price than our competitors.


Turret Milling Machine


Model

M3

M4

M4A

M4B

M5

Table size

1270mmx 254mm

1370mmx 254mm

1370mmx 254mm

1370mmx 254mm

1370mmx 305mm

T-Slot

3 x 16mm

3x 16mm

3x 16mm

3x 16mm

3 x 16mm

X-Axis

760mm

860mm

860mm

860mm

900mm

Travel     Y-Axis

400mm

400mm

400mm

400mm

445mm

Z-Axis

405mm

405mm

405mm

405mm

485mm

X-Axis




Guide Way Y-Axis




Z-Axis



Ram Travel

510mm

580mm

580mm

580mm

580mm

Spindle Taper

R8(NT30-Optional)

R8(NT30-Optional)

R8(NT30-Optional)

R8(NT30-Optional)

NT40

Quill Travel

127

127

127

127

127

Spindle Nose to Table

0-440mm

0-440mm

0-440mm

0-470mm

0-440mm

Head Tilt


90 Deg Forward and backjeft & right


90 Deg Forward and backjeft & right

Speed Step Number

16

16

16

16

16

Spindle Speed

70-4620RPM

70-4620RPM

70-4620RPM

70-4620RPM

70-4620RPM

Quill Feed

0.04,0.08,0.15

0.04,0.08,0.15

0.04,0.08,0.15

0.04,0.08,0.15

0.04,0.08,0.15

Power

3HP

3HP

3HP

3HP

3HP
