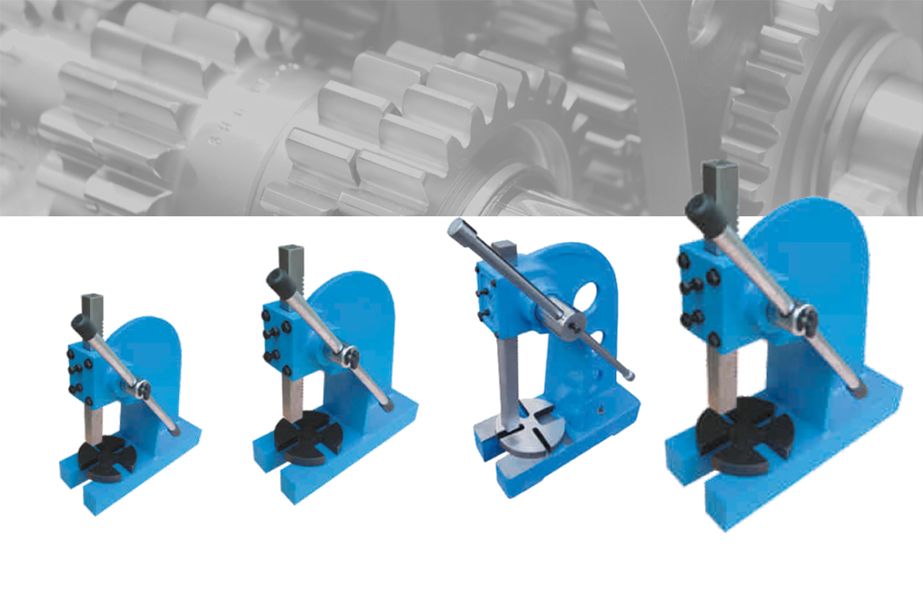

AP Series – ARBOUR PRESS

Model : AP – 1,AP – 2..

Features

  • High Quality Steel Body Design
  • For Press Fitting and Pulling Bearing
  • 4-Position Plate
MODEL AP – 1 AP – 2 AP – 3 AP – 5
Capacity 1 – Ton 2 – Ton 3 – Ton 5 – Ton
Maximum Height   x Dia. 110 x 100mm 180 x 123mm 285 x 163mm 400 x 226mm
Largest Arbor 29mm 40mm 44mm 70mm
Ram Square Size 25 x 25mm 32 x 32mm 38 x 38mm 50 x 50mm
Press Height 355mm 445mm 615mm 815mm
Base Size 268 x 190mm 432 x 260mm 455 x 300mm 645 x 176mm
Packing Size 290 x 140 x 350mm 460 x 200 x 460mm 460 x 250 x 640mm 760 x 370 x 950mm
Net Weight 15 Kg. 36 Kg. 63 Kg. 155 Kg.
