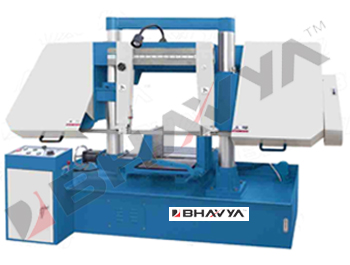

Double Column Semi Automatic Horizontal Bandsaw Machine (BDH400 A, BDH500 A)
Model : BDH400 A, BDH500 A
- Stress Relieved Fabricated Steel Structure
- Hard Chrome Plated Ground Column
- Automatic Height Adjustment for Saw Frame
- Variable Pressure Control for Cutting Feed
- Auto Cutting Stop
- Push Button Type Operating Panel Board
- Heavy Duty Worm Gear Box
- Moveable Blade Support Guide
- Manual Blade Tensioning Arrangement
- Material Feeding Manually
| Model | BDH400 A | BDH500 A |
|---|---|---|
| Cutting Capacity Round | 400mm | 500mm |
| Cutting Capacity Square | 400 x 400mm | 500 x 500mm |
| Blade Size | 5000 x 41 x 1.3mm | 5800 x 41 x 1.3mm |
| Blade Speed | 27, 45, 69m/min. | 27, 45, 69m/min. |
| Clamping Type | Hydraulic | Hydraulic |
| Main Motor Power | 4kW | 5.5kW |
| Hydraulic Motor Power | 0.75kW | 0.75kW |
| Coolant Motor | 0.125kw | 0.125kw |
| Power Supply | 415V-50Hz-3Phase | 415V-50Hz-3Phase |
| Overall Dimension | 2500 x 1300 x 1600mm | 2800 x 1300 x 2000mm |
Standard Accessories :
- Saw Blade
- Coolant Systems
- Machine Lamp
- Blade Tensioning Wrench
- Adjustable Bar Support Stand
- Tool Kit
- Operating & Instruction Manual
