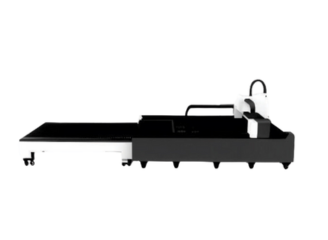

Exchange Worktabable FIber Laser Cutting Machine

3015 Series

Model No

6020 Series
6022 Series
3015 Series

Get A Quote

Technical Specifications

Model	BDC-3015	BDC-4015	BDC-4020	BDC-6020	BDC-8025
Processing Range	3000 × 1500 mm	4000 × 1500 mm	4000 × 2000 mm	6000 × 2000 mm	8000 × 2500 mm
X-axis Travel	1560 mm	2060 mm	2560 mm	2560 mm	2560 mm
Y-axis Travel	3000 mm	4080 mm	6080 mm	8080 mm	8080 mm
Z-axis Travel	250 mm	250 mm	250 mm	250 mm	250 mm
Laser Power	300 W / 6000 W / 12000 W
X/Y Axis Positioning Accuracy	< ±0.03 mm/min
X/Y Axis Repeated Positioning Accuracy	< ±0.02 mm/min
Max. Positioning Speed	120 m/min

*Specifications are subject to changed without prior notice.

Features

Exchange Table :

The independent movement of the two platformsis irrelevant, the accuracy does notaffect eachother, and the slag removal is more convenient With doubletaper pinpositioning, it can be in place in one step without difference; The worktable is drivenby doublemotors, withstable exchange and high speed.

Exhauted System:

The exhaust system is divided into left and right zones, with concentrated suction,large-diameter exhaust pipes on both sides, and smooth smoke exhaust, Positive wind pressure, upper pressure and lower suction, strong suction system, environmental protection and no pollution.
