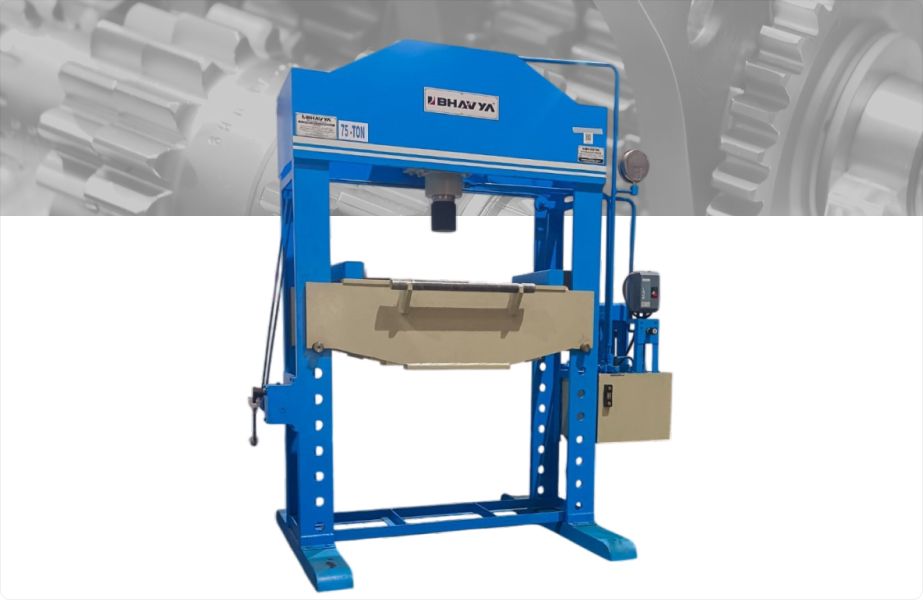

Hydraulic Press – “H” Type Power Operated

  • Structure
  • The Presses have good rigid structure for accurate works.

  • Power Pack Unit
  • Our Presses are powered by specially designed Power Pack Unit having Oil Breather (Hydroline), Oil Level Indicator (Hydroline), Suction Strainer (Hydroline), Gear pump (Bosch Rexroth), Flexible Coupling (Jeck Tech), Electric Motor (Crompton / Siemens), Hand Lever operated Direction Control Valve (Bosch Rexroth), Pressure Gauge (Air Master), Return Line Filter (Hydroline), Oil Tank (without oil), Internal & External Pipe Line etc.

  • Hydraulic Cylinder
  • Our Presses are powered by specially designed Double Acting Hydraulic Cylinders. Cylinders manufactured out of quality steel. Cylinder bores will be honed to mirror finish or long life of piston seals. All chevron seals & bronze strip used for leak proof performance. Ram will be made from EN-8 material & surface ground hardened for long life of seals & corrosion resistance.

Hand Operated

Capacity in TonnesDistance Between ColumnDistance Between Ram To BedStrokeMotor H.P.
5160×400125×5001002
15200×750150×6501503
25280×800175×8001753
40375×950175×9001753
60425×1010175×9002005
75450×1125175×9002005
100500×1200175×9002005
150600×1300200×10002257.5
200700×1400400×120022510
250800×1500400×120025015
300900×1600400×120025020
