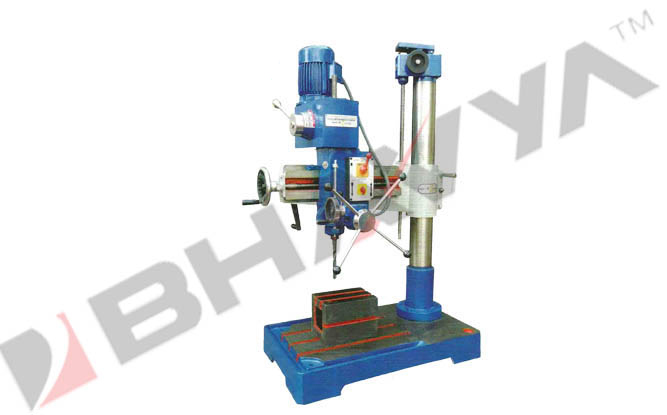

Radial Drill Machine(BR-38)

Model : BR-38
  • Column, Arm, Work Head & Gears are made out of Closed Grain.
  • Parts Properly Balanced
  • Prior Assembling of Main Gear & Pully
  • Parts Finished on imported Grinding Machine
  • All moving parts Finished to close Tolerance
  • Spindle Ram is made out of Alloy Steel.
  • Main Spindle & Pinon are Made out of EN Forged Steel.
ModelBR- 38
CAPACITY
Capacity38mm
Coloumn Diameter170mm
Spindle NoseMT-4
Dist. From Spindle620mm
to Pillar Surface
Spindle Travel250mm
No. Of Spindle Speed8
Coloumn Diameter127mm
Spindle Speed (RPM)110-2125
Base To Spindle Nose810mm
Drilling Motor1 & 0.5 H.P.
Diameter of Ram78 mm
WORKING RANGE
Dist. From Spindle to base  (Max/Min)950/240
Dist. From Colum to Spindle825/385
Max. Drilling Radius910
ELECTRIC
Drill Head Motor (1440RPM)1.5
Lifting of arm Motor (1440 RPM)0.5 H.P
V-BELT SectionB-47& B-24
OTHER
Machine Measurement1280x930x1855
Size of box TABLE300x300x385

Radial Drill Machine(BR-38)

This model can make hole a little more than BR 25 and the making hole capacity is 38mm. The column diameter is 170mm and the distance of drilling head from the spindle is 620mm which helps for precise making hole operation. The number of spindle speed that can be obtained in this model is 8. The spindle speed is 110-2125 rotations per minute and the diameter of ram is 78mm. The spindle is made of EN forged steel and all the parts are processed with the help of imported grinding instruments to make it easy to fix. Our manufacturing team checks all the instrument parts before they are sent for main instrument assembly.

All Parts Finished

  • Closed grain Cast Iron Column, Arm, Work Head & Gears
  • EN Forged Steel Main Spindle & Pinion
  • Alloy Steel Spindle Ram
  • Parts Finished on Imported Grinding M/c. All Moving Parts Finished to Close Tolerance.
  • Parts properly balanced prior assembly. Main Gear & Pulley
