All-Geared Lathe Machine

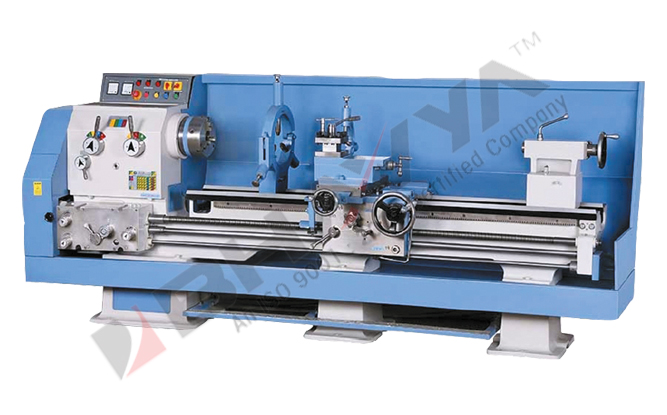

All Geared Lathe Machine (BGH)

All Geared Lathe Machine (BGH)

LATHE

Model No

BGH
BGH - 1
BGH - 2
BGH - 3

Get A Quote

Technical Specifications

Model	BGH	BGH-1	BGH-2	BGH-3
Height For Centers	267 mm	305 mm	305 mm	400 mm
Swing Over Bed	525 mm	600 mm	600 mm	770 mm
Swing Over Cross Slide	300 mm	375 mm	375 mm	500 mm
Swing In Gap	825 mm	910 mm	910 mm	1170 mm
Bed Width	325 mm	325 mm	325 mm	457 mm
Main Spindle
Type Spindle Nose	Threaded/A2-6	Threaded/A2-6	Threaded/A2-6	Threaded/A2-8
Spindle Bore	52 mm	52 mm	80 mm	100 mm
No. Of Speeds	12	12	12	9
Range RPM	30-1060 rpm	30-1060 rpm	30-1060 rpm	18-310 rpm
Feeds/Threads
No. Of Feed	40	40	40	40
Longitudinal Feeds	0.066-2.0 mm/rev	0.066-2.0 mm/rev	0.066-2.0 mm/rev	0.066-2.0 mm/rev
Transverse Feeds	0.165-0.5 mm/rev	0.165-0.5 mm/rev	0.165-0.5 mm/rev	0.165-0.5 mm/rev
Inch	40/2-60 TPI	40/2-60 TPI	40/2-60 TPI	44/2-60 TPI
Metric	17/0.5-15 mm	17/0.5-15 mm	17/0.5-15 mm	24/0.5-15 mm
Lead Screw Diameter	38 mm x 4 TPI	38 mm x 4 TPI	38 mm x 4 TPI	38 mm x 4 TPI
Tail Stock
Spindle Diameter	60.3 mm	60.3 mm	60.3 mm	75 mm
Taper In Spindle Sleeve	MT-4	MT-4	MT-4	MT-5
Tail Stock Spindle Travel	180 mm	180 mm	180 mm	250 mm
Electricals
Main	3 HP	3 HP	3 HP	5 HP

Admit Between Centers

Bed Length	BGH	BGH-1	BGH-2	BGH-3
7-Feet	1000mm	1000mm	1000mm	700mm
9-Feet	1600mm	1600mm	1600mm	1300mm
10-Feet	1900mm	1900mm	1900mm	1600mm
12-Feet	2500mm	2500mm	2500mm	2200mm
14-Feet	3100mm	3100mm	3100mm	2800mm
16-Feet	3700mm	3700mm	3700mm	3400mm
18-Feet	4300mm	4300mm	4300mm	4000mm
20-Feet	-	-	4900mm	4600mm
22-Feet	-	-	5500mm	5200mm
24-Feet	-	-	6100mm	5800mm

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Flame Hardened Bed
Norton Gear Box with Single Screw Shaft
Electric Motor
R/F Switch
Motor Pulley

Chuck Plate
Centre Adaptor
Dead Centre (2 Nos.)
Tool Post Spanner

Optional :

Electric Control Panel in lieu of R/F Switch
True Chuck
Dog Chuck
Steady Rest
Follow Rest
Face Plate
Carrier Plate
Extra Chuck Plate
Taper Turning Attachment

Coolant Pump with Tank & Fittings
Key Way Cutting Attachment
Machine Lamp
Tool Post Grinder
Revolving Centre
Rear Splash Guard
2-Axis DRO (Digital Read Out)
Drill Chuck
Pipe Centre

Photo Gallery

BGH 2 10' Lathe Machine

BGH 3 16' Lathe Machine

Videos

All Geared Lathe Machine (BGH-2)
