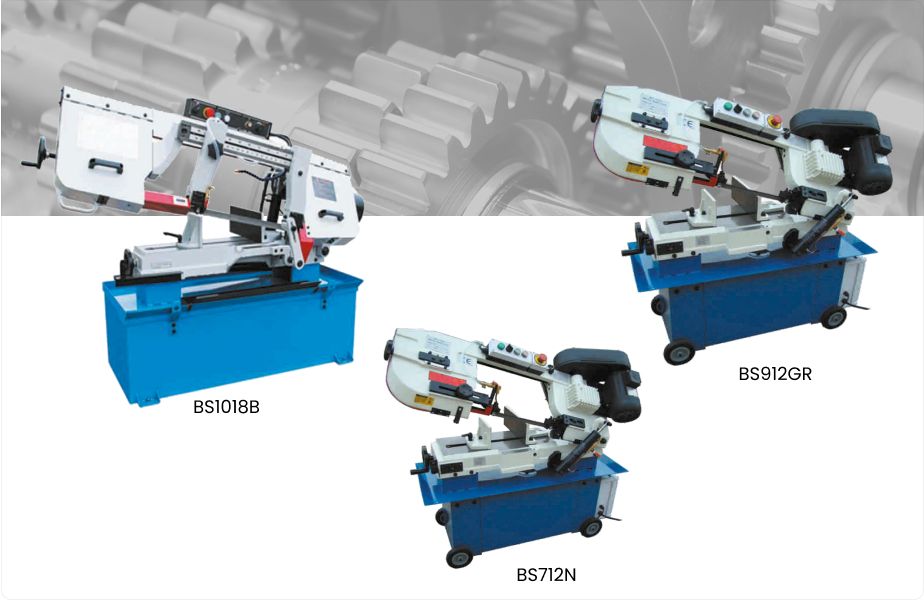

Swing Arm Portable Series

BANDSAW

Model No

BS-712N
BS-712GR
BS-912B
BS-912GR
BS-1018B

Get A Quote

Technical Specifications

Model No	BS-712N	BS-712GR	BS-912B	BS-912GR	BS-1018B
Capacity Round @ 90°	0178mm	0178mm	0229mm	0229mm	0254mm
Capacity Rectangular @ 90°	178X305mm	178X210mm	178X305mm	178X305mm	127X457mm
Capacity Round @ 45°	0127mm	0127mm	0150mm	0150mm	0150mm
Capacity Rectangular @ 45"	120X125mm	85X140mm	127X150mm	127X150mm	150X190mm
Blade Size	2362x19x0.9mm	2362x19x0.9mm	2655x27x0.9mm	2655x27x0.9mm	3280x27x0.9mm
Blade Speed (m/min)	22,33,45,65m/min.	39,66,82m/min	39,66,82m/min	31,65,95m/min	29,50,73,95m/min
Drive	V-Belt	Gear	V-Belt	Gear	V-Belt
Job Clamping Type	Manual	Manual	Manual	Manual	Manual
Main Motor Power	1.5HP	1.0HP	1.5HP	1.5HP	2.0HP
Packing Dimension	1250x510x1150mm	1320x770x1150mm	1540x590x1150mm	1600x600x1150mm	1830x830x1150mm
Net/Gross Weight	145/178Kgs	175/197Kgs	230/260Kgs	220/260Kgs	310/385Kgs

*Specifications are subject to changed without prior notice.

Photo Gallery

BS-500

Videos

Swing Arm Horizontal Metal Cutting Bandsaw Machine (Model - BS-712N)

Bow Type Horizontal Metal Cutting Bandsaw (Model – BS-712GR)

Swing Arm Type Horizontal Metal Cutting Bandsaw Machine (BS 912B)

Bow Type Horizontal Metal Cutting Bandsaw Machine (BS 912GR Swing Arm Bandsaw)

Swing Arm Horizontal Metal Cutting Bandsaw (Model BS - 1018B)
