Pipe / Profile Machines
CNC Hydraulic Automatic Pipe Cutting Machine
Technical Specifications
Product Overview
- CNC automatic pipe cutting machine designed for high efficiency, high precision batch cutting of mild steel, stainless steel, carbon steel, alloy pipes. It features double clamp servo feeding, floating centering clamping, Mitsubishi control system, dual pump energy saving hydraulic system, and dual- fan forced air cooling and all gear cutting head. It supports single / multiple pipes cutting and provides clean, burr free, perpendicular cuts with accuracy.
| MODEL | PC CNC-425LRC | PC CNC-425 UDC |
|---|---|---|
| Degree | 90° | 90° |
| Square Pipe | 120 x 120mm | 80 x 80mm |
| Round Pipe | Φ 120mm | Φ 80mm |
| Clamp Type | Left & Right | Up & Down |
| Feeding Stroke | 1500 mm | 1500 mm |
| Blade Speed | 0-120 RPM | 0-120 RPM |
| Main Motor Power | 3.7/4.3 kw | 3.3/4 kw |
| Applied Saw Blade | Φ 250-450 mm | Φ 250-450 mm |
| Arbor Dia | Φ 32 mm | Φ 32 mm |
| Oil Pump System | 3 kw, 4-Pole Motor, Dual Oil Pump, Working Pressure 25-50 kg/cm² | 3 kw, 4-Pole Motor, Dual Oil Pump, Working Pressure 25-50 kg/cm² |
| Feeding Servo Motor | 1000w | 1000w |
| Servo Motor | Mitsubishi Japan | Mitsubishi Japan |
| PLC | Mitsubishi Japan | Mitsubishi Japan |
| Cooling System | 90w Motor, Automatic Cooling Circulation | 90w Motor, Automatic Cooling Circulation |
| Machine Weight | 1100 kg | 1300 kg |
| Machine Size | 3400mmx1000mmx1900mm | 3300mmx1500mmx1600mm |
*Specifications are subject to changed without prior notice.
Photo Gallery

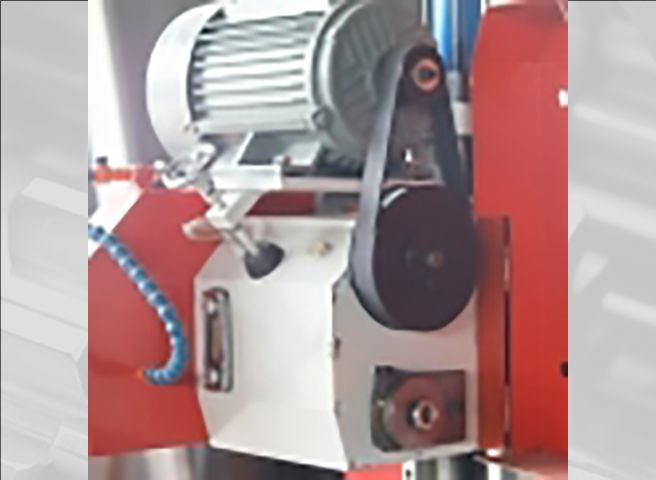

Gear Box Drive with Timing Belt Type Motor

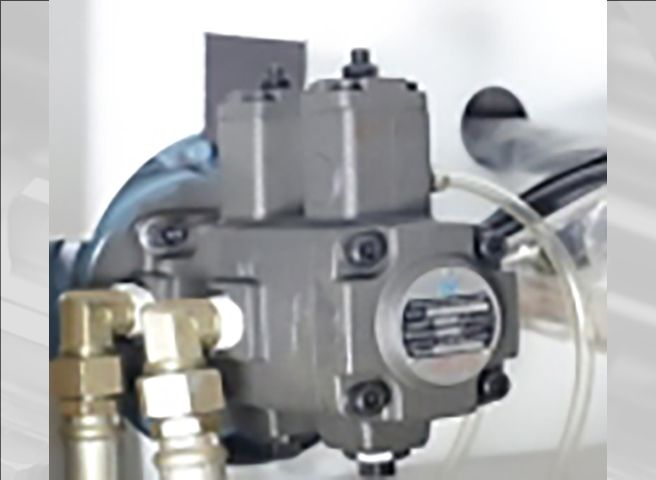

Hydraulic Power Pump Station

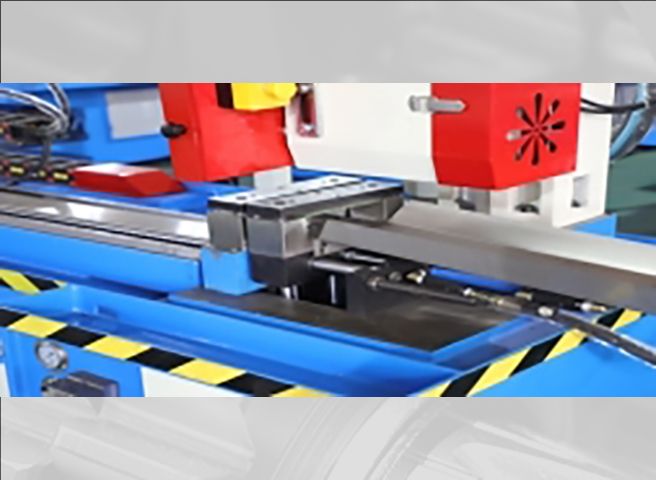

Double-Clamp Servo-Feed Cutting Head

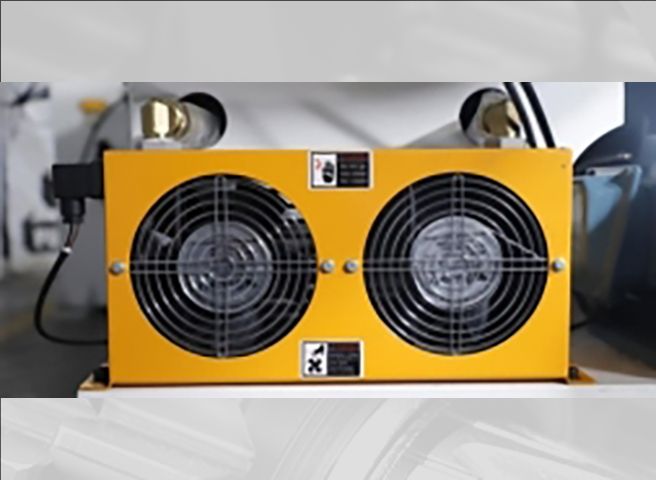

Hydraulic Oil Cooling System

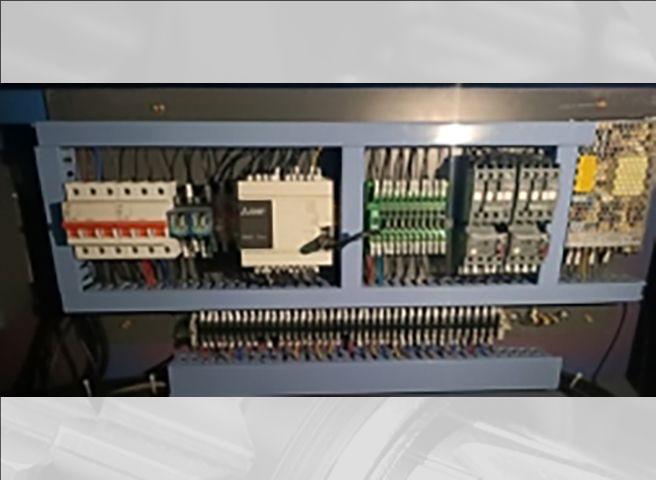

Electrical Control System

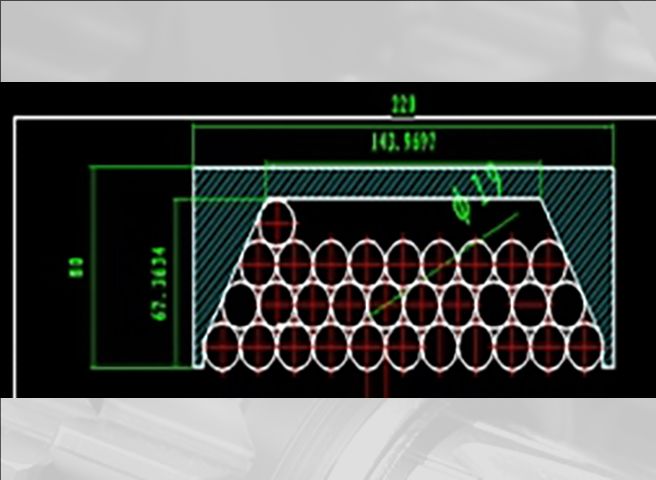

Multiple Pipes Arrangement With Up/Down Clamp
