CNC Hydraulic Press Brake Machine (CNC Series with Energy Saving SERVO Motor)

PRESS BRAKE

Model No

40T
63T
80T
100T
125T
160T
200T

250T
300T
400T
500T
600T
800T

Get A Quote

Technical Specifications

MODEL	Nominal Pressure	Max bending width	Distance between up rights	Throat Depth	Cylinder Stroke	Daylight	Servo Motor Power	Oil Volum	Speed(mm/s)			Dimension			Weight
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	(KW)	(KG)	Approaching Speed	Working Speed	Returning Speed	Length	Width	Height	(KG)
40T/1600	400	1600	1200	205	160	380	4	200	200	15	180	2200	1450	2155	3000
63T/2500	630	2500	2000	320	160	430	5.5	200	200	14	180	3050	1600	2350	4500
80T/2500	800	2500	2000	320	160	430	7.5	200	190	13	180	3050	1600	2450	5000
80T/3200	800	3200	2600	320	160	430	7.5	200	190	13	180	3700	1800	2450	6000
80T/4000	800	4000	3400	320	160	430	7.5	300	180	13	180	3070	1750	2450	6600
100T/2500	1000	2500	2000	400	200	470	7.5	250	180	12	180	3240	1780	2650	6000
100T/3200	1000	3200	2600	400	200	470	7.5	200	180	12	180	3300	1750	2660	6700
100T/4000	1000	4000	3400	400	200	470	7.5	300	180	12	180	4650	1750	2650	7600
125T/2500	1250	2500	2000	400	200	470	7.5	200	180	12	180	3100	1750	2650	6600
125T/3200	1250	3200	2600	400	200	470	7.5	250	180	12	180	4030	1790	2750	7300
125T/4000	1250	4000	3400	400	200	470	7.5	300	180	12	180	4500	1750	2650	8500
125T/5000	1250	5000	4200	400	200	470	7.5	400	160	12	160	5830	1790	3100	10000
125T/6000	1250	6000	5200	400	200	470	7.5	800	160	12	160	6830	1790	3200	12000
160T/2500	1600	2500	2000	400	200	470	11	200	180	12	180	3350	1800	2730	7800
160T/3200	1600	3200	2600	400	200	470	11	250	180	12	180	4050	1800	2730	9000
160T/4000	1600	4000	3400	400	200	470	11	300	180	12	180	4550	1900	2750	10300
160T/5000	1600	5000	4200	400	200	470	11	400	160	12	100	5700	1800	3080	12000
160T/6000	1600	6000	5200	400	200	470	11	800	160	12	100	6700	1800	3130	14500
200T/3200	2000	3200	2600	440	200	470	15	250	160	12	140	3900	1800	2850	10500
200T/4000	2000	4000	3400	440	200	470	15	300	160	12	140	4700	1900	2850	11600
200T/5000	2000	5000	4200	440	200	470	15	400	140	12	90	5820	1850	3250	14000
200T/6000	2000	6000	5200	440	200	470	15	800	140	12	90	6820	1850	3350	16500
250T/3200	2500	3200	2600	440	250	520	18.5	400	140	12	110	4050	1860	3000	13000
250T/4000	2500	4000	3400	440	250	520	18.5	400	140	12	110	4850	1860	3100	16000
250T/5000	2500	5000	4200	440	250	520	18.5	600	130	12	80	5850	1860	3250	15500
250T/6000	2500	6000	5200	440	250	520	18.5	800	130	12	80	6850	1860	3350	17500
300T/3200	3000	3200	2600	450	300	570	22	400	100	12	90	4600	2260	3400	15500
300T/4000	3000	4000	3400	450	300	570	22	400	100	12	90	5400	2260	3500	17500
300T/5000	3000	5000	4100	450	300	570	22	600	90	12	90	6430	2260	3680	16500
300T/6000	3000	6000	5100	450	300	570	22	800	90	12	90	7430	2260	3850	23200
400T/4000	4000	4000	3400	450	350	620	22	1000	90	12	90	4700	2300	3900	16000
400T/6000	4000	6000	5000	450	350	620	22	1000	90	12	90	6900	2300	3900	29000
500T/4000	5000	4000	3400	500	400	620	30	1000	80	10	80	4700	2400	3500	35000
500T/6000	5000	6000	5000	500	400	620	30	1000	80	10	80	6700	3000	3500	40000
500T/8000	5000	8000	6900	500	400	620	30	1000	80	10	80	8700	3200	3500	50000
600T/6000	6000	6000	5000	550	400	620	45	1400	80	10	80	6700	3400	3500	50000 Wir
600T/8000	6000	8000	6900	550	400	620	45	1400	80	10	80	8700	3500	3800	65000
800T/6000	8000	6000	5000	550	400	620	55	1600	80	10	80	6700	3500	4300	85000
800T/8000	8000	8000	6900	550	400	620	55	1600	80	10	80	9700	3800	4500	100000

*Specifications are subject to changed without prior notice.

Accessories

Standard Features:

Siemens Motor With Sunny Pump
Servo Main Motor (Optional)
X Axis - Ball Screw And Double LM Guide
Stop Finger on Double LM Guide
Proportional Valve - Rexroth (Y1 & Y2)
Laser Light

Electric Crowning
Grating Rular - GIVI
Quick Clamp - Half & Full Open
R Axis - With Rack And Pinion And LM Guide
Schneider Electric

Features

Main Drive Motor.
HK-68T 2D Programming/3D Simulation Controller
21-inch full-color touch screen
Proportional hydraulics for Y1, Y2 axis.
GIVI - Individual linear encoder for Y1 & Y2 for precise- beam movement AC Servo motor with resolver for back gauge drive.
X Axis Back-gauge on Double LM Guide and Hardened & Ground Ball Screw.
R Axis Attached with Rack & Pinion and LM Guide.
One Standard 2V/4V/Multi-V hardened & grounded die and punch**
Motorized crowning anti deflection unit.
Pair of sheet support with LM GUIDE.
Movable work station with pair of foot switch
Hardened Die And Punch (42crmo4)
Laser Light For Alignment

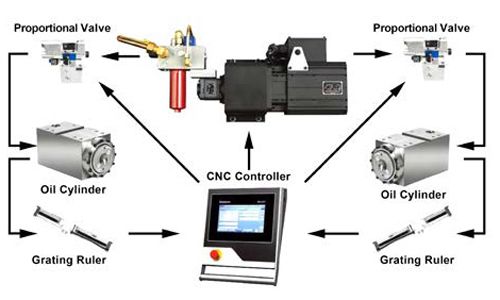

Optional Configuration:

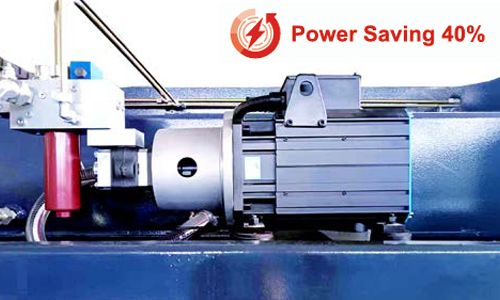

Energy Saving System Key Features:

Dynamic Speed Adjustment for Energy Savings: Monitors real-time load demands and automatically adjusts motor speed (e.g., servo or variable-frequency motors) to avoid energy waste from constant high-speed operation.
Energy-Saving Principle: Based on the formula Power Torque Speed, it reduces motor speed under light loads to minimize energy consumption (similar to VFD logic but may incorporate advanced control algorithms).
Advantages:
Reduces idle/light-load power waste.
Extends equipment lifespan (less mechanical wear).

Backgauge Options:

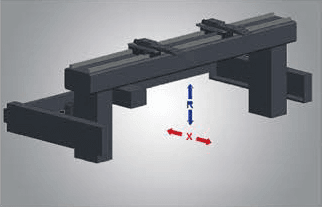

2 Axis Back gauge (5 Axis Machine)

X+R

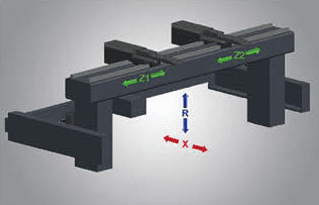

4 Axis Back gauge (7 Axis Machine)

X+R+Z1+Z2

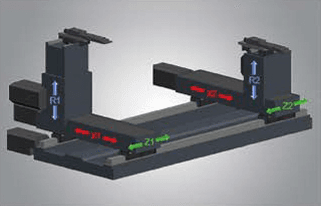

9 Axis Back gauge (9 Axis Machine)

X1+X2+R1+R2+Z1+Z2 (Optional)

CNC Controller for Your Choice :

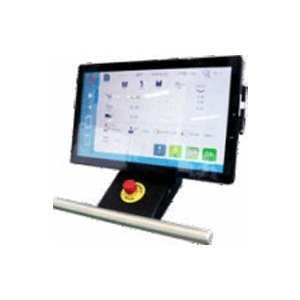

HK - 68T Controller - 2D Programing & 3D Viewer

21.5" full-color touch screen display.
Supports mold library and product library settings.
Comes with Y1, Y2, X, R axes and can add more axes if needed (optional).
Supports crowning (mechanical compensation) for accurate bending.
Can automatically create programs for large radius bending.
Can perform automatic bending for up to 25 steps Includes 200 product libraries, each with 25 steps, and large arc programs can have up to 99 steps.
Allows parameter backup and USB data transfer for easy setup, debugging, and maintenance.
Supports CAD drawing import

HK - 68T

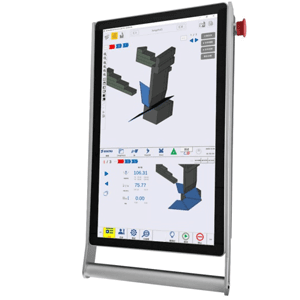

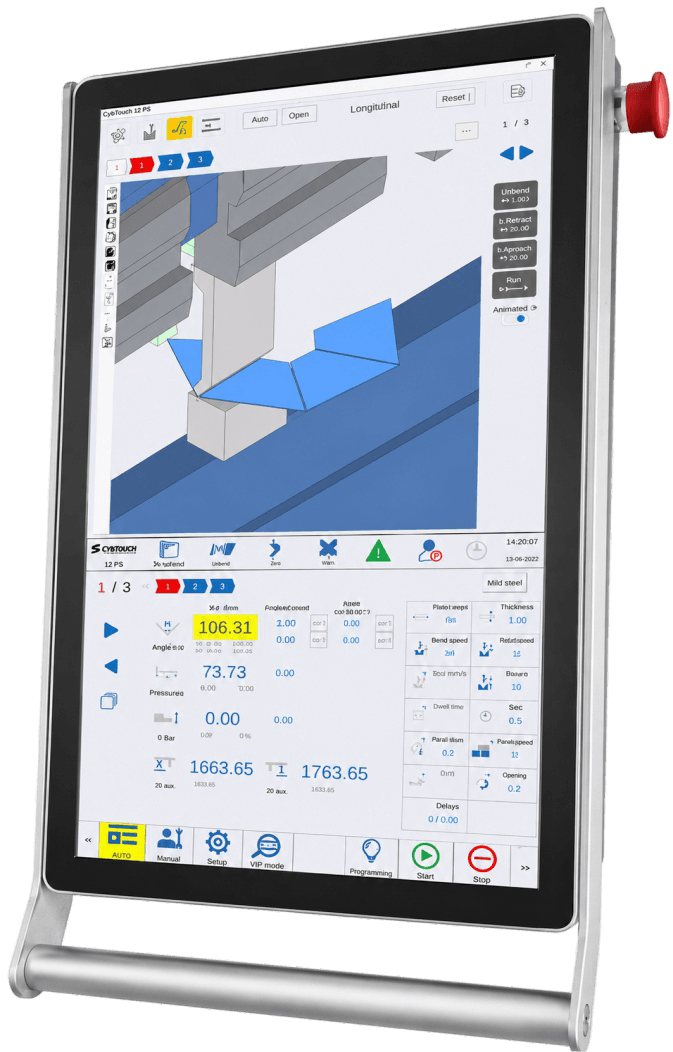

S730BA Controller - 2D/3D Programing & Simulation Standard

Controller origin from Taiwan Province
It provides 3D file import, automatic sorting, and interference checking 2D Graphics quick programming, Supports automatic and manual sorting.
Auto Tool Sequence and tool Segmentation support.
Full-colour Double touch screen display with Emergency stop.
Standard 4-axis, Supports up to 9 axes
Supports crowning (mechanical compensation) for accurate bending.
Can automatically create programs for large radius bending.
Memory 4G, the number of programs can be saved more than 9999+ Allows parameter backup and USB data transfer for easy setup, debugging, and maintenance.
Mould and product 2D Drawing import.
Remote support.
Note : Dalem, ESA Also Available (If Required).
