Light Duty Slotting Machine (BS)

SLOTTING

Model No

BS-150
BS-250
BS-300

Get A Quote

Technical Specifications

Model	BS-150	BS-250	BS-300
Adjustable Stroke (mm)	10 to 150	10 to 250	10 to 300
Longitudinal Movement (mm)	200	230	300
Cross Movement (mm)	110	110	110
Speed adjustment (Speed)	3	3	3
Ram Adjustment (mm)	150	250	300
Motor (HP)	1	1.5	2
Column To RAM Distance (mm)	210	330	495
Table To RAM Distance (mm)	310	410	430
Table size (mm)	280x335	280x335	360x305
Machine Dimension (mm)	1050x550x1175	1150x600x1375	1250x700x1500
Machine weight (kg)	375	450	550

*Specifications are subject to changed without prior notice.

Accessories

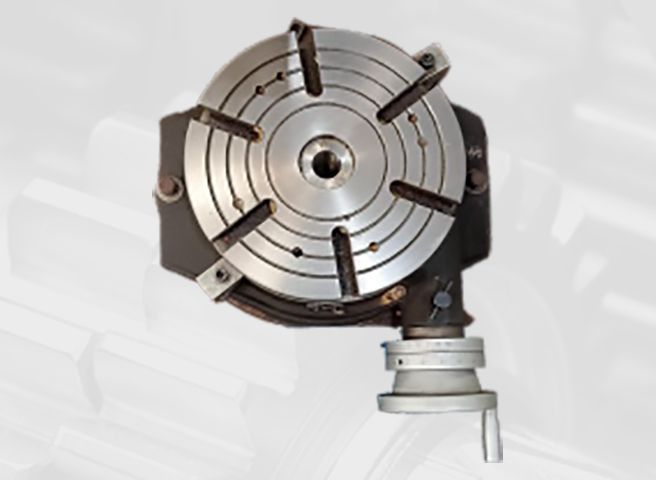

Rotary Table with 36:1 Ration (250mm)
Electric Motor

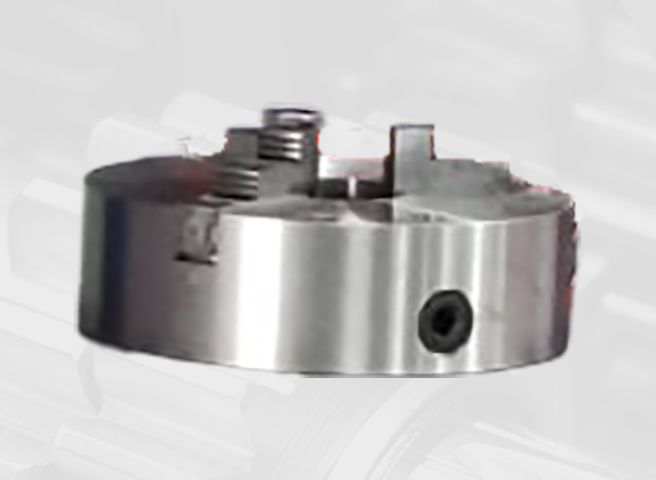

True Chuck

Switch
V-belt

Features

Rigid Construction hence smooth and Vibration free operation.
Fine grained castings and duly Seasoned.
All gears are Machine cut and Properly fitted.
