NC Front Cylinder Hydraulic Press Brake Machine (NCF Series)

PRESS BRAKE

Model No

30T
40T
63T
80T
100T
125T
160T

200T
250T
300T
400T
500T
600T
800T

Get A Quote

Technical Specifications

MODEL	Bending force	Worktable Length	Distance between Frame	Throat Depth	Maximum Stroke	Daylight	Speed(mm/s)			Motor Power	Dimension
	(KN)	(mm)	(mm)	(mm)	(mm)	(mm)	Approach Speed	Bending Speed	Return Speed	(kw)	LxWxH
30T/1600	300	1600	1200	200	80	295	180	12	140	3	2150x1250x1900
40T/1600	400	1600	1200	250	80	330	180	12	140	4	2100x1850x2100
40T/2000	400	2000	1500	250	80	330	180	12	140	4	2500x1850x2100
40T/2500	400	2500	2000	250	80	330	180	12	140	4	3050x1800×2200
63T/1600	630	1600	1200	310	110	345	180	12	140	5.5	2060x1600x2250
63T/2500	630	2500	2000	310	110	345	180	12	140	5.5	3050x1800x2300
63T/3200	630	3200	2600	310	110	345	180	12	140	5.5	3700x1800x2300
80T/2500	800	2500	2000	330	120	345	180	12	140	5.5	3050x1800x2300
80T/3200	800	3200	2600	330	120	345	180	12	140	5.5	3700x1800x2350
80T/4000	800	4000	3400	330	120	345	180	12	140	5.5	4500x1800x2400
100T/2500	1000	2500	2000	400	130	375	180	12	140	7.5	3050x1800x2450
100T/3200	1000	3200	2600	400	130	375	180	12	140	7.5	3700x1800x2450
100T/4000	1000	4000	3120	400	130	375	180	12	140	7.5	4500x1800x2450
125T/2500	1250	2500	2000	400	130	375	180	12	140	7.5	3050x1800x2550
125T/3200	1250	3200	2600	400	130	375	180	12	140	7.5	3700x1800x2550
125T/4000	1250	4000	3400	400	130	375	180	12	140	7.5	4500x1850x2550
130T/2500	1300	2500	2000	400	130	375	180	12	140	11	3050x1800x2550
160T/2500	1600	2500	2000	415	190	470	180	12	140	11	3050x1800x2650
160T/3200	1600	3200	2600	415	190	470	180	12	140	11	3700x1800x2650
160T/4000	1600	4000	3400	415	190	470	180	12	140	11	4500x1800x2650
160T/5000	1600	5000	4400	415	190	470	180	12	90	11	5500x1800x2650
160T/6000	1600	6000	5400	415	190	470	180	12	90	11	6500x1800x2650
200T/2500	2000	2500	2000	435	190	470	160	12	90	15	3050x1800x2750
200T/3200	2000	3200	2600	435	190	470	160	12	140	15	3700×1800x2750
200T/4000	2000	4000	3400	435	190	470	160	12	140	15	4500x1900x2750
200T/5000	2000	5000	4400	435	190	470	160	10	90	15	5500x1900x2750
200T/6000	2000	6000	5400	435	190	470	160	10	90	15	6500x1900x2750
250T/2500	2500	2500	2000	440	240	500	160	10	90	18.5	3050x1900x2960
250T/3200	2500	3200	2600	440	240	500	160	10	110	18.5	3700x1900x2950
250T/4000	2500	4000	3400	440	240	500	160	10	110	18.5	4500x1900x2950
250T/5000	2500	5000	4400	440	240	500	160	10	80	18.5	5500x1900x2950
250T/6000	2500	6000	5400	440	240	500	160	10	80	18.5	6500x1900x2950
300T/2500	3000	2500	2000	460	240	500	160	10	80	22	3050x2000x3300
300T/3200	3000	3200	2600	460	240	500	160	10	90	22	3700x2000x3300
300T/4000	3000	4000	3400	460	240	500	160	10	90	22	4500x2000x330
300T/5000	3000	5000	4400	460	240	500	160	10	90	22	5500x2000x3300
300T/6000	3000	6000	5400	460	240	500	160	10	90	22	6500x2000x3300
400T/2500	4000	2500	2000	480	290	520	120	10	80	30	3050x2000x3500
400T/3200	4000	3200	2600	480	290	520	120	10	80	30	3700x2000x3500
400T/4000	4000	4000	3400	480	290	520	120	10	90	30	4500x2000x3500
400T/5000	4000	5000	4400	480	290	520	120	10	90	30	5500x2000x3500
400T/6000	4000	6000	5400	480	290	520	120	10	90	30	6500x2000x3500
500T/4000	5000	4000	3400	500	300	550	120	8	80	37	4500x2000x3700
500T/5000	5000	5000	4400	500	300	550	120	8	80	37	5500x2000x3700
500T/6000	5000	6000	5400	500	300	560	120	8	80	37	6500x2000x3700
500T/8000	5000	8000	7100	500	300	550	120	8	80	37	8800x2000x3700
600T/3200	6000	3200	2600	500	310	580	90	8	80	45	3700x2200x4000
600T/4000	6000	4000	3400	520	310	580	90	8	80	45	4500x2200x4000
600T/5000	6000	5000	4400	520	310	580	90	8	80	45	5500x2200x4000
600T/6000	6000	6000	5400	520	310	580	90	8	80	45	6500x2200x4000
600T/7000	6000	7000	6400	520	310	580	90	8	80	45	7700x2200x4000
600T/8000	6000	8000	7100	520	310	580	90	8	80	45	8750x3550x2500
800T/3200	8000	3200	2600	540	320	600	90	8	80	55	3550x2550x3800
800T/4000	8000	4000	3400	540	320	600	90	8	80	55	4450x2550x3800
800T/6000	8000	6000	5400	540	320	600	90	8	80	55	6000x3600x2500
800T/8000	8000	8000	7100	540	320	600	90	8	80	55	9000x3800x2700

*Specifications are subject to changed without prior notice.

Accessories

Fast Clamp
Foot Pedal Switch

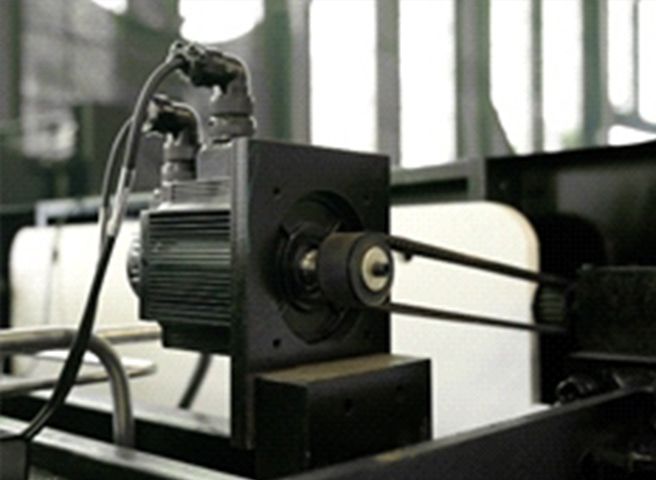

Y1 & Y2 Independent With Servo Motor
France Schneider Electric Controls
Germany Siemens Motor with Sunny Pump

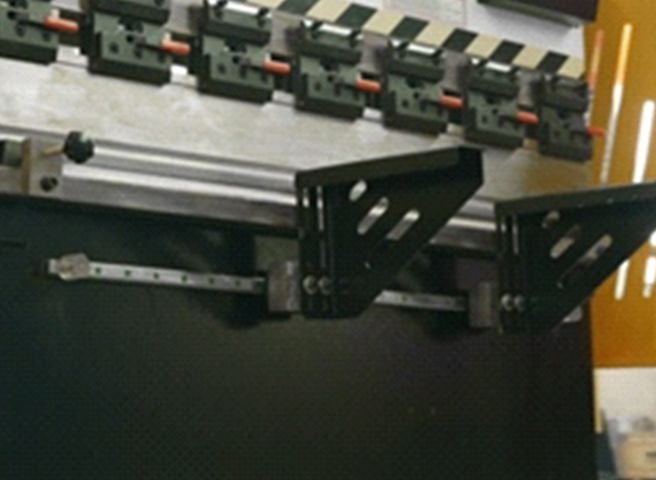

Front Material Support With LM Guide
Germany Bosch Rexroth Hydraulic System
Stop Finger With Double LM Guide

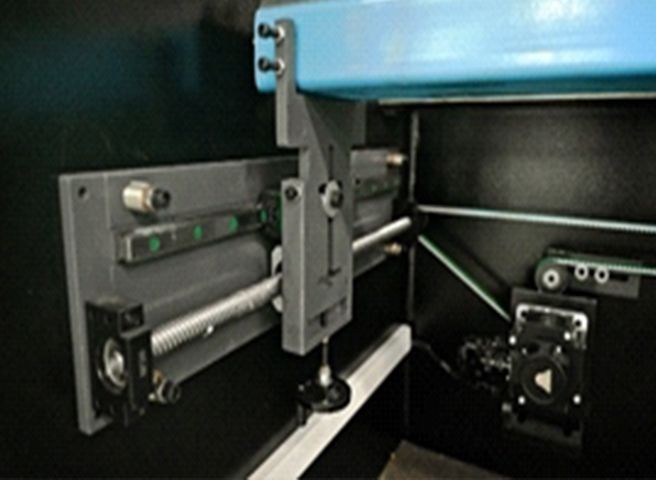

Backguage With LM Guides & Ball Screw

Features

Standard two axis control (Y, X)
Mechanical torque synchronization
Domestic famous hydraulic integrated system
Inverter control motor operation
Imported seals
Ball screw back gauge operation control
Standard upper and lower molds (upper inclined block type deection compensation)
