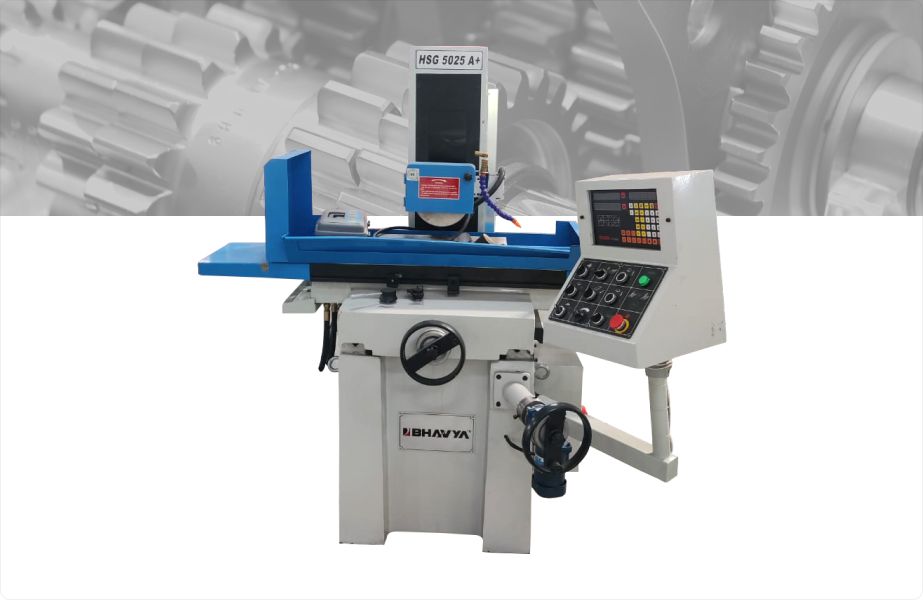

PLC OPERATED HYDRAULIC SURFACE GRINDER HSG5025A+PRO

HSG5025A+PRO

Model No

HSG5025A+ PRO
HSG6030A+ PRO
HSG8040A+ PRO

Get A Quote

Technical Specifications

Description	HSG5025A+ PRO
Size of worktable (W × L)	250 × 500 mm
Grinding Capacity (L × B × H)	500 × 250 × 330 mm
Longitudinal table travel	520 mm
Cross table travel	275 mm
Spindle centerline to table	65 – 400 mm
Safety load of bench (max)	100 kg
T-slot	12 × 1
Bench speed	3 – 23 m/min
Cross hand wheel graduation	0.02 mm
Cross hand wheel per revolution	3 mm
Wheel size (OD × B × ID)	200 × 16 × 31.75 mm
Grinding head rapid move speed	8 m/min
Spindle motor	1.1 kW
Spindle rotation speed	2850 r/min
Grinding head lifting servo motor power	1 kW
Front and back motor power	90 W
Oil pump motor power	0.75 kW
Workpiece surface roughness	Ra 0.63
Overall dimensions (L × B × H)	About 1550 × 1180 × 1840 mm

No	Name	Standard
1	Main body casting	HT250 Resin sand molding, aging treatment
2	PLC System	XINJIE
3	Motor Brand	BHAVYA
4	Feed Motor and Driver	BHAVYA
5	Sleeve-type High-Precision Spindle Assembly	GUYANG
6	Workbench Directional Control Hydraulic Valve	TAIWAN JUNCHUNG
7	Ball Screw Assembly	PMI / NANJING GONGYI
8	Bearing	HRB / NSK
9	Locking Nut	M20 × 1.5P SWIFT
10	Belt	BHAVYA

*Specifications are subject to changed without prior notice.

Accessories

No	Name	Specification	Qty	Mark
1	Cooling System	-	1 Set	-
2	Grinding Wheel and Chuck	200 × 16 × 31.75	1 Set	Installed on Machine
3	Iron Pad	HJ × 81－1	3 Sets	In Accessories Box
4	Balance Bar	-	1 Piece	In Accessories Box
5	Balance Block and Nut	M6 × 12	3 Sets	Installed on Machine
6	Iron Scrap Rake	-	1 Piece	In Accessories Box
7	Screwdriver	5“ (–), 5“ (+)	Each One	In Accessories Box
8	Flange Chuck Puller	-	1 Piece	In Accessories Box
9	Double-Ended Spanner	14	1 Piece	In Accessories Box
10	Foundation Nuts and Washer	M12 × 250, M12, φ12	3 Sets	In Accessories Box
11	Grinding Wheel Balance Bar	-	1 Piece	-
12	Dresser Holder	Without Diamond Pen	1 Piece	In Accessories Box
13	DRO	-	1 Set	Installed on Machine
