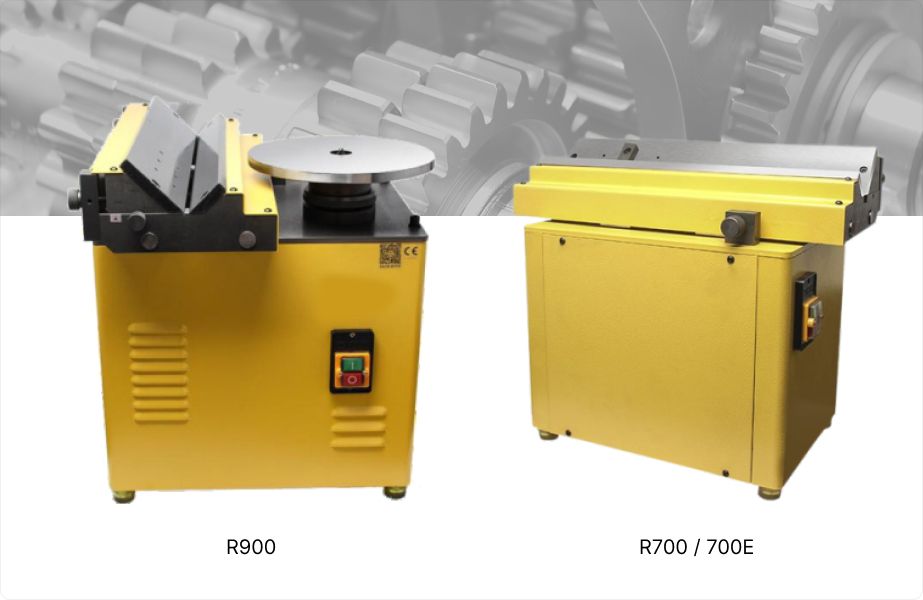

Slide Complex Chamfer

Model No

R700
R700E
R900

Technical Specifications

Model		R700	R700E	R900
Chamfering height	Straight line:	0-5mm	R1,R2,R3,R4,R5	0-5mm
	Curved:			0-2.5mm
Chamfering angle	Straight line angle:	45°	45°	45°
	Curved angle:			45°
Power		3/4HP(550W), 380V	380V, 550W	3/4HP (750W), 380V
Speed	Straight line:	8500rpm	8500rpm	8500rpm
	Curved:			12000rpm
Dimension		82x33x47cm	82x33x47cm	51×42×60cm
Weight		47kg	47kg	73kg
Standard Equipment		Inserts*1 set	Inserts*1 set	Inserts*2 sets 1 set for straight, 1 set for curved

*Specifications are subject to changed without prior notice.

Features

It is easy, quick to change the cutter, no need to clamp, easy operate, perfect chamfering, easy adjust, and economic, suitable for batch parts of machanism or mould.
In-house developed straight line bevel edge function can make 45° adjustment. Need no attire clamping, simplicity of operation, neat bevel edge, easy adjustment greatly enhance operation efficiency. This bevel machine is suitable for batch machine parts production, mold bevel edge. Using high-speed bevel machine is the current trend of the development of mechanical industry.
The machine adopt Swedish SKF bearing and imported digital cuttings.
