Electric Tapping Machines
Electric Tapping Machines

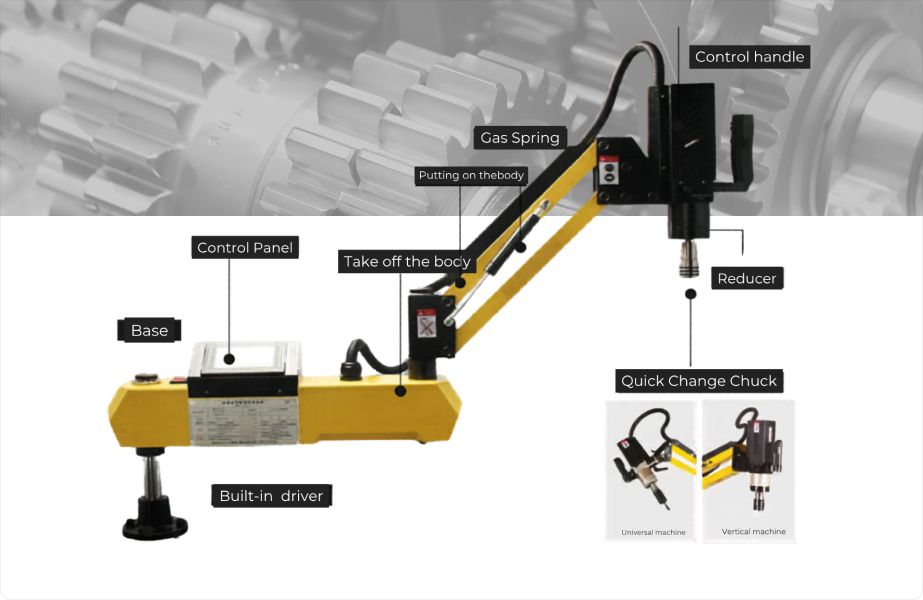

Vertical & Universal Head

Vertical & Universal Head
ELECTRIC TAPPING

Model No

  • DS12
  • DS16
  • DS30
  • DS36
  • DS48

Technical Specifications

Model DS12 DS16 DS30 DS36 DS48
Tapping Range M2-M12 M3-M16 M6-M30 M6-M36 M12-M48
Power 220V / 600W 220V / 600W 220V / 1200W 220V / 1200W 220V / 1200W
Speed 0-1000 rpm 0-312 rpm 0-120 rpm 0-120 rpm 0-90-200 rpm
Weight 27 kg 27 kg 45 kg 50 kg 150 kg

*Specifications are subject to changed without prior notice.

Accessories

  • Working Table
  • Magnetic Seats
  • Heavy Duty Working Table

Features

  • Repeated positioning fast, tapping speed, high production efficiency.
  • Step less speed change, manual, automatic, linkage three modes of work, whatever you choose.
  • Automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.
  • Advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non-deformation, beautiful appearance.
  • The machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.
  • The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy work piece, locate quickly, and process accurately.

Videos

Electric Tapping Machine (Model – DS 16 Vertical)

Electric Tapping Machine (Model – DS 16 Vertical)

Electric Tapping Machine (Model - DS 16 Universal)

Electric Tapping Machine (Model - DS 16 Universal)
