Description
Standard Accessories
- All Electrical Motors
- Drill Chuck
- Drill Chuck
- Box Table
- Arbour
- Drill Vice
Features
- Column, Arm, Work Head & Gears are made out of Closed Grain.
- Parts Properly Balanced Prior to Assembling of Main Gear & Pulley.
- Parts Finished on imported Grinding Machine.
- All moving parts Finished to close Tolerance.
- Spindle Ram is made out of Alloy Steel.
- Main Spindle & Pinion are Made out of EN Forged Steel.

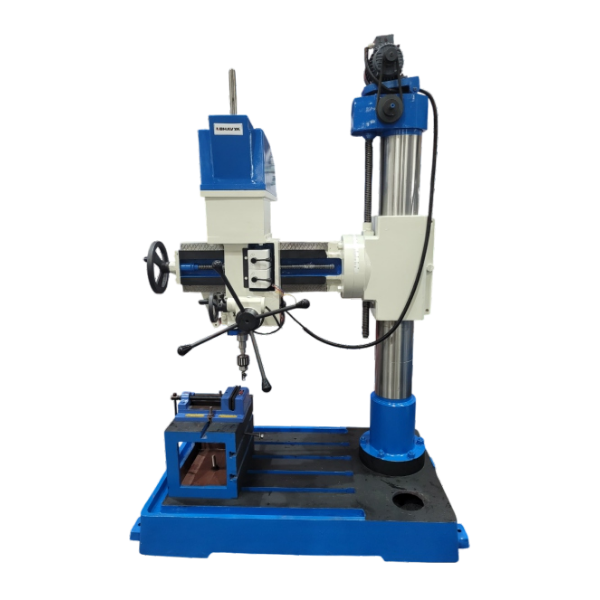

| Model | BR-38 | ||
| Capacity | Dist. From Spindle to base | 950 / 240 | |
| Drilling Capacity | 38mm | Dist. From Colum to Spindle | 740 / 360 |
| Column Diameter | 170mm | ELECTRICALS | |
| Spindle Nose | MT-4 | Drilling Head Motor (1440RPM) | 1.5 |
| Spindle Travel | 250mm | Lifting of arm Motor (1440 RPM) | 0.5 H.P |
| No. Of Spindle Speed | 8 | V-BELT Section | B-47 & B-24 |
| Spindle Speed (RPM) | 100-2125 | OTHERS | |
| Diameter of Ram | 78mm | Machine Measurement | 1240 x 750 x 2000 |
| WORKING RANGE | Size of box TABLE | 375 x 290 x 290 | |
| Max. Drilling Radius | 830 | Approx Weight Kg. | 800 |
*Specifications are subject to changed without prior notice.
