Description

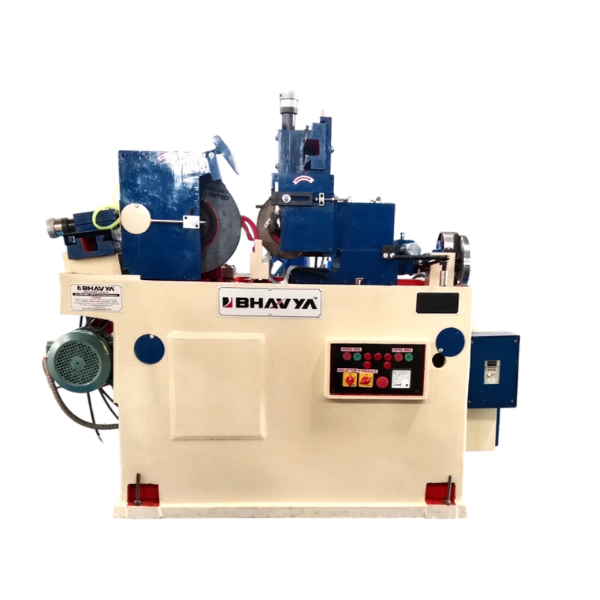

| Model | SL 75 |
| Grinding Range Diameter | 2-75mm |
| Grinding Wheel Size (OD x W x ID) | 350 x 100 x 127mm |
| Regulating Wheel Size (O x W x ID) | 225 x 100 x 76.2mm |
| Max. Length in In Feed Grinding | 100mm |
| Max. Length in Through Feed Grinding | 300mm |
| Grinding Wheel Speed | 1800rpm |
| Regulating Wheel Speed | 20-40-60rpm |
| Grinding Wheel Motor | 5 HP |
| Regulating Wheel Motor | 1 HP |
| Coolant Pump Motor | 0.15 HP |
| Hydraulic Power Pack (Dressing) | 0.5 HP |
| Regulating Wheel Angle Tilting | 5 Degree |
| Upper Slide Swiveling | 3 Degree |
| Approx. Weight | 1800kg |
| Approx. Dimensions (L x W x H) | 1850 x 1100 x 1600mm |
*Specifications are subject to changed without prior notice.
