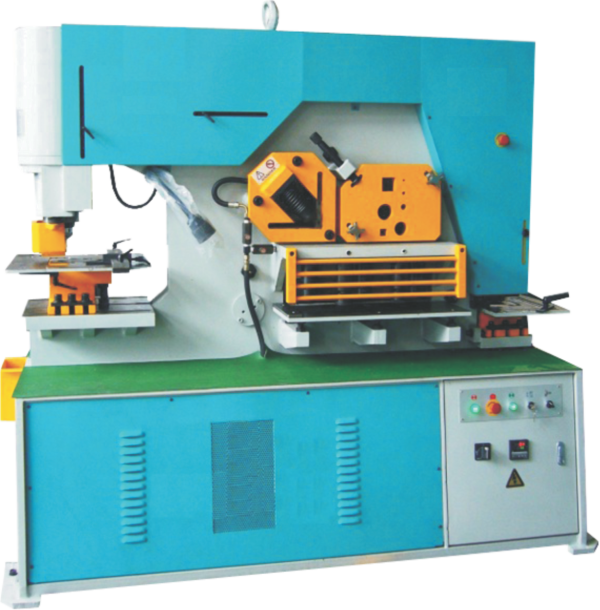

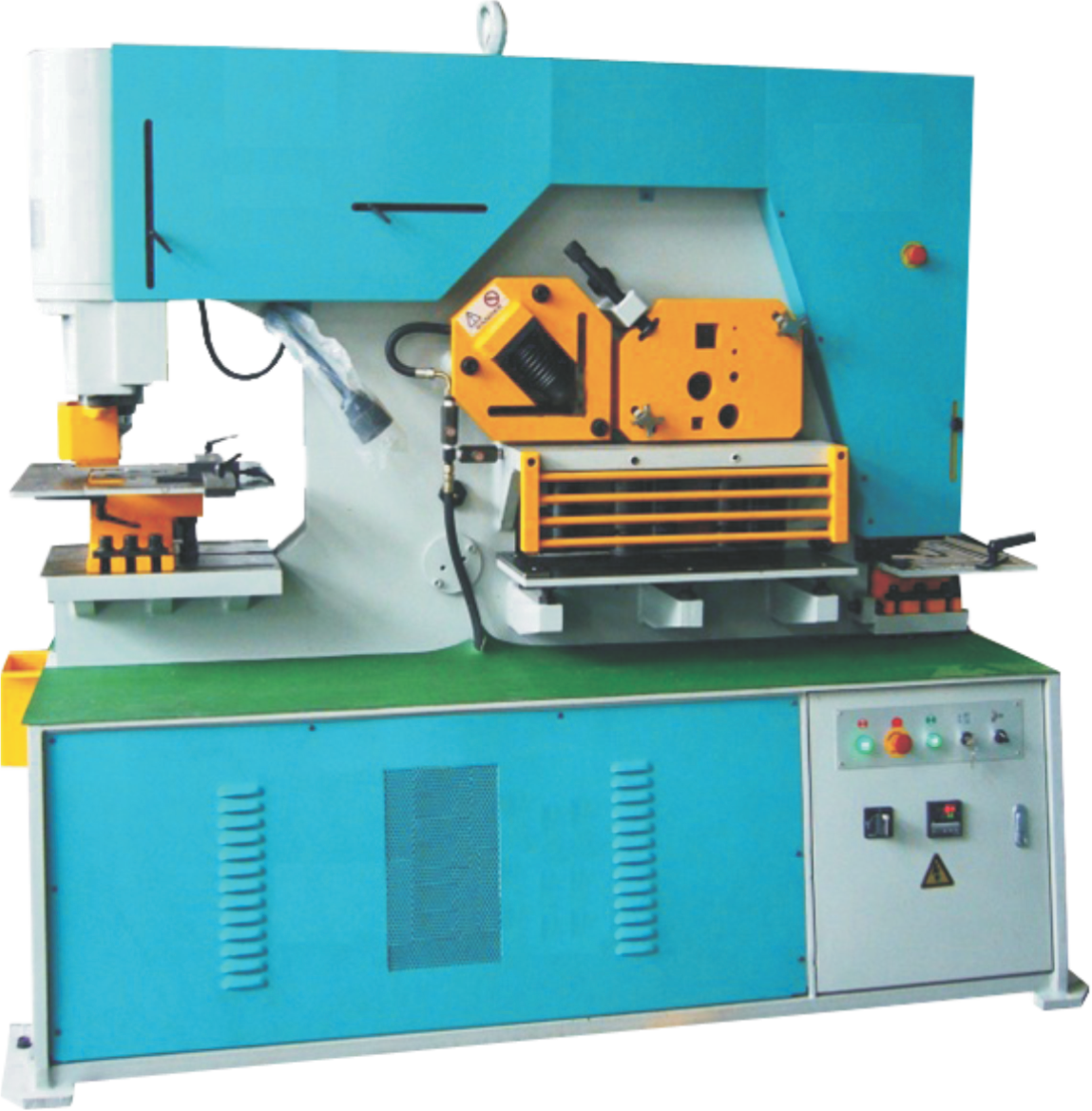

Hydraulic Iron Worker : IW-200L

3,125,000.00

  • Punching Pressure: 90 Ton
  • Punching Capacity : 30mm X 20mm (Dia x Thk)
  • Total Power : 5.5Kw

Quantity :

Share on:

SKU :- IW-200L Category :-

Specification

Specification

HYDRAULIC IRON WORKER Double Cylinder with Five Working Station Fitted with Foot Pedals for Separate Operation. The main Hydraulic Valve used YUKEN Japan International Brand. Main Electrical Components are used in Germany Schneider Electric Brand. About Limit Switch we use Omron proximity switches. Having Automatic Hold Down System for Angle Shearing & Plate Shearing and fitted with Oil Temperature Control Unit.

Standard Accessories

  • Round Punch & Die : 1 Set
  • Angle Shearing Blade : 1 Set
  • Flat Bar Shearing Blade : 1 Set
  • Rectangle Notch Blade : 1 Set
  • Round & Square Bar Shearing Blade : 1 Set
  • Foot Pedal : 1 Set
  • Working Light : 1 Pcs.
  • Standard Back Gauge : 1 Pcs.
  • Tool Box : 1 Set

Optional Accessories

  • Round Punch & Die (7mm to 50mm in 1mm Progression)
  • Special Punch & Die
  • Channel Shearing Blade
  • Joist Shearing Blade
  • H/I – Beam Shearing Blade
Model No IW-200L
Punching Pressure 200 Ton
Punching Capacity 40mm X 35mm (Dia x Thk)
Flat Shearing (Min/Max) 25 x 700/35 x 400mm (W x H)
Angle Shearing 200 x 200 x 18mm
Round Bar Shearing 70mm
Square Bar Shearing 60mm x 60mm
Total Power 15 Kw
