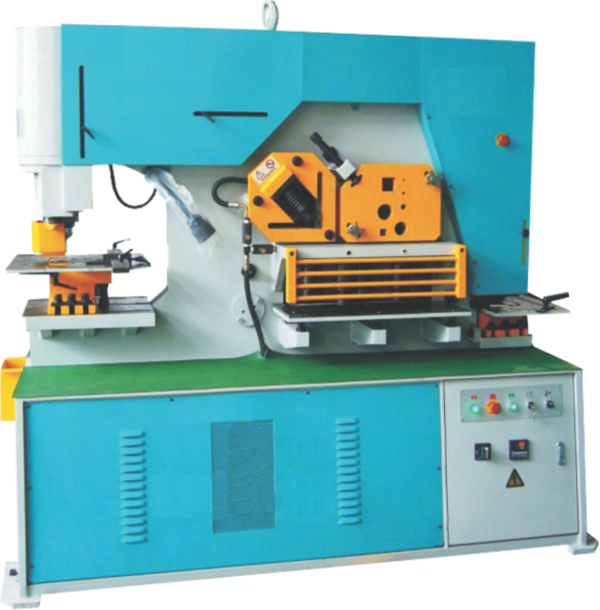

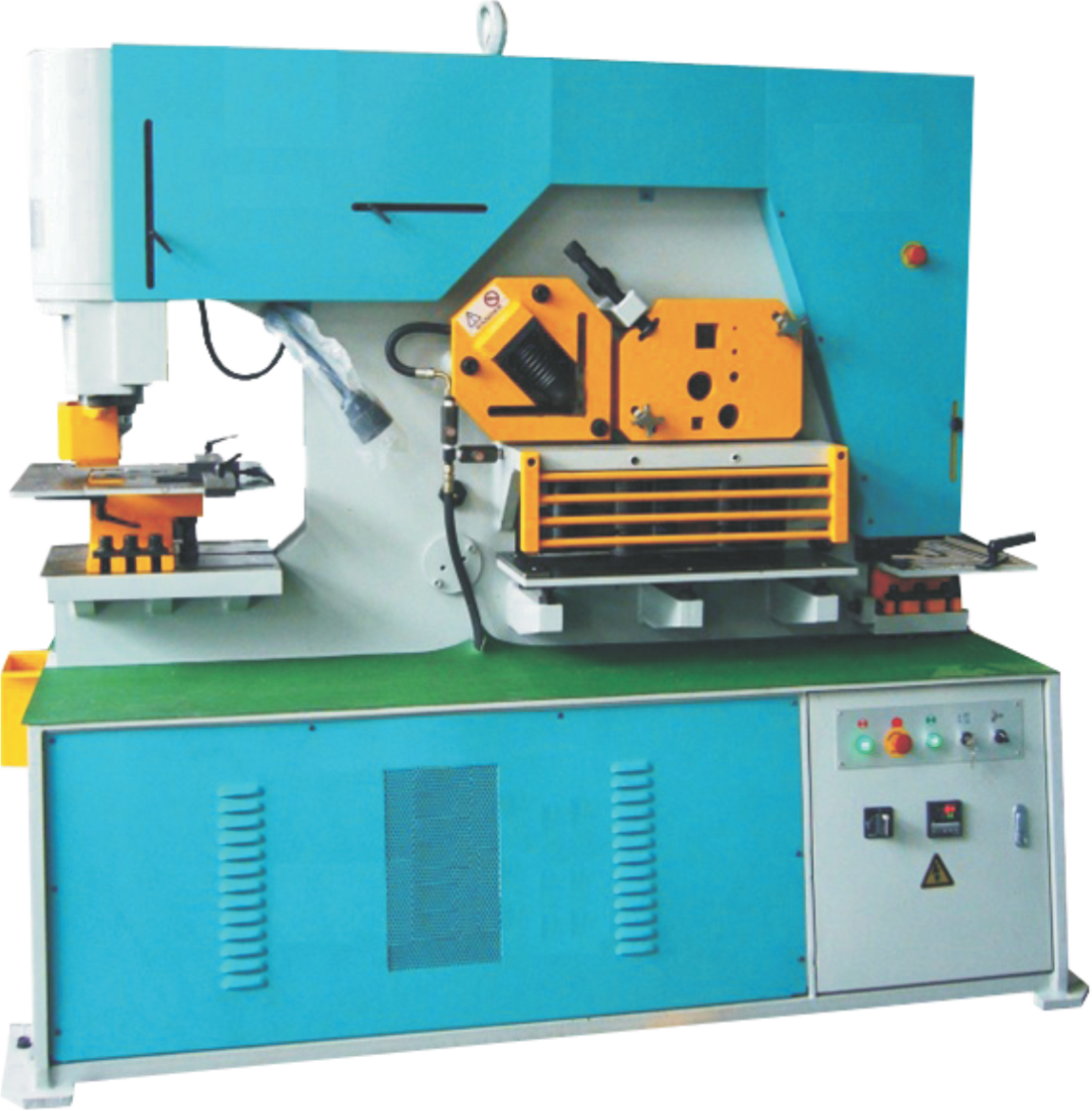

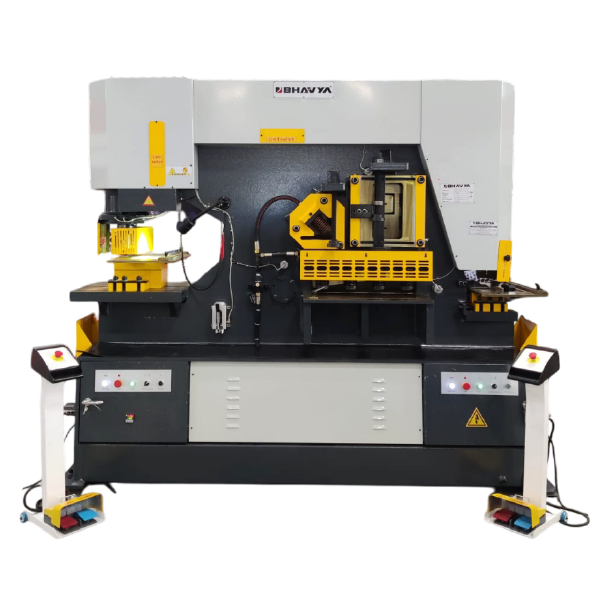

Hydraulic Iron Worker : IW-90L

1,105,000.00

  • Punching Pressure: 90 Ton
  • Punching Capacity : 30mm X 20mm (Dia x Thk)
  • Total Power : 5.5Kw

Quantity :

Share on:

SKU :- IW-90L Category :-

Specification

Specification

HYDRAULIC IRON WORKER Double Cylinder with Five Working Station Fitted with Foot Pedals for Separate Operation. The main Hydraulic Valve used YUKEN Japan International Brand. Main Electrical Components are used in Germany Schneider Electric Brand. About Limit Switch we use Omron proximity switches. Having Automatic Hold Down System for Angle Shearing & Plate Shearing and fitted with Oil Temperature Control Unit.

Standard Accessories :

  • Round Punch & Die : 1 Set
  • Angle Shearing Blade : 1 Set
  • Flat Bar Shearing Blade : 1 Set
  • Rectangle Notch Blade : 1 Set
  • Round & Square Bar Shearing Blade : 1 Set
  • Foot Pedal : 1 Set
  • Working Light : 1 Pcs.
  • Standard Back Gauge : 1 Pcs.
  • Tool Box : 1 Set

Optional Accessories :

  • Round Punch & Die (7mm to 50mm in 1mm Progression)
  • Special Punch & Die
  • Channel Shearing Blade
  • Joist Shearing Blade
  • H/I – Beam Shearing Blade
Model No IW-90L
Punching Pressure 90 Ton
Punching Capacity 30mm X 20mm (Dia x Thk)
Flat Shearing (Min/Max) 10 x 480/20 x 330mm (W x H)
Angle Shearing 140 x 140 x 12mm
Round Bar Shearing 50mm
Square Bar Shearing 45mm x 45mm
Total Power 5.5 Kw
