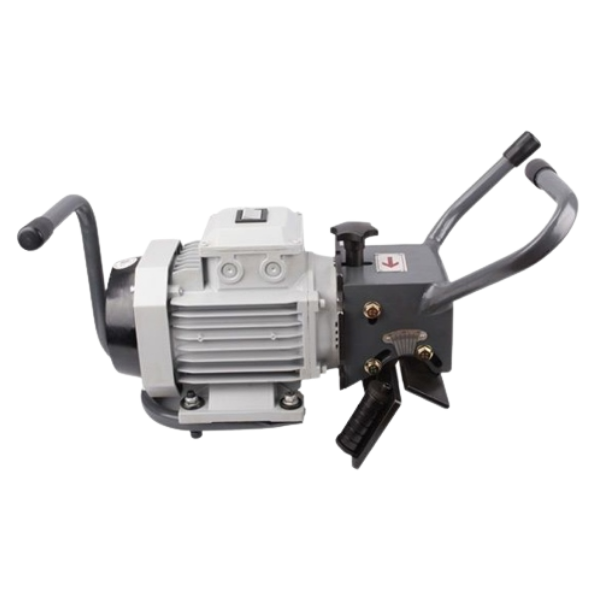

Portable Plate Beveling SKF-15

₹67,500.00 – ₹122,500.00

Applying to make untreatment parts of machine, mould shelf which is not easy to move. It is convenient and easy to operate.
It is easy to replace stand tungsten steel quadrilateral edge (413051), andcan use an old cutter.
It is accurate and with perfect surface.

Notice：The Max. chamfer is 2mm to 3mm everytime.

SKU: R200A Category: Portable Chamfer

Description

It is user-friendly, accurate, safe and save molding time. The surfaceof theworkpiece is smooth and flat. It is designed for making the mould productsbeautiful.
The machine is designed reasonably, easy to move, and equippedwithsafety button. No fault, no vibration, low noise, less dust. Low cost of power saving, standard chip for cutting, easy to replace.

Model	SKF-15
Max cutting edge width	15mm (adjustable)
Chamfering angle	30° – 60° (adjustable)
Power	380V, 50Hz,1.1kw
Speed	2870 r/min
Weight	18kg
Standard Equipment	Two butterfly type milling cutters, each with 6highspeedcarbon steel embedded milling cutters
