Description

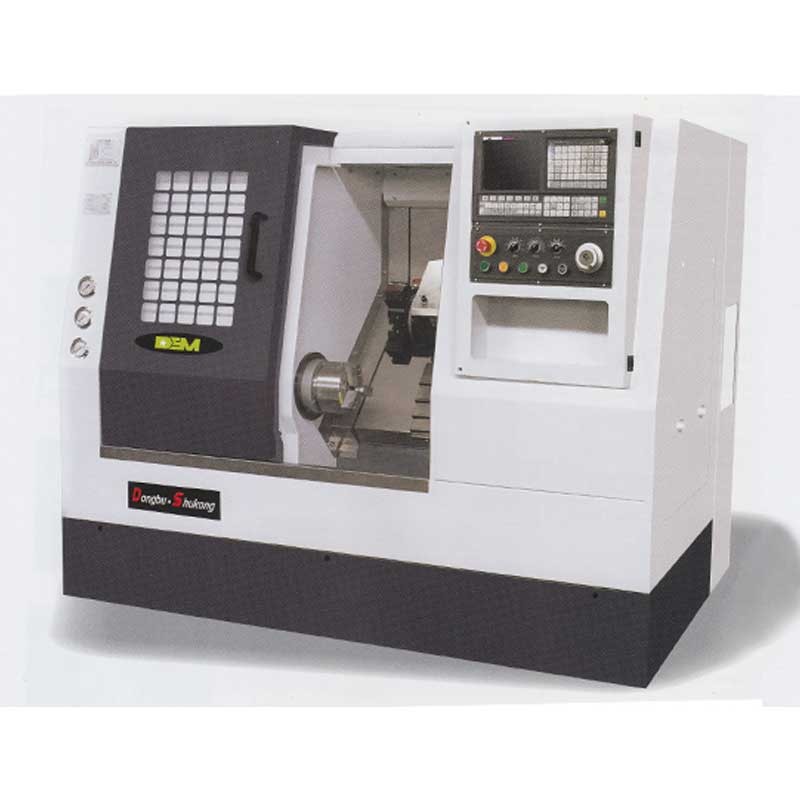

Model
|
C320K TT
|
| Maximum Swing Over Bed |
Ø 320mm |
| Maximum Swing Over Solid |
Ø 140mm |
| Maximum Machining Length with Hydraulic Chuck |
245mm |
| Maximum Machining Length with Collect (Optional) |
250mm |
| Collect OD/ID (Optional) |
Ø 56/48mm |
| Spindle Taper Hole |
Ø 52mm |
| Maximum Bar Diameter with Hydraulic through Chunk |
Ø 38mm |
| Spindle Head Type |
A2-5 |
| Spindle Speed Range |
60-5000rpm |
| Spindle Shift Mode |
Servo |
| Spindle Rated Torque |
24Nm |
| Main Moto Power |
3.7Kw |
| Spindle Moto Maximum Speed Range(30 Min) |
5.5Kw |

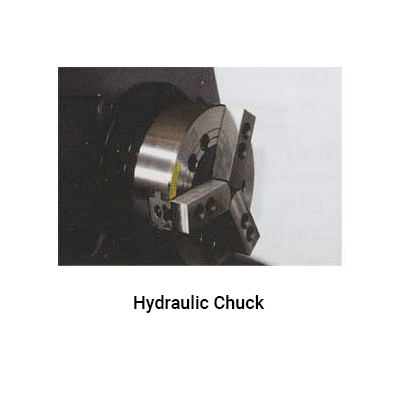

| Chunk Type |
Hydraulic Solid (AUTOGRIP-Taiwan) |
| Chunk Size |
Ø 160mm |
| Rapid Traverse Speed on X Axis |
12m/min |
| Rapid Traverse Speed on Z Axis |
15m/min |
| Servo Motor Torque on X Axis |
6Nm |
| Servo Motor Torque on Z Axis |
6Nm |
| X Axis Travel |
170mm |
| Z Axis Travel |
310mm |

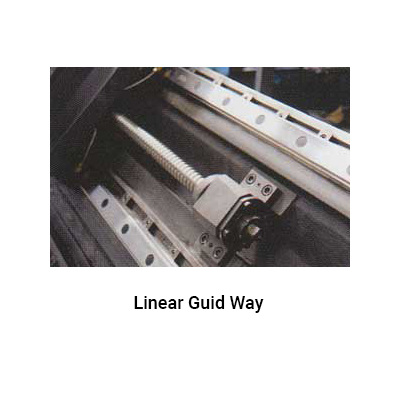

| Guide Way Type |
Linear Guide Way (PMI Taiwan) |

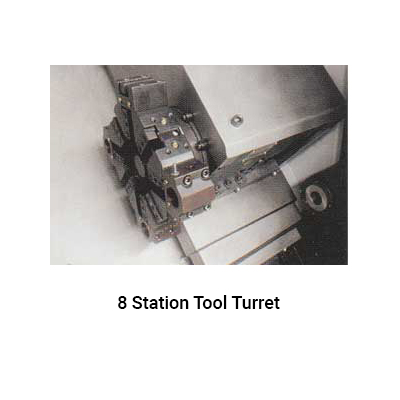

| Turret Type |
8 – Station Electric Tool Turret (PRAGATI) |
| Tool Change Time |
45° / 0.17Sec. |
| Turning Tool / Boring Bar Size |
20 x 20mm / Ø25mm |

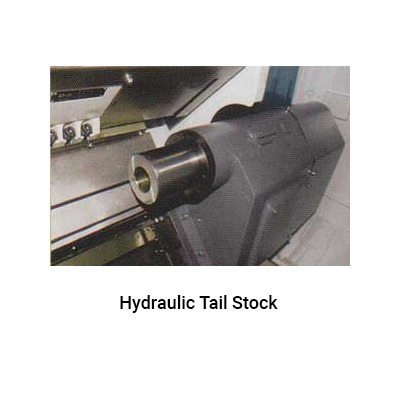

| Tail stock Type |
Hydraulic |
| Tail stock Sleeve Diameter/Travel |
065/7Omm |
| Tail Stock Sleeve Taper |
MT4 |
| Chips Conveyor (Optional) |
Hinge Belt |
| Weight |
1800KG |
| Dimension |
1650*1250*1650mm |
Sileant Features
- Single Spindle Structure with High Accurate Bearing Provide High Speed and prevent it from deformation when overheat.
- 45 Degree Slant Bed Structure with Liner Guide Way highly increases the accuracy and stability.

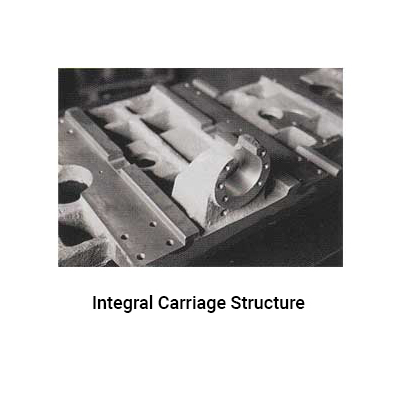

- Integral Motor and Guide Way design ensure the Accuracy that may effect by Installation.
- Integral Sealed protection protects all Electric Device from Water, Oil and Metal Shavings.
- High Accurate Collets provides more protection for the surface of work piece when machining and durable for repeat clamping, also easy To disassemble.
Standard Accessories
160mm-Hydraulic Solid True Chuck, Without Tail Stock, Coolant System, 8-Station Tool Turret, Lubrication System
Optional Accessories
| Hydraulic Hollow Chuck-160mm |
25,000.00 |
| Chip Conveyor |
90,000.00 |
