Description
Standard Accessories
- GSK/SIEMENS Controller System
- Manual Chuck
- Manual Tail Stock
- Auto lubricating System
- Working lamp
- Coolant System

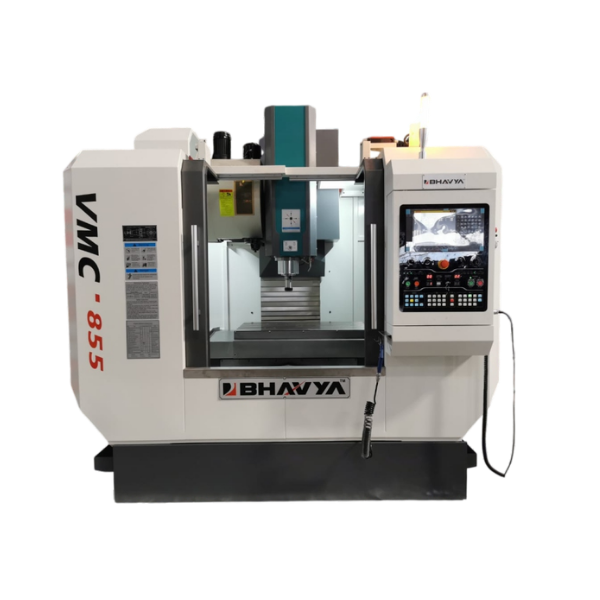

Vertical Machining Center Characteristics
- High quality resin sand castings
- Taiwan spindle
- Taiwan ball screw and locking nut
- Taiwan tool cylinder
- NSK bearings
- Automatic lubrication system
- Chip conveyor, 4th axis, 5th axis etc are optional.
| Model | Unit | VMC640 | ||
| X/Y/Z-Axis Travel | mm | 600 / 400 / 400 | ||
| Distance From Spindle Nose To Table | mm | 120 – 520 | ||
| Distance From Spindle Center To Column Guideway | mm | 450 mm | ||
| Spindle Motor Power | kW | 5.5/7.5 | ||
| Spindle Speed | rpm | 10000 | ||
| Spindle Taper | – | BT40 (Φ120) | ||
| Positioning Accuracy | mm/300mm | ±0.003 mm | ||
| Repeatability Accuracy | mm/300mm | ±0.0015 | ||
| Working Table Size | mm | 700 × 400 | ||
| Max. Working Table Load Capacity | kg | 350 kg | ||
| T-Slot Qty-Width-Distance | mm | 4 – 14 – 100 | ||
| X/Y/Z-Axis Rapid Feed Speed | m/min | 24 / 24 / 24 | ||
| Feed Speed | mm/min | 1 – 10000 | ||
| Dia. Of X/Y/Z-Axis Ball Screw | mm | Φ32 | ||
| X/Y/Z Axis Servo Motor Power | kW | 2.0 / 2.0 / 3.0 | ||
| Linear Guideway Width And Type / Qty / Block Qty | X-Axis | 30 Ball / 2 / 4 | ||
| Y-Axis | 30 Ball / 2 / 4 | |||
| Z-Axis | 30 Ball / 2 / 4 | |||
| Controller | FANUC / Siemens / GSK / Mitsubishi | |||
| Tool Magazine | Type | Arm 16 Tools | ||
| Max. Power Consumption | kVA | 11 | ||
| Net Weight (Approx) | Ton | 2.9 | ||
| Overall Dimensions | mm | 2230 × 2240 × 2450 | ||
*Specifications are subject to changed without prior notice.
