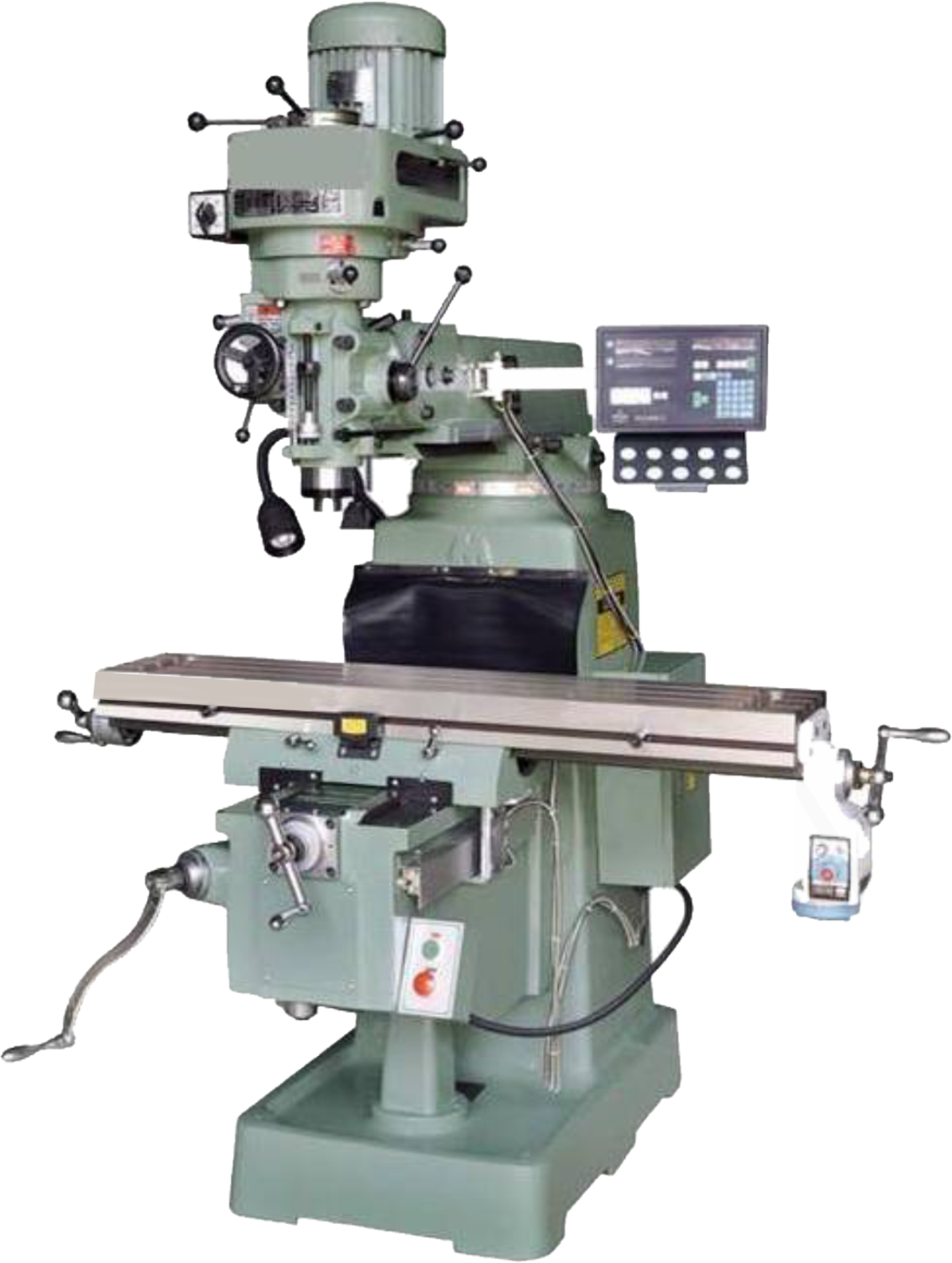

Vertical Turret Milling Machine : M4A

430,000.00

  • Table size: 1370mmx 254mm
  • T-Slot: 3 x 16 mm
  • Quill Travel : 127
  • Ram Travel : 580 mm
  • Spindle Speed :70-4620 RPM
  • Quill Feed :0.04,0.08,0.15
  • Main motor power : 3
SKU: M4A Category:

Description

Specification

Model   M4A
Table size   1370mmx 254mm
T-Slot   3 x 16mm
  X-Axis 860mm
Travel Y-Axis 400mm
  Z- Axis 405mm
  X-Axis
Guide Way Y-Axis
  Z- Axis
Ram Travel   580mm
Spindle Taper   R8(NT30-Optional)
Quill Travel   127
Spindle Nose to Table   0-440mm
Head Tilt   90 Deg Forward and back,left & right
Speed Step Number   16
Spindle Speed   70-4620RPM
Quill Feed   0.04,0.08,0.15
Power   3HP
