4-in-1 Fiber Laser Welding Machine

Laser Welding

Model No

Technical Specifications

MODEL	FLW
Power	1.5/2/3 KW
Laser Type	Fiber laser
Center wavelength	1080nm ±5
Max Output Energy	1500/2000/3000 W
Laser frequency	50Hz-5KHz
Welding Head	Ray Tools
Wire Feeder	Auto Wire Feeder
Laser Head	Woble Welding Gun With Feeder
Power Consumption	10/14/16KW
Fiber Cable length	8m
Fiber Core Diameter	50μm
Rated Power	380±20% V AC, 50/60Hz (1KW)
Cooling Method	Water Chiller
Net Weight	95/95/160kg

*Specifications are subject to changed without prior notice.

Accessories

At least 4 times faster than TIG/MIG
More beautiful weld seams
No limitation to welding materials and shapes
Simple operation, no need for professional welders
No follow-up process that may be caused by traditional welding

Features

Wire feeder
The handheld nozzle travel (With screw)
Wire feeding mouth
Fixed attachment of wire feeding mouth (With screw)
Power line (With plug)

Feeding ON/OFF switch (With plug)
Model and internal corner feeding nozzle
Welding nozzle
Protective Lens

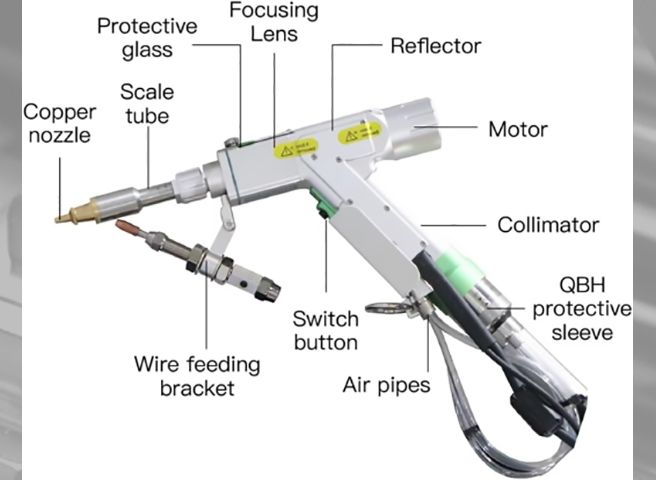

Laser welding head
Water Chiller In Built
Nozzle set 4-IN-1
