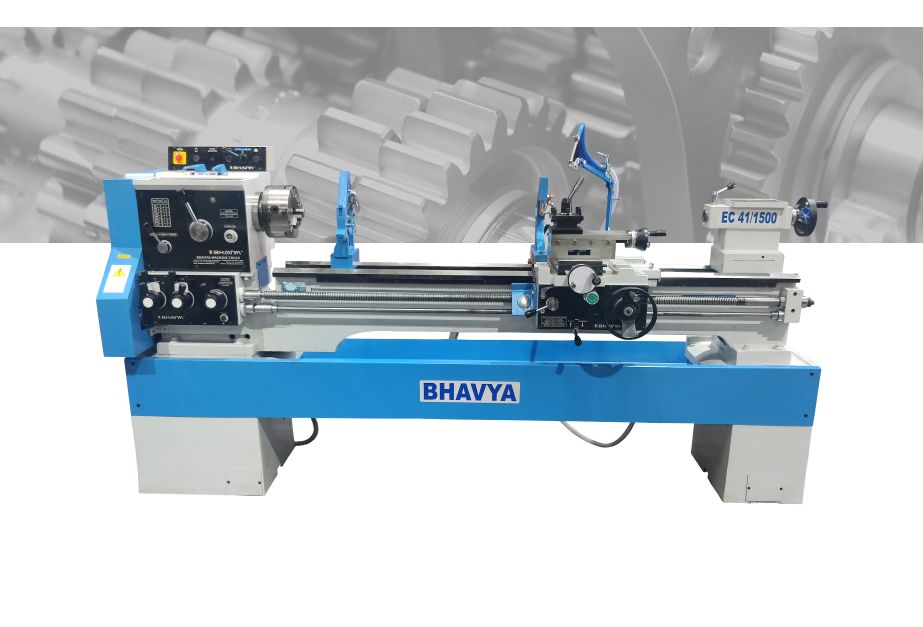

All Geared Medium Duty Lathe (EC Series)

All Geared Medium Duty Lathe (EC Series)

High Tensile

Casting

Head Stock

Latest Design

Bed & Spindle are

Hardended & Ground

LATHE

Model No

EC34/555
EC34/1000
EC41/1000
EC41/1500

Get A Quote

Technical Specifications

Model No	EC34/555	EC34/1000	EC41/1000	EC41/1500
Height For Centers	177 mm	177 mm	215 mm	215 mm
Swing Over Bed	335 mm	335 mm	410 mm	410 mm
Swing Over Slide	200 mm	200 mm	250 mm	250 mm
Between Centres	555 mm	1000 mm	1000 mm	1000 mm
Slide Movement	210 mm	210 mm	250 mm	250 mm
BED
Bed Type	2 Flat & 2V	2 Flat & 2V	2 Flat & 2V	2 Flat & 2V
Bed Width	230 mm	230 mm	265 mm	265 mm
Main Spindle
Type & Sun Of Spindle Nose	A 2 Size 4	A 2 Size 4	A 2 Size 4	A 2 Size 4
Taper Bore In Center Sleeve	MT4	MT4	MT4	MT4
Spindle Bore	42 mm	42 mm	42 mm	42 mm
Tail Stock
Spindle Diameter	45 mm	45 mm	45 mm	45 mm
Taper Bore In Spindle Sleeve	MT4	MT4	MT4	MT4
Speeds
No. Of Speeds	16	16	16	16
Range/RPM	45-938/30-1250 RPM	45-938/30-1250 RPM	45-938/30-1250 RPM	45-938/30-1250 RPM
Electricals
Main Motor	2 KW	2 KW	3 KW	3 KW
Power Supply	3-Phase	3-Phase	3-Phase	3-Phase
Other Data
Gross Weight	800 Kg	900 Kg	1200 Kg	1300 Kg

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Electric Motor
V Belts
2 MT Centers
Center Bush
Oil Can
Screw Driver

Set of Fixed Spanners
Set of Allen Keys
Tool Post Spanner
Carrier Plate
Instruction & Spare Parts Manual

Optional :

Face Plate
Steady Rest
Follow Rest
Rapid Traverse of Main Saddle
Chuck Flange

Independent Dog Chuck
Electric Coolant Pump with Tank & Fittings
Taper Turning Attachment
Machine Lamp with Control Transformer

Features

Lathe Bed Is Of Grade-20 Casting, Duly Flame Hardened & Ground With Brinell
Hardness Over 300 Bhn Headstock Spindle A2/4 Mounting Is Hardened And Ground And Runs In Anti Friction Taper Roller Bearings
Drop Worm Arrangement For Instantaneous Engagement And Disengagement Of Power Feed
Shear Pin Coupling As An Overload Safety Device For Lead Screw
Safety Clutch For Feed Overload
Universal Gear Box Provides For Wide Range Of Inch/ Mm Threads & Feeds
Accuracy Is Tested As Per Is: 1878 (Part - 1) 1971

Photo Gallery

EC34x540

EC41x1000

EC41x1500

Videos

All Geared Medium Duty Lathe (EC34/540)

All Geared Medium Duty Lathe (EC41/1000)
