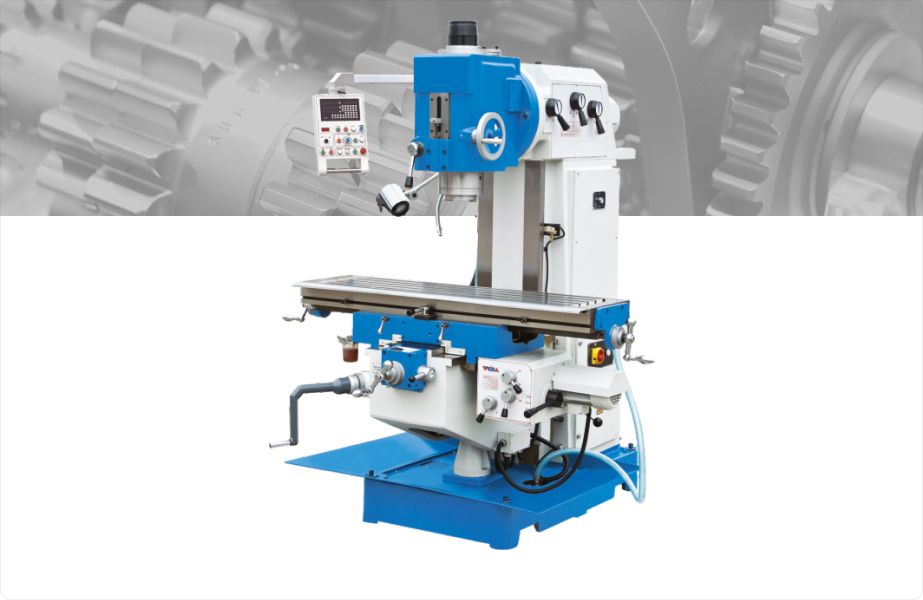

All-Geared Vertical Milling Machine (EVM1332)

All-Geared Vertical Milling Machine (EVM1332)

MILLING

Model No

EVM-1332
EVM-1536

Get A Quote

Technical Specifications

Model	EVM-1332	EVM-1536
Table Size	1320x320mm	1500x360mm
Number/Width/Distance of T-Slot	5-14-63mm	3-18-80mm
Max. Load of Table	300kg	300kg
Longitudinal Travel	1000mm	1100mm
Transverse Travel	300mm	300mm
Vertical Travel	400mm	380mm
Cutting Feed Speed (X/Y) mm/min	8/20-360	8/22-555
Cutting Feed Speed (Z) mm/min	1-400	1-590
Rapid Feed Speed (X/Y) mm/min	1200/1200/400	1200/1100/600
Spindle Nose To Table Distance (mm)	35/435mm	60/440mm
Dist. From Spindle Axis to Vertical Guideway	360mm	320mm
Spindle Taper	ISO-50	ISO-50
Spindle Travel	70mm	70mm
Spindle Speed Range	58-1710rpm	60-1700rpm
Spindle Speed Step	12 steps	12 steps
Max. Swivel Angle of Spindle	± 35°	± 35°
Spindle Motor Power	4kw	4kw
Overall Dimension (mm)	2020x1820x1880	2200x1820x1880
Machine Weight	2300kg	2400kg

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Draw Bar
Coolant System
Swivel
Mill Chuck

Lamp
Chippan
(150mm) Vice

Optional :

Boring Head
Rotary Table Horizontal & Vertical (With Indexing Device)

Angle Plate
3 Axis DRO for X, Y, Z Axis

Photo Gallery

Auto Feed Gear Box

Vertical Speed Separate Gear Box

Control Panel with DRO

Box Guide Way

Lubrication Pump

EVM 1332

Videos

All Geared Vertical Head Milling Machine

All Geared Vertical Head Milling Machine Model EVM 1332
