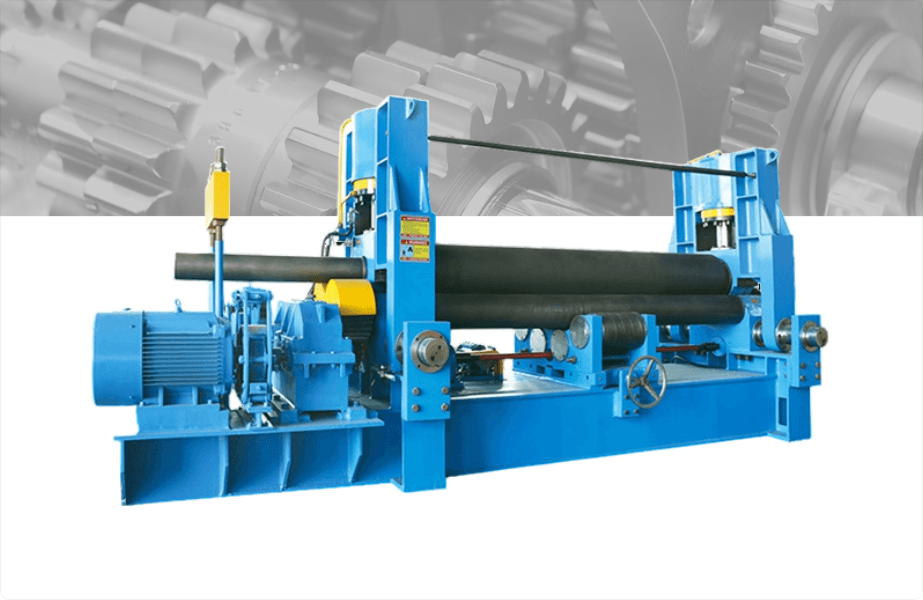

3 Roller Plate Rolling Machine (With Prebending Function)

Plate Rolling Machine Manufacturer, Exporter & Supplier in India

3 Roll Pyramid Type Mechanical Plate Bending Machine

The PBM series 3 Roll Pyramid Type Mechanical Plate bending are designed to cater the basic requirements of bending & forming of metal plates. In this machine, the bottom rolls are driven by electric motor & gear box. The upper roll is having manual up & down adjustment to achieve desired bending radius. This is a very simple & robust design machine suitable for light to medium jobs.

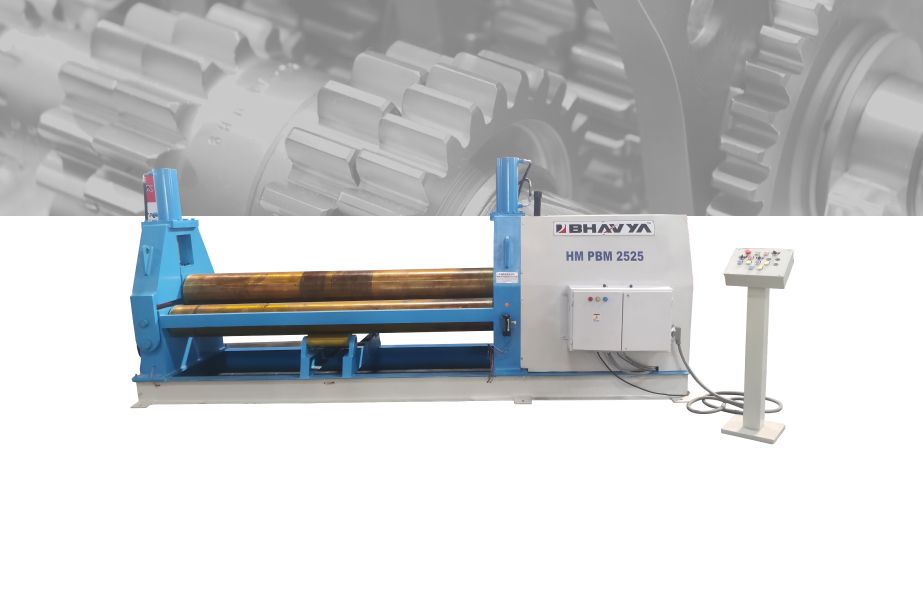

3 Roll Pyramid Type Hydro-Mechanical Plate Bending

The PBM Series 3 Roll Pyramid Type Hydro Mechanical Plate Bending Machines are designed with top roll UP & DOWN movement by hydraulic cylinder. This saves time & labor to adjust top roll. This feature makes the machine more productive and suitable for handling heavy jobs. Dropper end movement is done by hydraulic cylinder.

3 Roll Plate Bending Hydro-Mechanical Double Pre-Pinch

The PBM DP series 3 ROLL PYRAMID TYPE HYDRO-MECHANICAL PLATE BENDING are designed with double side pre-pinching arrangement. The unique design permits the pre-pinching of job by both bottom rolls; hence the job is completed in single operation. This feature makes the machine more productive and suitable for handling heavy jobs. The top roller is fixed and pre-pinching by both bottom rolls are thru hydraulic cylinders.

Pyramid Type Bending Roller

Bottom roll are fixed and driven by Gears and warm Reduction Gear Box. Top Roll rotates in fixed positions andean be adjusted up & down manually by adjustable screws.

FAQs

A 3-roller plate rolling machine uses three rolls - typically two bottom rolls and one adjustable top roll - to bend the plate into a curved or cylindrical shape, though this configuration can sometimes leave a small flat, un-rolled section at each end of the plate that may require secondary finishing. A 4-roller plate rolling machine adds an additional roll specifically to pre-bend both ends of the plate before the main rolling pass, which produces a more complete, uniform cylindrical shape with minimal flat spots remaining at the edges. This makes 4-roller machines generally preferred for applications where a fully rounded, edge-to-edge curve is important, such as pressure vessel or tank shell fabrication. 3-roller machines remain a cost-effective and widely used option for general plate rolling work where minor flat ends are acceptable or can be trimmed. Bhavya Machine Tools offers both configurations to match different quality and budget requirements.

A mechanical plate bending machine, such as Bhavya's PBM Series, drives the bottom rolls with an electric motor and gearbox while the top roll is adjusted manually via screws to achieve the desired bending radius - a simple, robust design well suited to light to medium bending jobs. A hydro-mechanical plate bending machine instead uses hydraulic cylinders to move the top roll up and down, which saves significant time and labour compared to manual adjustment and makes the machine considerably more productive, especially for handling heavier plate jobs. The dropper end movement in hydro-mechanical models is also typically hydraulically actuated, further reducing manual effort during setup and operation. For workshops regularly handling thicker or heavier plate, the hydro-mechanical option generally pays for itself through faster changeovers and reduced operator fatigue. Bhavya Machine Tools offers both types so buyers can match the machine to their typical plate thickness and production pace.

Double pre-pinching, a feature found in Bhavya Machine Tools' Hydro-Mechanical Double Pre-Pinching Plate Bending Machine (DP PBM Series), allows both bottom rolls to pre-pinch - or pre-bend - the plate simultaneously through hydraulic cylinders, rather than requiring the plate to be flipped and re-fed for a second pre-bending pass. This design completes what would otherwise be a two-step pre-bending process in a single operation, significantly improving productivity, especially for heavy plate work where handling and repositioning large sheets is time-consuming and labour-intensive. In this configuration, the top roller remains fixed while pre-pinching is achieved entirely through the coordinated movement of both bottom rolls. This makes the DP PBM series particularly well suited to industrial applications like pressure vessel and tank manufacturing, where consistent, efficient pre-bending on both ends of thick plate is essential. It represents one of the more advanced options within Bhavya Machine Tools' plate rolling range.

A pyramid type bending roller is a plate rolling machine configuration where the bottom rolls are fixed in position and driven by gears and a worm reduction gearbox, while the top roll rotates in a fixed position but can be adjusted up and down manually via adjustable screws. This design is used to roll flat metal plates into curved or cylindrical shapes and is generally valued for its simplicity, robustness, and reliability for standard plate rolling tasks. Bhavya Machine Tools' Pyramid Type Bending Roller (BBR Series) follows this classic configuration, making it a dependable choice for workshops that don't require the added productivity features of hydro-mechanical adjustment. It's often a good entry point into plate rolling for smaller fabrication shops due to its straightforward mechanical operation and lower relative cost. For higher-volume or heavier plate work, upgrading to a hydro-mechanical model may offer better long-term efficiency.

Plate bending capacity varies significantly depending on the specific machine model, roll diameter, and whether it's a mechanical or hydro-mechanical design, so there isn't a single universal thickness figure that applies across all plate rolling machines. Bhavya Machine Tools offers a range of models - from lighter-duty mechanical PBM series machines suited to thinner plate, up to hydro-mechanical and double pre-pinching machines built for heavier industrial plate work. To get an accurate capacity match for your application, share your typical plate thickness, width, and material type (such as mild steel or stainless steel) with their sales team. Choosing a machine with adequate capacity margin above your heaviest typical job helps avoid bottlenecks in production. Contact inquiry@bhavyamachinetools.com with your specifications for a tailored recommendation.

Bhavya Machine Tools, based in Ahmedabad, India, manufactures a wide range of plate rolling machines designed to cater to different bending and forming needs for metal plates. Their lineup includes the Pyramid Type Bending Roller (BBR Series), 3-roller and 4-roller plate rolling machines, and both mechanical and hydro-mechanical PBM series models, including a double pre-pinching variant for heavy-duty work. This range allows Bhavya Machine Tools to serve light to medium job shops as well as heavy industrial fabricators needing to roll thick steel plate into cylindrical shapes. Each machine is engineered under the guidance of skilled personnel using quality-certified raw materials to meet industry performance standards. Bhavya Machine Tools also exports its plate rolling machines to numerous international markets alongside domestic supply across India.

A 3-in-1 combination roll, brake, and shear machine combines plate rolling, bending, and shearing functions into a single compact unit, which is particularly valuable for smaller workshops that need to roll, bend, and cut sheet metal but don't have the floor space or budget to invest in three separate dedicated machines. This kind of machine allows an operator to shear a sheet to the required size, bend it to a specific angle, and roll it into a curved or cylindrical form, all using one piece of equipment. While a 3-in-1 machine typically won't match the maximum capacity, speed, or precision of dedicated single-function machines at scale, it offers strong versatility for lower-volume, varied fabrication work. Bhavya Machine Tools' 3-in-1 Combination Roll, Brake & Shear is designed specifically to bring this flexibility to space- and budget-conscious workshops. It's a practical option for shops handling diverse, smaller-batch fabrication jobs.

For heavy industrial jobs, hydro-mechanical plate bending machines - particularly the double pre-pinching (DP PBM) series - are generally the best fit, since their hydraulic top roll adjustment and simultaneous double pre-pinching capability significantly reduce manual labour and setup time when handling thick, heavy plate. These machines are engineered to maintain productivity even as plate thickness and job complexity increase, which is critical in applications like pressure vessel, tank, and heavy equipment fabrication. Standard hydro-mechanical (HM PBM) machines without the double pre-pinching feature are also a strong option for heavy work that doesn't require the added end-bending efficiency. Mechanical PBM series and pyramid type bending rollers remain better suited to lighter to medium-duty applications rather than heavy industrial use. Bhavya Machine Tools can help match the right model based on your typical plate weight, thickness, and production volume.

Bhavya Machine Tools manufactures and supplies plate rolling machines directly to fabrication workshops across India from its Ahmedabad-based facility, and also serves international customers through export. Contact our sales team at Email: inquiry@bhavyamachinetools.com or call +91-9825009216 to discuss your typical plate thickness, width, and production volume so they can recommend whether a mechanical, hydro-mechanical, or double pre-pinching model best suits your needs. A showroom near Ahmedabad, Gujarat, is available for buyers who want to inspect machines in person before purchasing. Their team has experience matching plate rolling machine specifications to a wide range of industrial fabrication requirements. Reach out with your specific plate dimensions for an accurate model recommendation.

Yes, Bhavya Machine Tools exports its plate rolling machine range to the UAE, Saudi Arabia, Iraq, Qatar, Dubai, Oman, Kuwait, Yemen, Bahrain, and other countries around the world. Their international branch in Dubai, UAE, provides local support and service for customers in the region, which is particularly valuable for heavy industrial machinery like plate rolling equipment that may require periodic maintenance or spare parts. This global reach has helped Bhavya Machine Tools build a track record supplying plate rolling machines to heavy fabrication and manufacturing industries internationally. If you're based outside India, it's a good idea to confirm delivery timelines and local servicing arrangements directly with their nearest regional office. Full contact information for all their branches is available on the Bhavya Machine Tools website.
