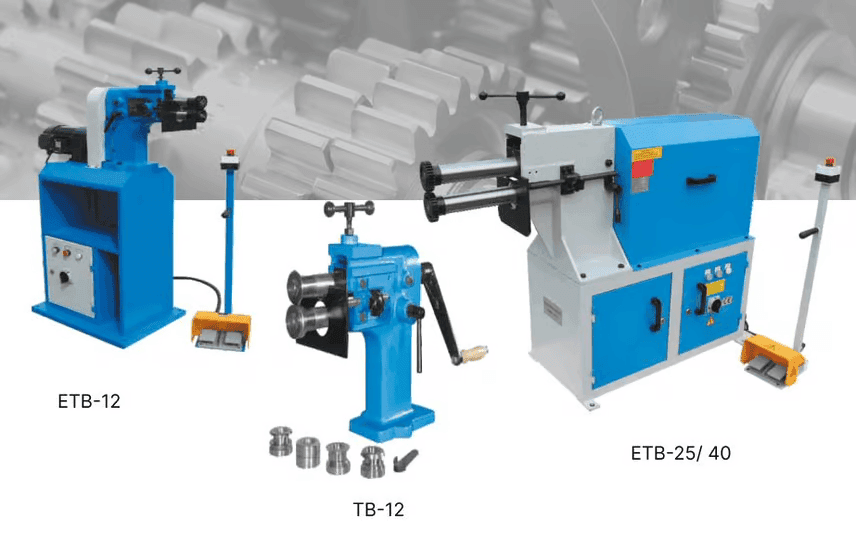

Bead Bending Machine

SHEET METAL

Model No

TB-12
ETB-12
ETB-25
ETB-40

Get A Quote

Technical Specifications

Model	TB-12	ETB-12	ETB-25	ETB-40
Thickness Max.	1.2mm	1.2mm	2.5mm	4mm
Cylinder Length	140mm	140mm	120mm	165mm
Throat Depth	200mm	200mm	280mm	300mm
Cylinder Speed	-	32rpm	20rpm	15.3rpm
Motor Power	-	1HP	2HP	3HP
Net Weight	48kg	120kg	235kg	341kg
Packing Size	670x320x600mm	1100x480x1480mm	1470x580x1350mm	1650x580x1400mm

*Specifications are subject to changed without prior notice.

Features

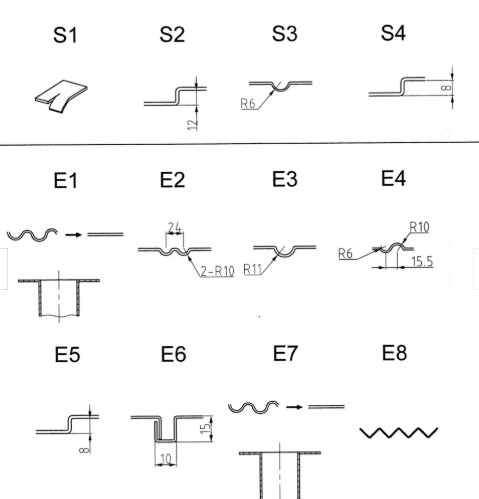

4 sets standard rollers.
Special steel adjustable.
Heavy and solid cast iron construction.
