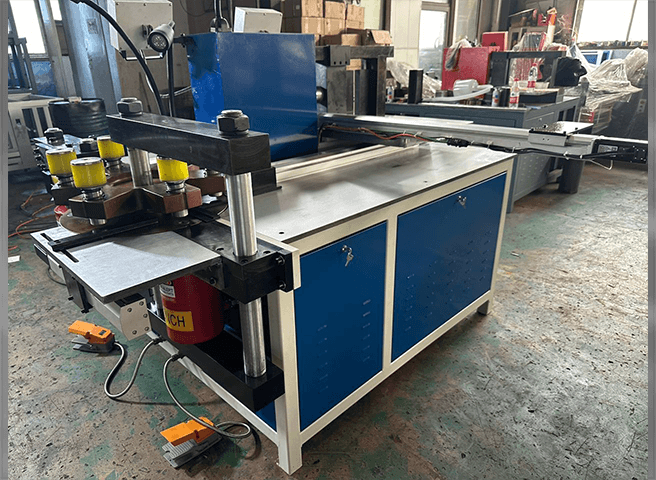

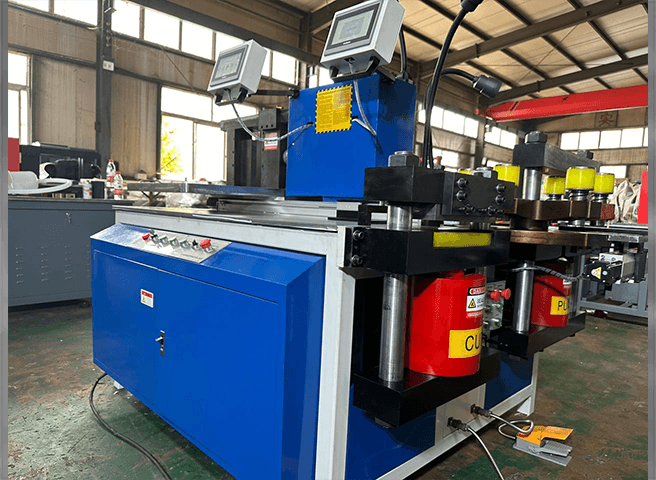

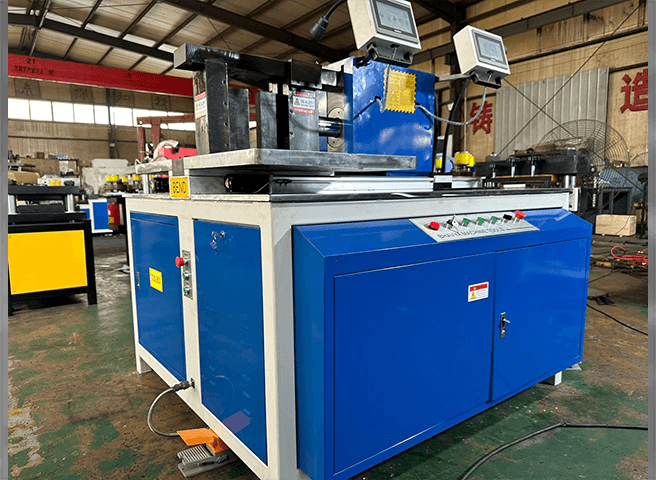

Bus Bar Machines - Pro Max

BUS BAR

Model No

BB - 50NC Pro Max
BB - 80NC Pro Max

Get A Quote

Technical Specifications

Model		BB-50NC PROMAX	BB-80NC PROMAX
Punching	Max. Punching Force (KN)	500	800
	Punching Diameter Range (MM)	04.3-034	04.3-034
	Max. Thickness (MM)	16	20
	Max. Width (MM)	250	300
Shearing/Cutting	Max. Shearing Thickness (MM)	16	20
Shearing/Cutting	Max. Shearing Width (MM)	250	300
Vertical Bending	Max. Bending Force (KN)	500	800
	Max. Thickness (MM)	16	20
	Max. Width (MM)	250	300
Horizontal Bending	Max. Width (MM)	120	250
	Max. Angle (Degree)	90°	90°
	Max. Thickness (MM)	16	20
Out Dimension	Out Dimension	195015601390	206016001560
Power	Power	3 x 5.5kw	3 x 7.5kw
CNC Precision	Bending Precision	±1°	±1°
CNC Precision	Repeat Bending Precision	±0.3°	±0.3°

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Main Drive Motor.
Separate Foot Switch For Each Station.
Eight Suitable Die & Punch On Punching Station.
Unhardened & Ungrounded Suitable Bending Tool.
Hardened & Grounded HCHCr Blade on Shearing Station.

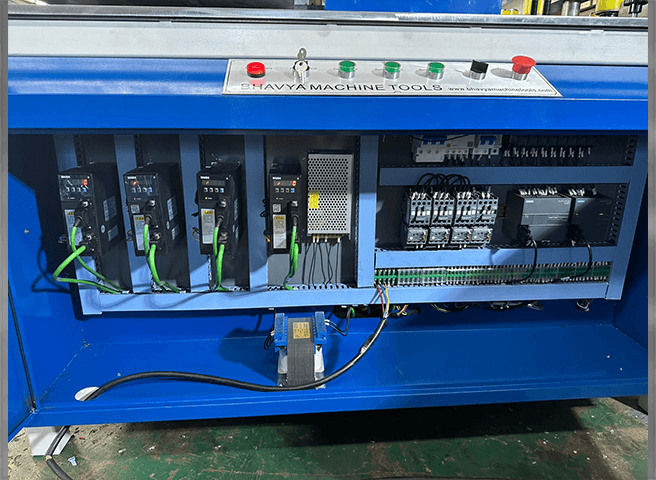

Compact Hydraulic Power Pack With Built In Control Panel.
Cutting, Bending & Punching All Station Servo.

Optional :

First Fill Of Oil.
High Speed Version.
Special Tools For Bending Station.
Special Tools For Punching Station.

Features

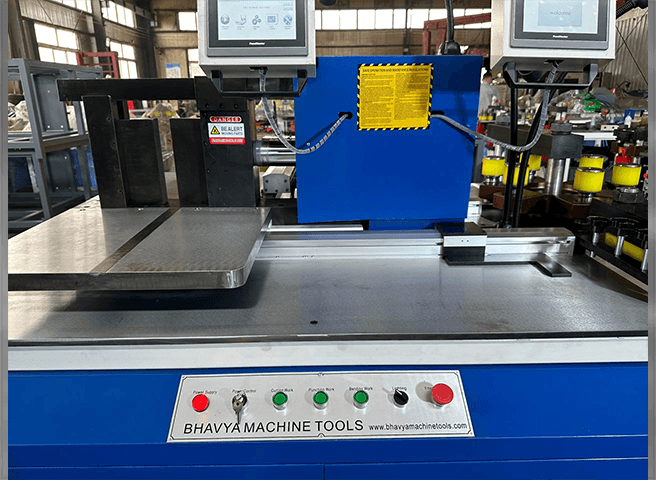

3PLC Control System with 3 Touch Screen HMI.
This Is A Highly Productive Machine Suiting To Growing Demand Of Industries.
International Quality Hydraulic & Electrical Components Ensure Maintenance Free Long Life.
The Bus Bar Bending, Cutting & Punching Unit Machine Is Technologically Advanced, Compact & Versatile Machine.
The Machine Is Designed To Cater The Requirement Of Bus Bar Preparation & Almost All Operations Are Included in One Machine.
The Machine Is Equipped With Three Different & Independent Stations For All These Stations Work Parallel To Contribute High Productivity Of Machine.
