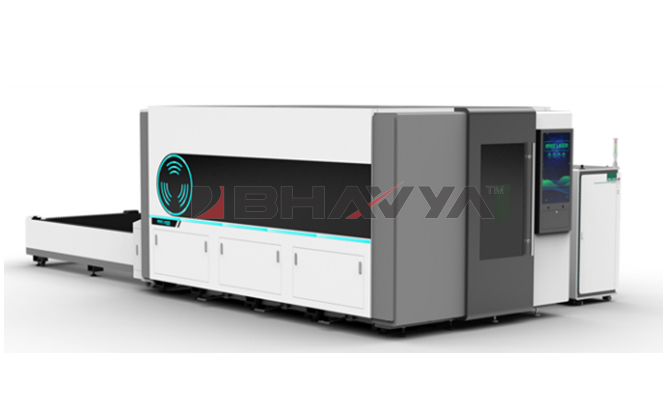

Casting Body With Enclosure & Pallet Changer

Model: P -Series
Model OR-P3015 OR-P4020 OR-P6020 OR-P6025
Working size 3080*1530mm 4080*2030mm 6080*2030mm 2530×6080mm
X-Axis Stroke 1500mm 2000mm 2000mm 2500mm
Y-Axis Stroke 3000mm 4000mm 6000mm 6000mm
Z-Axis Stroke 120mm
X/Y Axis positional accurancy ±0.02mm
X/Y Axis repeat positional accurancye ±0.03mm
X/Y Axis max moving speed 140m/min
Max accelaration 1.5G
X Axis motor powern 0.85kw colspan="2"0.85kw(<3000W) 1.3kw(≥3000W) 1.3kw
Y Axis motor power 1.3kw 1.8kw(<3000W) 2.9kw(≥3000W) 2.9kw
Z Axis motor power 0.4kw 0.75kw
Maximum load of working platform 800kg 1600kg 2400kg 3000kg
Rail X Taiwan Brand
Y Taiwan Brand
Z Taiwan Brand
Rack Taiwan APEX/YYC
Reducer French MOTOREDUCER
Machine bed Cast iron machine bed
Beam Aviation aluminum Cast aluminum
Controller Cypcut
Input 380V/50-60Hz
Limitation Japan Omron
Electric component French Schneider
Pneumatic component SMC/AirTAC
Servo motor Japan YASKAWA
Lubrication Automatic
Water chiller Tongfei
Exhaust fan 3kw
source power is available 1000W,1500W,2000W,3000W,4000W,6000W
Total power 1000W laser source 17kw
1500W laser source 19kw
2000W laser source 23kw
3000W laser cource 28kw
4000W laser cource 30kw
6000W laser cource 36.5kw
Size: lenght*width*height 7960*2600*2400 10000*3400*2400 14000*3400*2400 14580*3925*2400
Weight 7000kg 11000kg 15500kg 18000kg
