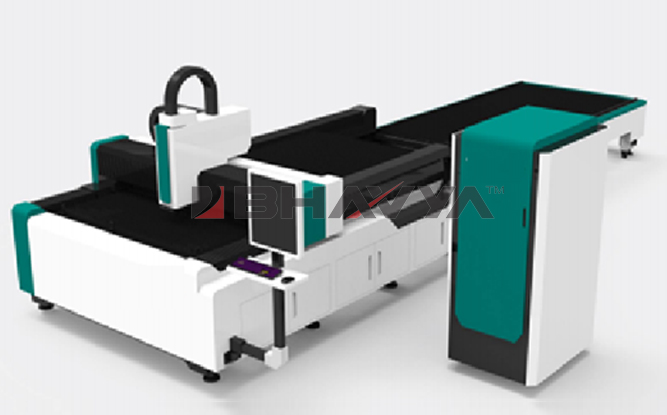

Casting Body With Pallet Changer

Model: E -Series
Model OR-E3015 OR-E4020 OR-E6020
Working size 3080*1530mmm 4080*2030mm 6080*2030mm
X-Axis Stroke 1500mm 2000mm 2000mm
Y-Axis Stroke 3000mm 4000mm 6000mm
Z-Axis Stroke 120mm
X/Y Axis positional accurancy ±0.02mm
X/Y Axis repeat positional accurancye ±0.03mm
X/Y Axis max moving speed 140m/min
Max accelaration 1.5G
X Axis motor powern 0.85kw 0.85kw(<3000W) 1.3kw(≥3000W) 1.3kw
Y Axis motor power 1.3kw 1.8kw(<3000W) 2.9kw(≥3000W) 2.9kw
Z Axis motor power 0.4kw
Maximum load of working platform 800kg 1600kg 2400kg
Rail X Taiwan Brand
Y Taiwan Brand
Z Taiwan Brand
Rack Taiwan APEX/YYC
Reducer French MOTOREDUCER
Machine bed Cast iron machine bed
Beam Aviation aluminum
Controller Cypcut
Input 380V/50-60Hz
Limitation Japan Omron
Electric component French Schneider
Pneumatic component SMC/AirTAC
Servo motor Japan YASKAWA
Lubrication Automatic
Water chiller Tongfei
Exhaust fan 3kw
source power is available 1000W,1500W,2000W,3000W,4000W,6000W
Total power 1000W laser source 17kw
1500W laser source 19kw
2000W laser source 23kw
3000W laser cource 28kw
4000W laser cource 30kw
6000W laser cource 36.5kw
Size: lenght*width*height 7660*2280*2000 9840*3140*2000 13840*3140*2000
Weight 6000kg 10000kg 14000kg
