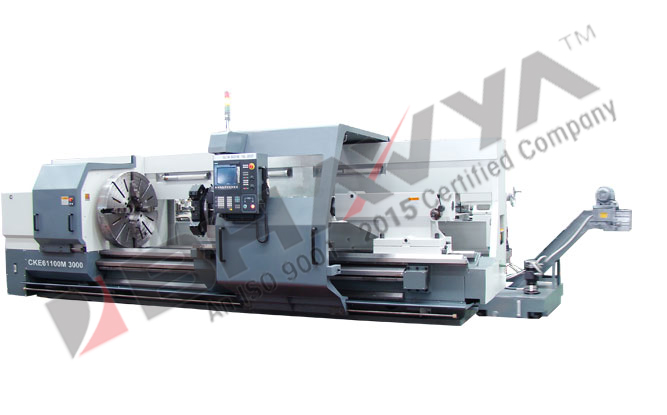

CKE Series Flat Bed CNC Lathe (CKE61100M-CKE61125M)

Model : CKE61100M, CKE61125M
CKE Series Flat Bed CNC Lathe (CKE61100M-CKE61125M)
Models CKE61100M CKE61125M
Max. Swing Over Bed 1000mm 1250mm
Max. Swing over Slide 630mm 880mm
Max. Length of Work 1500/2000/3000/4000/5000/6000/8000mm 1500/2000/3000/4000/5000/6000/8000mm
Width of Bed 750mm 750mm
Travel /Rapid
X Travel 520mm 640mm
Z Travel 1500 - 8000mm 1500 - 8000mm
Rapid traverse (X-Axis) 6m/min 6m/min
Rapid traverse (Z-Axis) 8m/min 8m/min
Spindle Nose A2-15 A2-15
Chuck size 0800mm 0800mm
Taper of Spindle bore 1:20 1:20
Spindle Bore 130mm 130mm
Spindle Speed - Frequency Motor (Servo Motor in 1-Series) 3 - 315rpm 3 - 315rpm
Steps of spindle speed 3 - Step Actuator 3 - Step Actuator
Motor Power 22/26kW 22/26kW
Tool Post
Repeatability of tool post 0.008mm 0.008mm
Vertical 4-position Toolpost changing time 4.0 Sec 4.0 Sec
Horizontal 6-position Toolpost changing time
Tail Stock
Diameter of tailstock quill 200mm 200mm
Travel of tailstock quill 300mm 300mm
Taper of tailstock quill MT-6 MT-6
Weight & Dimensions
Net weight 13.5/14/15/16/17/18/20Ton 14.5/15/16/17/18/19/21Ton
Dimensions (Length x Width x Height) 600mm
1500mm 6320 x 2300 x 2200mm 6320 x 2300 x 2200mm
2000mm 6820 x 2300 x 2200mm 6820 x 2300 x 2200mm
3000mm 7820 x 2300 x 2200mm 7820 x 2300 x 2200mm
