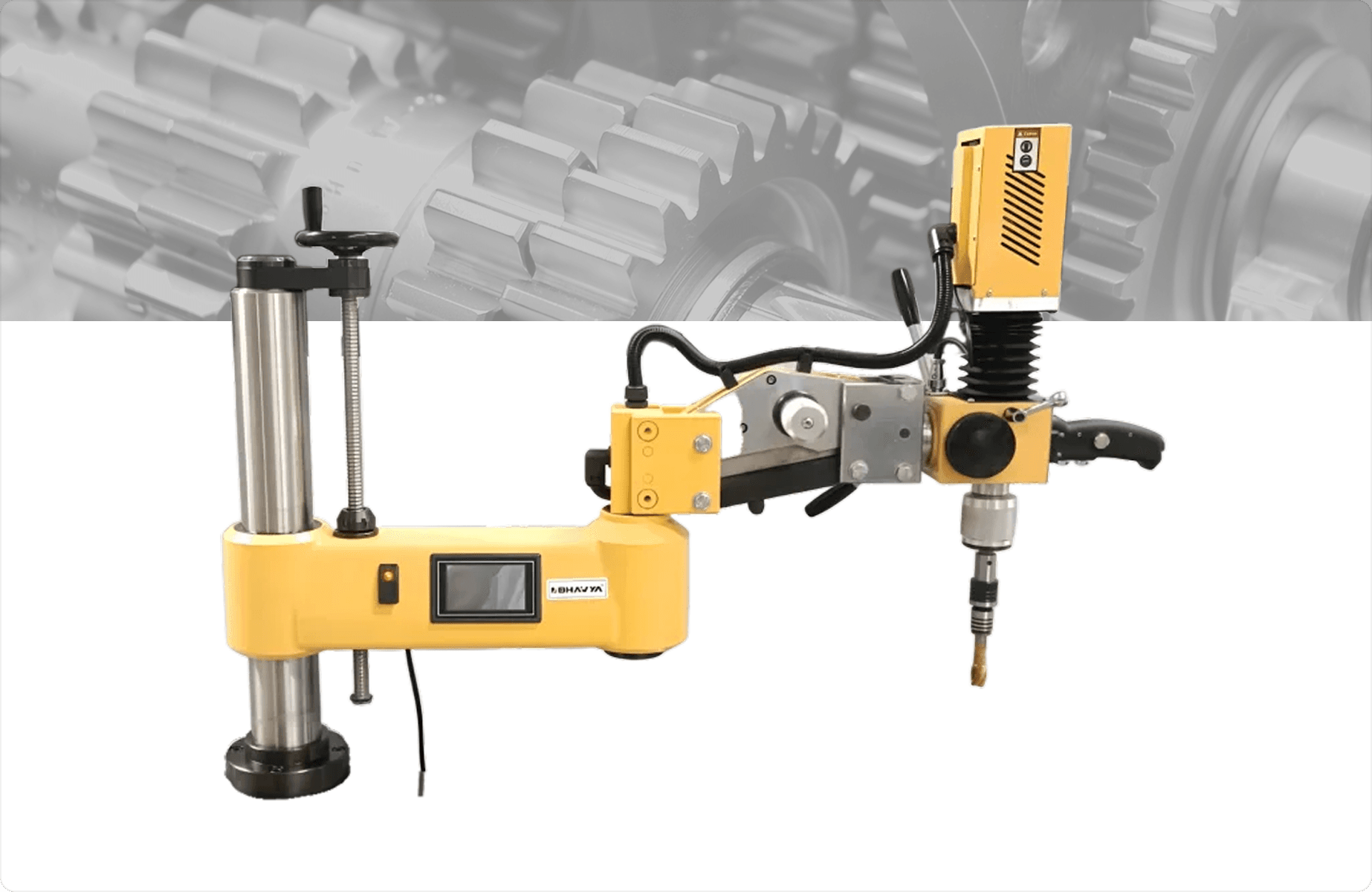

Drilling and Tapping Integrated Machine

Model No

DT-20

Technical Specifications

Model	DT-20
Drilling Range	3-16 MM
Drilling Speed	315 RPM
Tapping Range	5-M 20
Speed	0-315 RPM
Working Depth	80 MM
Working Height	400 MM
Voltage	220V,50HZ
Power	1000W
Weight	270 KG

*Specifications are subject to changed without prior notice.

Features

The Electric servo cantilever drilling and taping machine is suitable for drilling and tapping various machines, moulds and auto parts.
The whole machine adopts the suspended manipulator mode, which realizes the integrated interchange of drilling and tapping, which is flexible and convenient.
The operation interface adopts Touch Screen operations to make drilling and tapping easier and more convenient, which can be operated by any general worker.
