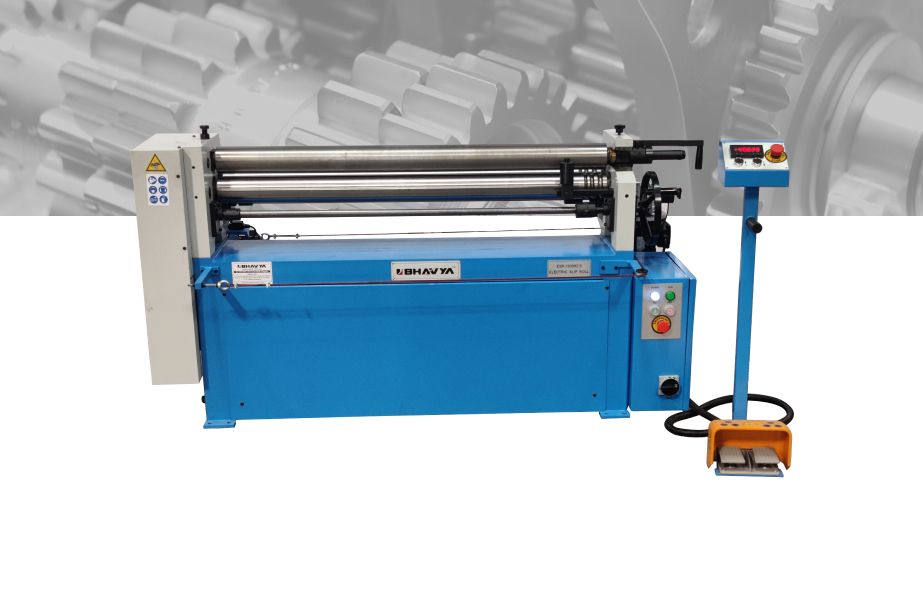

Electric Slip Roll Machine

SHEET METAL

Model No

ESR-1300 x 1.5
ESR-1300 x 2.5
ESR-1300 x 4.5
ESR-1300 x 6.5
ESR-1550 x 3.5
ESR-2020 x 3.5

Get A Quote

Technical Specifications

MODEL	ESR-1300x1.5	ESR-1300x2.5	ESR-1300x4.5	ESR-1300x6.5	ESR-1550x3.5	ESR-2020x3.5
Max. Rolling Thickness - MS	1.5mm	2.5mm	4.5mm	6.5mm	3.5mm	3.5mm
Max. Rolling Thickness - SS	0.8mm	1.2mm	2mm	3mm	1.6mm	1.6mm
Minimum Rolling Diameter	90mm	100mm	130mm	170mm	130mm	140mm
Max. Rolling Width	1300mm	1300mm	1300mm	1300mm	1550mm	2020mm
Diameter Of Roller	75mm	90mm	120mm	150mm	120mm	127mm
Motor Power	0.75 kw	1.5 kw	2.2 kw	3.0 kw	2.2 kw	4.0 kw
Packing Dimension	1800×650×1100mm	2000×720×1200mm	2000×760×1270mm	2820×870×1340mm	2220×760×1270mm	2700×870×1300mm
Net Weight	280kgs	540kgs	750kgs	1100kgs	790kgs	1100kgs

*Specifications are subject to changed without prior notice.

Features

Standard series wire core groove
Top roll swing out across cam lock
Supplied with conical bending feature
Fixed top roller, adjustable lower and rear rollers
Asymmetrical roll bending machine with 3 high strength steel rolls
Electric lifting of back roller
Digital indicator of back roller position
Asymmetrical Roll Bending Machine
High Strength Steel Roll
Fixed Top Roller, Adjustable Lower and Rear Roller
Standard Series Wire Core Groove
Top Roll Swing Out Across Cam Lock
Conical Bending Feature

Photo Gallery

ESR-1300x1.5

ESR-1300x2.5

ESR-1300x4.5
