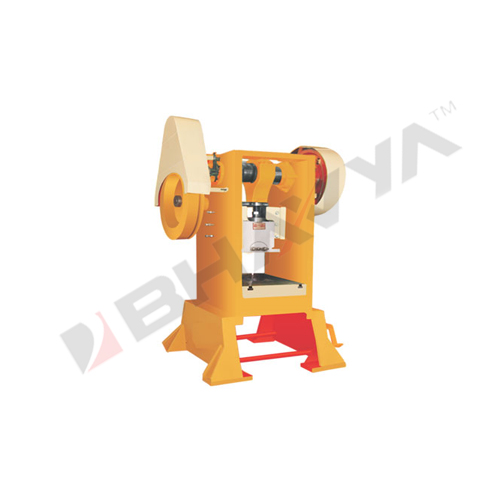

“H” Type Power Press

Model : BHP-05,..
  • Frame
  • The frame is of all steel construction, fabricated from rolled steel plates with suitable cross ribbings. Presses up to 30T will be supplied with C.I. legs. Proper alignment of the frame is ensured by machining. The structure is designed for perfectly balanced distribution of stress over the cross section eliminating deflection & vibration, in result increased tool & machine life.

  • Clutch
  • The clutches of pin/rolling key-type and well supported with high rigidity. The Clutch is made of special alloy steel, the pin / rolling key is manufactured from W.P.S. / EN24 material & with proper heat treatment to ensure trouble free long life & give continues stroke for mass production.

  • Crank Shaft
  • The Crank shaft is made of special alloy steel with precisely machined to grind finish having closed accuracy and fitted in bronze bushes for smooth working, longer life with consistent performance.

  • Adjustable Stroke
  • The unique feature of adjustable stroke enables the press to perform all kinds of operations by employing short stroke for blanking and forming operation.

  • Flywheel
  • Properly sized flywheel is made of high grade cast iron, for storing and releasing adequate energy for the pressing operation, and properly balanced for smooth running.

  • Gears
  • Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

  • RAM & BED
  • Ram Slides is made of high grade heavy duty cast iron & properly seasoned, aligned & fitted with Hylum Sheet on back side for friction free travel through slides, ensuring longer life of die and easy operation. Bed is made of high grade heavy duty cast iron & properly seasoned & properly aligned with ram to obtain high accuracy and precision press operation.

Standard Accessories

  • Motor Pulley
  • Slide Adj. Spanner
  • Fly wheel & Gear guard
  • Oil cups for lubrication point.
  • Knock -out system

Optional Accessories

  • Tow hand operated clutch.
  • Single /Continuous stroke
  • Automatic lubrication pump
  • Electric motor, Starter and V-belts
  • Extra base plate
  • Inclinable type
Model No BHP-05BHP-10BHP-20BHP-30BHP-40BHP-50
CAPACITY IN TONS 51020304050
Crankshaft DiameterMM7088115130135140
Adj. Stroke LengthMM385063767689
Adjustment of RamMM252525252525
Punch Hole in RamMM252532383845
Hole in BedMM6376828995101
Bed Size : (Length x Width)MM381 X 254457 X 304660 X 380762 X 431785 X 482810 X 507
Bed ThicknessMM100112140152165177
Dist. between bed to RamMM177204250292320350
Flywheel Dia.MM406458482533584660
Strokes per minuteMM807045403535
Motor Power (HP)-1440 RPM 11.52345
Floor To Top of BedMM70083083088010001000
Model No BHP-60BHP-80BHP-100BHP-150BHP-200
CAPACITY IN TONS 6080100150200
Crankshaft DiameterMM150160170190250
Adj. Stroke LengthMM100115130150150
Adjustment of RamMM2525252525
Punch Hole in RamMM4550508080
Hole in BedMM115130150200225
Bed Size: (Length x Width)MM840 X 558890 X 583915X635 1015X7101140X787
Bed ThicknessMM203228253278304
Dist. between bed to RamMM380380406457482
Flywheel Dia.MM7628128639651016
Strokes per minuteMM3030302525
Motor Power (HP)-1440 RPM 7.5101012.515
Floor To Top of BedMM10001000100010001000
