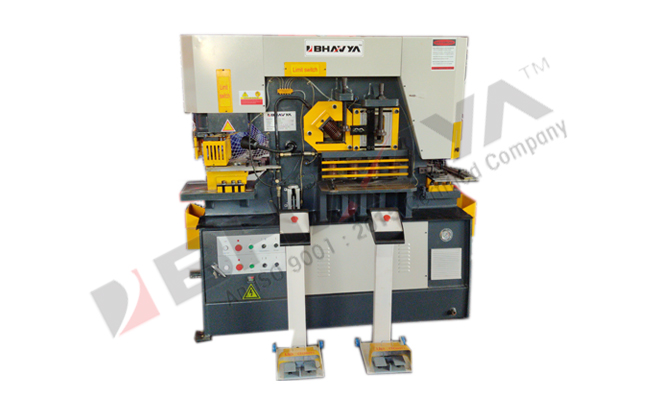

Hydraulic Multifunction Ironworker Machine

IRON WORKER

Model No

IW-60 / IW-60L
IW-90 / IW-90L
IW-120
IW-160
IW-200
IW-250

Get A Quote

Technical Specifications

Model	IW-60/IW-60L	IW-90/IW-90L	IW-120	IW-160	IW-200	IW-250
Punching
Punching Pressure	60 Ton	90 Ton	120 Ton	160 Ton	200 Ton	250 Ton
Punching Capacity (Dia. x Thk.)	25 x 16	30 x 20	35 x 25	38 x 28	30 x 35	42 x 35
Throat Depth	300	355	400	600	560	550
Maximum Stroke Length	80	80	80	80	100	100
Number of Strokes	8-22/Min.	8-22/Min.	8-22/Min.	8-22/Min.	8-22/Min.	6-18/Min.
Plate Shearing
Flat Shearing	16 X 250	20 X 330	25 X 330	30 X 355	35 X 400	25 X 750
Flat Shearing	8 X 400	10 X 480	16 X 600	20 X 600	20 X 700	38 X 420
Blade Length	410	490	610	610	710	760
Blade Cutting Angle	7°	8°	8°	8°	8°	8°
Plate Strength	≤ 450Nmm²	≤ 450Nmm²	≤ 450Nmm²	≤ 450Nmm²	≤ 450Nmm²	≤ 450Nmm²
Angle Shearing
Equal Angle 45°	70 x 70 x 8	70 x 70 x 10	80 x 80 x 7	80 x 80 x 10	100 x 100 x 10	120 x 120 x 12
Equal Angle 90°	120 x 120 x 12	140 x 140 x 12	160 x 160 x 14	180 x 180 x 16	200 x 200 x 18	200 x 200 x 18
Bar Shearing
Round Bar	45	50	60	65	70	75
Square Bar	40 x 40	45 x 45	50 x 50	55 x 55	60 x 60	65 x 65
Notching
Rectangular Notching (W x D x T)	50 x 90 x 8	80 x 100 x 10	80 x 100 x 12	100 x 100 x 16	120 x 120 x 16	120 x 120 x 16
Special Tooling
C - Channel Shear	126 x 53 x 5.5*	160 x 60 x 6.5*	200 x 75 x 9*	280 x 86 x 11*	300 x 89 x 11*	320 x 92 x 12*
I - Beam Shear	126 x 74 x 5.0*	160 x 86 x 6.0*	200 x 102 x 9*	280 x 124 x 10*	300 x 126 x 11*	320 x 130 x 10*
Power
Main Motor Power	4kW	5.5kW	7.5kW	11kW	15kW	18.5kW
Overall Dimensions (L x W x H)	1650 x 800 x 1780	1950 x 900 x 1930	2355 x 980 x 2100	2680 x 1060 x 2380	2800 x 1260 x 2420	3200 x 1440 x 2450
Gross Weight	1800Kgs	2600Kgs	4800Kgs	6800Kgs	9200Kgs	12800Kgs
