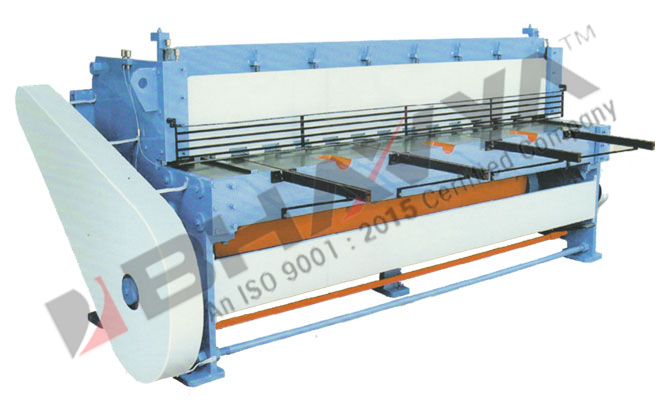

Mechanical Shearing Machine (Undercrank)

Model : TUS-122,..

Frame Construction

Shears fabricated from IS Graded, Rolled steel plates. Table and cutting Beam are deeply reinforced and finely machined after stress relieving. The interlocked design put the direct support to frame, Thus frame is strain free and eliminate welds at load supports. Therefore the accuracy of the machine is never disturbed.

Bed

Super strong bed of closed box type construction, stress relieved in a furnace, forms a rigid backbone for the shear and a solid backing for the lower Knife. Dovetail slots in front of the bed are provided for front gauge. Slots on top of bed are also provided for machined pad across the bed for convenient setting of front gauge brackets at any desired spacing.Depressions in the top of the bed provide ample clearance forfingers in handling sheets narrowerthan the bed.

ModelCutting CAP.
In MS Length
x Thickness
Stroke
per Minute
Table
Height
Table
Width
Front
Gauge
Rear
Gauge
Motor
HP/KW
TUS-1221270×2458003507505002
TUS-1521525×2458003507505002
TUS-2022030×2458003507505003
TUS-2522540 x 2458254309805005
TUS-3123150×2458254309805007.5
TUS-1241270×4508254309805005
TUS-1541525×4508254309805005
TUS-2042030 x 4508254309805007.5
TUS-2542540 x45092546098060010
TUS-3143150×45092546098060012.5

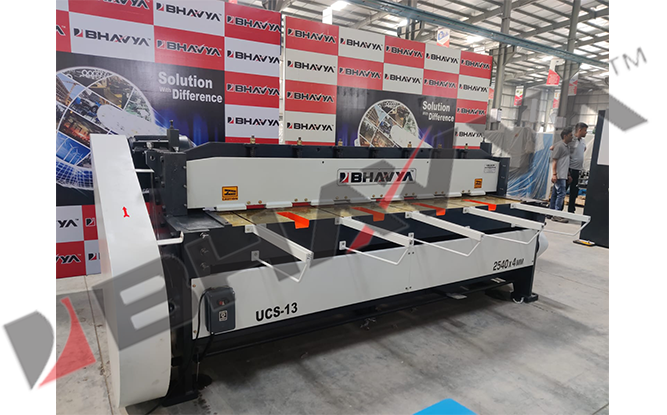

Under Crank Mechanical Shearing Machine

Bhavya Machine Tools provides under crank mechanical shearing machine. They are commonly used for cutting large sheets, bars and plates of metallic and non-metallic materials into different shapes. Our machines are engineered for rapid and accurate cutting. We supply modern, tough and long lasting shearing machines. The key features include higher safety, low maintenance and optimum productivity.

These machines comply with standard quality control regulations. Our shearing machines are made to minimize material wastage. They are crafted for continuous and repeated output. We provide diverse models with various technical specifications. Shearing machines are useful in automobile, printing, food processing, engineering, electronic, plastic, wood working, electrical, construction and many other industries.
