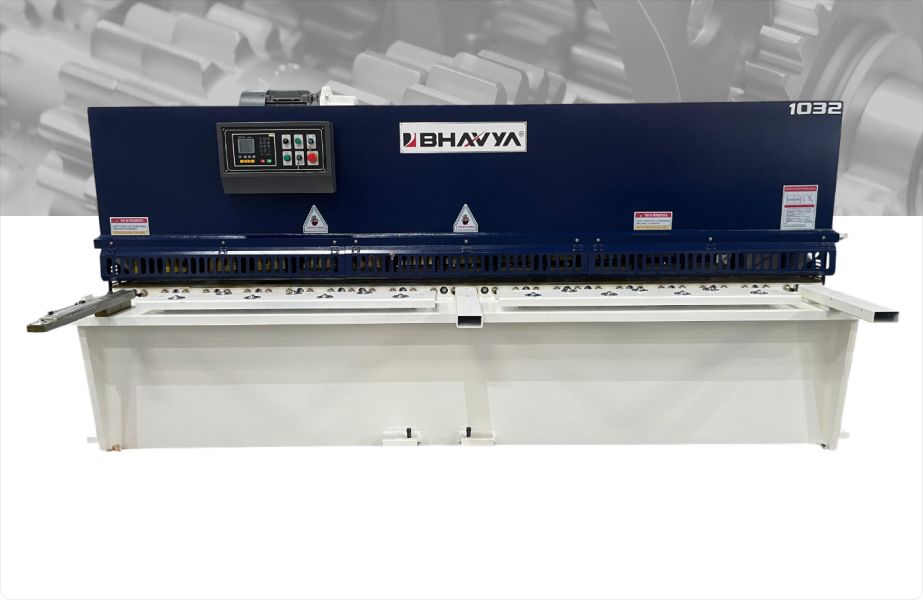

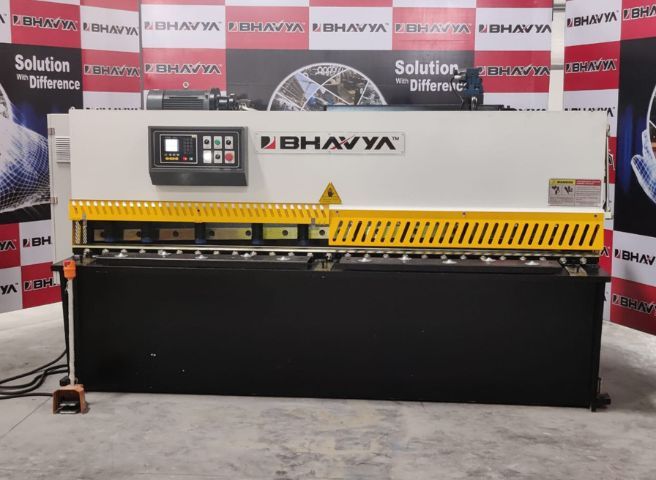

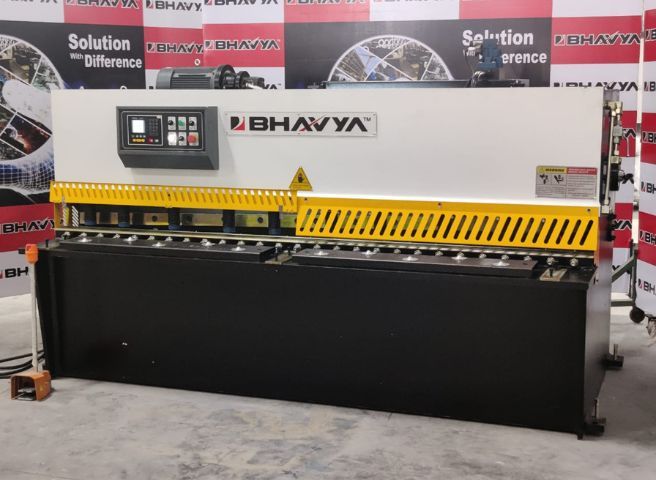

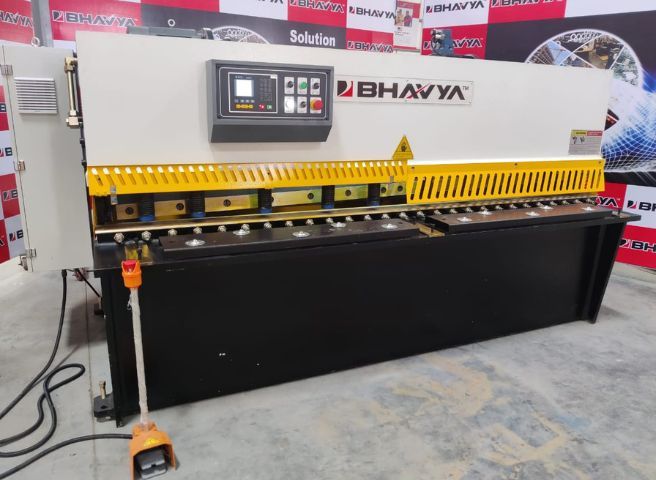

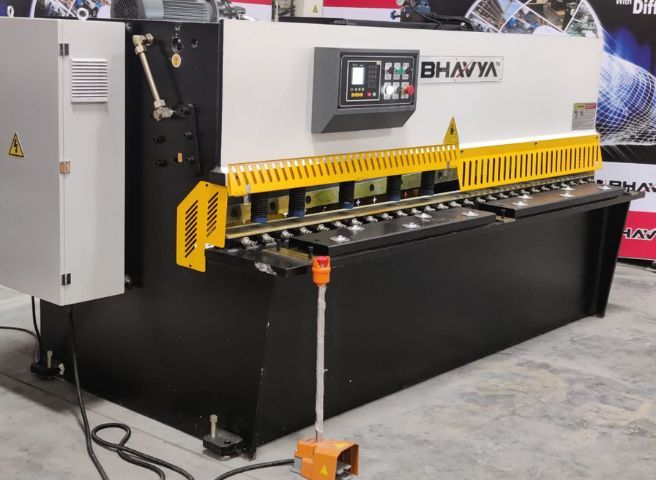

NC Swing-Beam Hydraulic Shearing Machine (NCS Series)

NC SHEARING

Model No

NC-4
NC-6
NC-8
NC-10
NC-12

NC-16
NC-20
NC-25
NC-30
NC-40

Get A Quote

Technical Specifications

MODEL	THICKNESS	Width	Distance between Column	Cutting Angle	Material Intension	Height of working table	Backgauge		Strokes	Power	Oil Volume	Overall Dimension	Weight
TYPE	(mm)	(mm)	(mm)	(°)	(KN/CM)	(mm)	Travel (mm)	Speed (mm/sec)	Strokes/min	KW	(Ltr)	LxWxH (mm)	(kgs.)
4x2500	4	2500	2600	1° 30°	≤450	700	500	600	12-15	4	200	3000x1600x1650	2500
4x3200	4	3200	3320	1° 30°	≤450	700	500	600	12-15	5.5	200	4600x1700x1700	5500
4x6000	4	6000	6100	1° 30°	≤450	700	500	600	12-15	7.5	200	6460x2100x3200	100000
6x2500	6	2500	2620	1° 30°	≤450	700	500	600	12-15	7.5	200	3040x1610x1620	4200
6x3200	6	3200	3320	1° 30°	≤450	700	500	600	12-15	7.5	300	3840x1610x1620	5000
6x4000	6	4000	4120	1° 30°	≤450	700	500	600	12-15	7.5	250	4620x1750x1700	6000
6x5000	6	5000	5130	1° 30°	≤450	700	500	600	8-10	11	200	5400x1800x1900	10000
6x6000	6	6000	6200	1° 30°	≤450	700	500	600	8-10	11	300	6480x2100x2300	13000
8x2500	8	2500	2620	1° 30°	≤450	700	500	600	12-15	11	200	3040x1700x1700	4700
8x3200	8	3200	3320	1° 30°	≤450	700	500	600	12-15	11	250	3860x1700x1700	5500
8x3200	8	3200	4120	1° 30°	≤450	700	500	600	8	11	300	4640x1700x1700	5700
8x5000	8	5000	5130	1° 30°	≤450	700	500	600	8	11	400	5400x2100x2000	11500
8x6000	8	6000	6200	1° 30°	≤450	700	500	600	10	15	800	6480x2100x2350	14500
10x2500	10	2500	2630	1° 30°	≤450	700	500	600	10	15	200	3040x1700x1700	5000
10x3200	10	3200	3330	1° 30°	≤450	700	500	600	8	15	250	3860x1700x1700	6000
10x4000	10	4000	4130	1° 30°	≤450	700	500	600	10	15	300	4650x2100x2000	7300
10x6000	10	6000	6150	1° 30°	≤450	700	500	600	10	18.5	400	6500x2100x2300	16000
12x2500	12	2500	2665	2°	≤450	700	500	600	8	18.5	800	3140x2150x2000	7500
12x3200	12	3200	3365	2°	≤450	700	500	600	8	18.5	250	3880x2150x2000	8500
12x4000	12	4000	4165	2°	≤450	700	500	600	6	18.5	300	4680x2150x2000	10000
12x5000	12	5000	5165	2°	≤450	700	500	600	6	18.5	400	5900x2150x2000	14500
12x6000	12	6000	6265	2°	≤450	680	500	600	12-15	18.5	800	6900x2600x2700	18000
12x8000	12	8000	8230	2°	≤450	680	500	600	12-15	18.5	400	9000x3500x3500	30000
16x2500	16	2500	2690	2° 30°	≤450	680	500	600	12-15	22	400	3140x2150x2000	9000
16x3200	16	3200	3190	2° 30°	≤450	680	500	600	12-15	22	600	3880x2150x2000	10000
16x4000	16	4000	4190	2° 30°	≤450	680	500	600	12-15	22	800	4650x2150x2200	13500
16x5000	16	5000	5190	2° 30°	≤450	680	500	600	12-15	22	400	5900x2600x2700	22000
16x6000	16	6000	6190	2° 30°	≤450	680	500	600	12-15	22	400	6900x2700x2700	28000
16x8000	16	8000	8230	2° 30°	≤450	680	500	600	12-15	22	600	9000x3500x3500	40000
20x2500	20	2500	2690	3°	≤450	680	500	600	12-15	22	800	3440x2300x2500	11000
20x3200	20	3200	3190	3°	≤450	680	500	600	12-15	22	1000	4150x2350x2700	12500
20x4000	20	4000	4190	3°	≤450	680	500	600	12-15	22	1000	4850x2600x2700	15000
20x6000	20	6000	6190	3°	≤450	680	500	600	12-15	30	1000	6700x3000x3000	31000
25x2500	25	2500	2730	3°	≤450	680	500	600	12-15	37	1000	3200x2700x2900	13500
25x3200	25	3200	3230	3°	≤450	680	500	600	12-15	37	1000	4200x2700x2900	16000
30x2500	30	2500	2730	3°	≤450	680	500	600	12-15	37	1400	3300x2900x3000	16000
30x3200	30	3200	3230	3° 30°	≤450	680	500	600	12-15	40	1400	4200x2900x3200	19000
40x2500	30	2500	2730	4°	≤450	680	500	600	12-15	55	1600	3200x3300x3000	35000
40x3200	40	3200	3230	4°	≤450	680	500	600	12-15	55	1600	4300x3300x3200	40000

*Specifications are subject to changed without prior notice.

Accessories

5.7" Touch Screen shear controller from CYBELEC/DELEM
Electric control panel
Automatic rake angle adjustment
Lever operated bilade gap adjustment on NC Shear
Automatic blade gap adjustment on CNC Shear
Hardened ground ball screw & LM Guides

Stroke adjustment through screen
Front Sheet support Squaring arm with steel rule on left side
Hardened transfer bars mounted on table
Hold down cylinders mounted on machine
Cutting area illuminated for clear view on blades
Four edge HCHCr blade suitable to cut MS & SS Material**

Features

STANDARD FEATURES:

High Tensile Strength Hold Downs
Manual Blade Gap Adjustment
ESTUN E21S Control System
France Schneider Electric Controls
Germany Siemens Motor with Sunny Pump

Pipe Connectors
Germany Bosch Rexroth Hydraulic System
Backgauge Motor
Backguage With Double Lm Guides & Ball Screw

Steel plate welded structure, hydraulic transmission, nitrogen cylinder return, convenient operation, reliable performance, beautiful appearance
Edge adjustment signs, adjusts lightly and quickly, continuously variable transmission
Lighting device on the line, and continuously variable adjustment of upper carrier itinerary
Fence type safety protection device
Back gauge adopts MD11 CNC, with low noise and high precision. Option: E21S, E200PS, DAC 310
