Open-Type Double-Drive Fiber Laser Cutting Machine

Open-Type Double-Drive Fiber Laser Cutting Machine

Model No

6020 Series
6022 Series
3015 Series

Technical Specifications

Model	BDC-3015	BDC-4015	BDC-4020	BDC-6020	BDC-8025
Processing Range	3000 × 1500 mm	4000 × 2000 mm	4000 × 2000 mm	6000 × 2500 mm	8000 × 2500 mm
X-axis Travel	1560 mm	2060 mm	2560 mm	2560 mm	2560 mm
Y-axis Travel	3080 mm	4080 mm	6080 mm	8080 mm	8080 mm
Z-axis Travel	150 mm	150 mm	150 mm	150 mm	150 mm
Laser Power	300 W / 6000 W / 12000 W
X/Y Axis Positioning Accuracy	< ±0.03 mm/min
X/Y Axis Repeated Positioning Accuracy	< ±0.02 mm/min
Max. Positioning Speed	10 m/min

*Specifications are subject to changed without prior notice.

Features

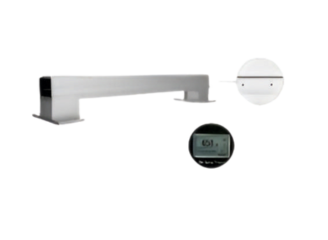

Stretched Aluminium Gantry :

Using low pressure steel film casting process the beam has high density, light weight, smooth surface quality, excellent integrity and rigidity At the same time, it has good toughness, ductility and corrosion resistance.

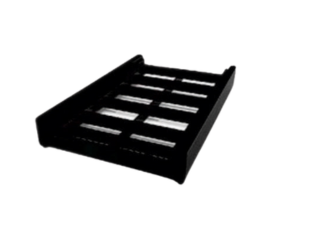

Steel Bed:

Steel bed has good shock absorption and small deformation, which ensures the stability of long-term production. It can effectively counteract the force of frequent high-speed reversing and high acceleration and deceleration, which is the guarantee of stable quality and provides support for constant quality of laser cutting machine.

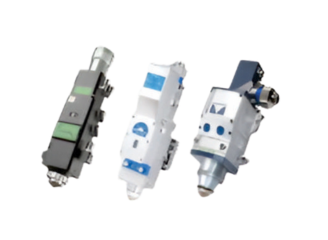

Brand Laser Head :

Equipped with brand automatic focusing cutting head, can automatically and accurately adjust the focus according to the thickness of the material, suitable for a variety of focal length: Shorten perforation time, improve perforation quality, high speed cutting, save time.

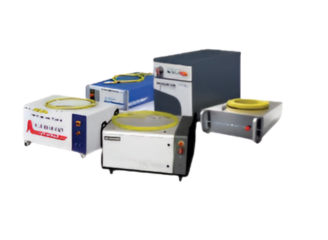

Laser Cutting System :

Adopts air-cooled compact structure design, semiconductor fiber as laser generation medium, green environmental protection, simple mechanical structure, constant optical path, basically maintenance free, stable cutting performance.

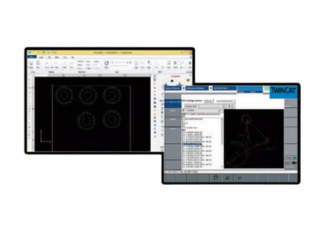

Brand Fiber Laser :

Intelligent visual control system, the operation interface is easier to understand, and the laser power, gas type and pressure can be adjusted intuitively, Intelligent edge searching, automatic positioning, easy to achieve efficient production.

Photo Gallery

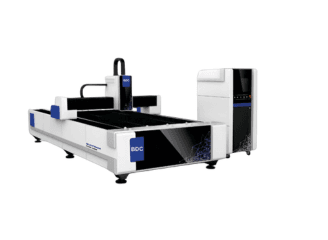

Open Type Double Driver
