Vertical Bandsaw (VS-500/585)

Model No

VS-500
VS-585

Technical Specifications

Model		VS-500	VS-585
Max Cutting	Height	310 mm	336mm
Capacity	Width	500mm	585mm
Table Size		660 x 700 mm	660x700mm
Blade Speed (50Hz)		1440 rpm	0-1400 rpm
Length of saw blade		3980-4050 mm	4430-4520mm
Blade width		3-16 mm	6-19mm
Table Tilt		R-30°, L-15°	R-30,L-15
Main Motor/Grinde Motor		1.5kW(2HP), 0.09kW(1/8HP)	1.5kW(2HP),0.09kW(1/8HP)
Electric Welder		2.4KVA	2.4KVA
Packing Size		1400x900x2200 mm	1470x950x2300mm
N.W/G.W (Approx)		410/470 kg	410/470kg

*Specifications are subject to changed without prior notice.

Accessories

Adjustable Circular Blade

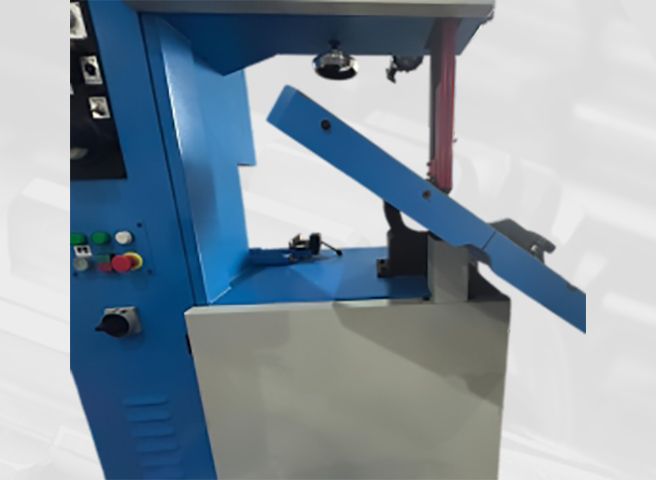

Tilting Table

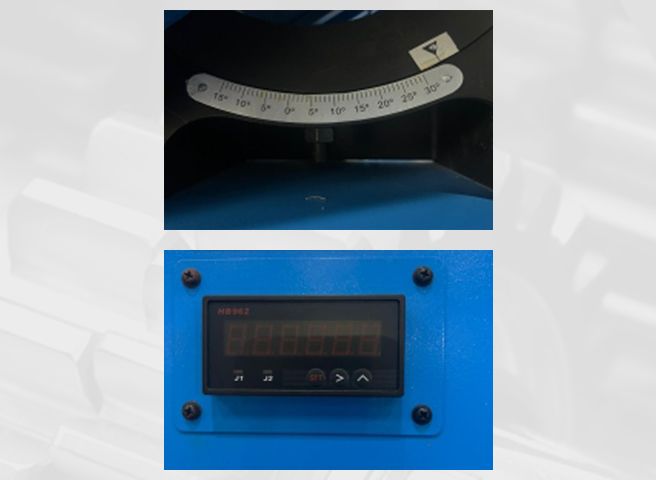

Production Count

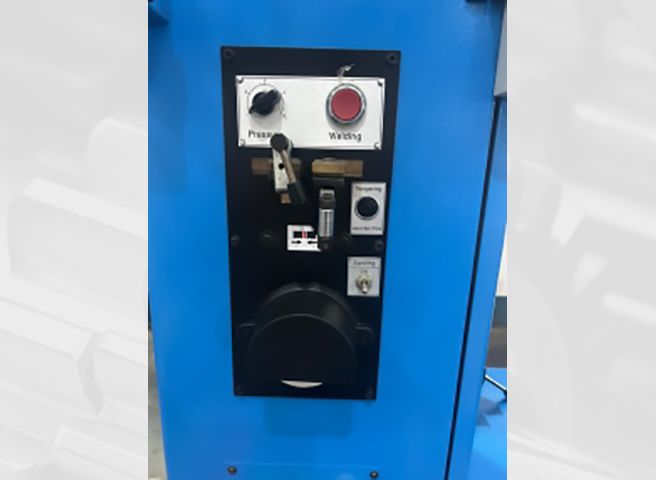

Pressure Gauge
