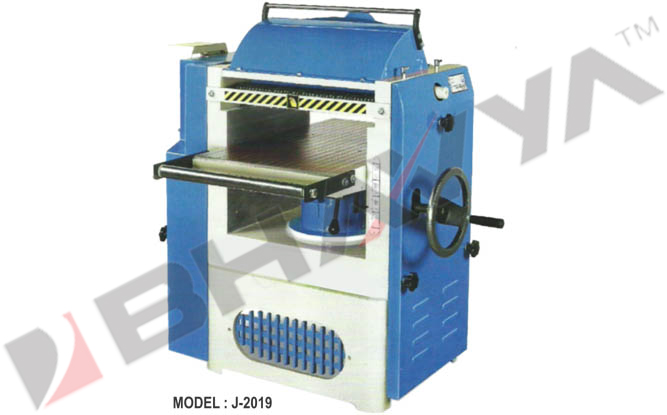

Wood Working Machine (Thickness Planers J-2019)

Model : J-2019

Planomax

Model noJ-2014J-2015J-2019
 mm/inchmm/inchmm/inch
Max. Planing width330/13"381/15"455/18"
Thicknessing capacity177/7"177/7"177/7"
Length of thickness table640/25 1/4"710/28"735/29"
Min. Length of workpiece for thicknessing254/10"254/10"254/10"
Feeding speed (feet per minute)242424
Cutter block diameter95/3.75"95/3.75"95/3.75"
Cutter block speed (rpm)400040004000
Standard cutter block-code no2B2B3B-W
Size of dust collector port-dia100/4"100/4"100/4"
Power required hp/rpm3/14403/14405/1440
  • 2/3 planer blade fitted in cutter block
  • Motor pulley
  • Motor fixing plate
  • Toolkit & m/c manual
