Description
Salient Features:
- Stress Relieved Fabricated Steel Structure
- Hard Chrome Plated Ground Column
- Automatic Height Adjustment for Saw Frame
- Variable Pressure Control for Cutting Feed
- Auto Cutting Stop
- Push Button Type Operating Panel Board
- Heavy Duty Worm Gear Box
- Moveable Blade Support Guide
- Manual Blade Tensioning Arrangement
- Material Feeding Manually
Standard Accessories:
- Saw Blade
- Coolant Systems
- Machine Lamp
- Blade Tensioning Wrench
- Adjustable Bar Support Stand
- Tool Kit
- Operating & Instruction Manual

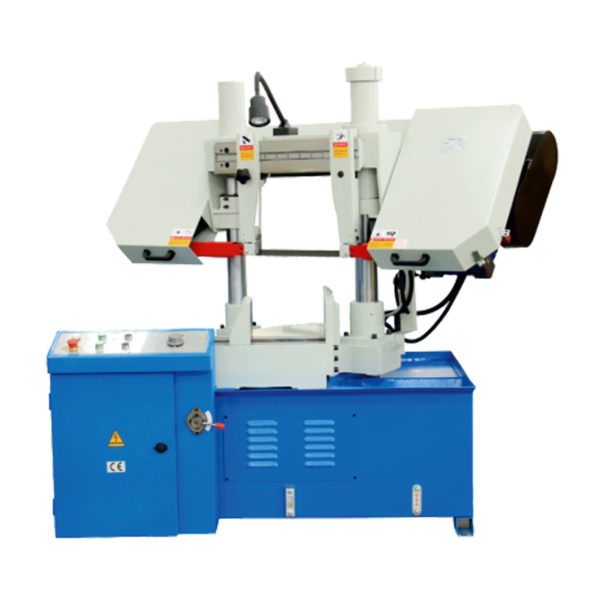

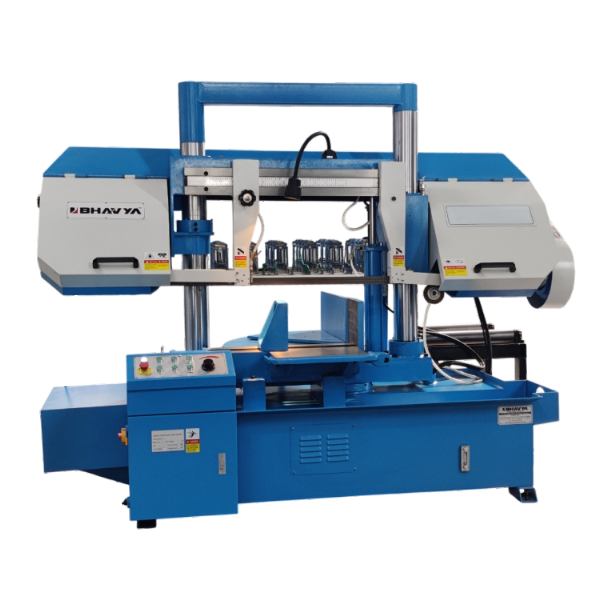

| Model | TBK-4235A |
| Capacity Circular @90° | 350 mm |
| Capacity Rectangular @90° | 380 x 350 mm |
| Capacity Square @90° | 350 mm |
| Capacity Circular @45° | 245 mm |
| Capacity Rectangular @45° | 245 x 350 mm |
| Capacity Square @45° | 245 mm |
| Capacity Circular @30° | 300 mm |
| Capacity Rectangular @30° | 300 x 350 mm |
| Capacity Square @45° | 300 mm |
| Linear speed | 27,45,69 M/min |
| Blade Speed | 4535 x 27x 0.9 |
| Main Motor Power | 3kW |
| Hydraulic Motor Power | 0.55kW |
| Coolant pump power | 0.04kW |
| Packaging Size | 210 x 150 x 160 cm |
| N.W/G.W | 950 kg |
