Specification

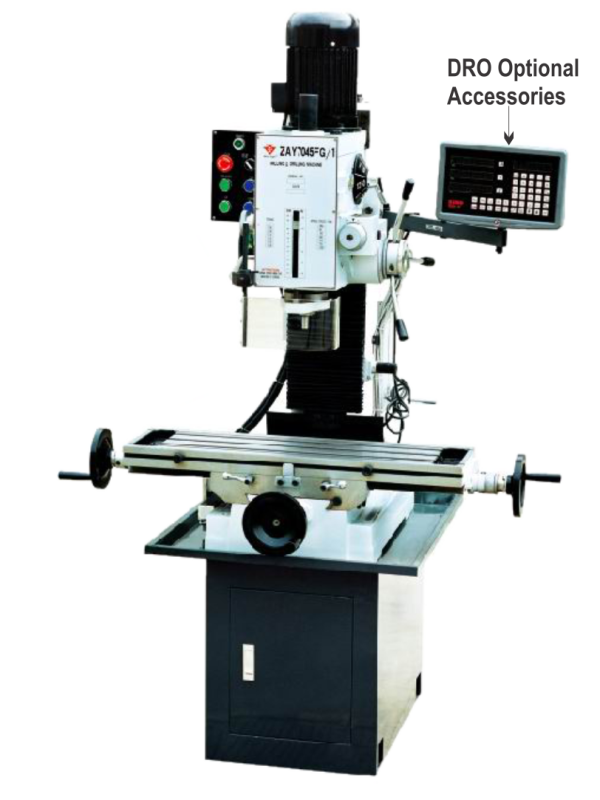

| PARTICULARS / MODEL | ZAY7045FG/1 |
| Drilling Capacity | ɸ45mm |
| Max.boring diameter | ɸ70mm |
| Max.face mill capacity | ɸ80mm |
| Max.end mill capacity | ɸ32mm |
| Max.distance from spindle nose to table | 450mm |
| Min.distance from spindle axis to column | 260mm |
| spindle travel | 130mm |
| spindle taper | M.T.3, M.T.4 |
| step of spindle speed | 6 |
| Range of spindle speed (50 Hz) | 80-1250 r.p.m |
| Swivel angle of headstock (perpendicular) | ± 90° |
| Automatic lifting of spindle | 240mm/min |
| Auto-feeding step of spindle(longitudinal/Cross) | – |
| Auto-feeding amount of worktable | – |
| Table size | 800 x 240mm |
| Forward and backward travel of table | 175mm |
| Left and right travel of table | 500mm |
| Motor power | 1.5KW |
| Net weight | 325kg |
| Packing size (LxWxH) | 770x880x1160mm |
Special features
- Belt – driven and round column
- Milling, drilling, tapping, boring and roaming
- Headstock swivels ± 90° vertically
- Micro feed precision
- Adjustable gibs on table precision
- Strong rigidity power cutting and precise positioning.
| STANDARD ACCESSORIES | |
| Allen wrench | Working lamp |
| Wedge | Coolant system |
| Tie rod | Machine stand & chip tray |
| Drill chuck | Mill chuck |
| Milling cutter holder | Boring bar |
| Auto tapping system | Changing sleeve |
| Parallel Vise | |
