Description
Model
|
CJK6130
|
| Maximum Swing Over Bed |
Ø 275mm |
| Maximum Swing Over Solid |
Ø 200mm |
| Maximum Swing Over Solid |
Ø 125mm |
| Maximum Machining Length with Hydraulic Chuck |
270mm |
| Maximum Machining Length with Collect (Optional) |
360mm |
| Collect Size (Optional) |
Ø 44mm |
| Spindle Taper Hole |
Ø 48mm |
| Max. Diameter of Bar with Manual Chuck |
Ø 37mm |
| Max. Diameter of Bar with Hyd. Hollow Chuck |
Ø 27mm |
| Max. Diameter of Bar with Hyd. Solid Chuck |
None |
| Spindle Type |
A2-5 |
| Spindle Speed Range |
50-3000rpm |
| Spindle Shift Mode |
Inverter |
| Main Moto Power |
4 Kw |
| Chunk Type |
Hydraulic Solid (AUTOGRIP-Taiwan) |
| Chunk Size |
160mm |
| Rapid Traverse Speed on X Axis |
8m/min |
| Rapid Traverse Speed on Z Axis |
10m/min |
| Servo Motor Torque on X Axis |
4Nm |
| Servo Motor Torque on Z Axis |
6Nm |
| X Axis Travel |
280mm |
| Z Axis Travel |
390mm |
| Guide Way Type |
Hardened Box Guide Way |
| Turret Type |
4 Station Electric Tool Post + 2 Slot Gang Tool Holder |
| Turret Change Time |
90°/1.2-180°/2.0 – 270°/2.8 Sec |
| Turning Tool / Boring Bar Size |
20 x 20mm / Ø20mm |
| Tail stock Type |
Manual Tail Stock |
| Tail stock Sleeve Diameter/Travel |
054/150mm |
| Tail Stock Sleeve Taper |
MT4 |
| Weight |
1200KG |
| Dimension (L*W*H) |
1560*1130*1550mm |
Sileant Features

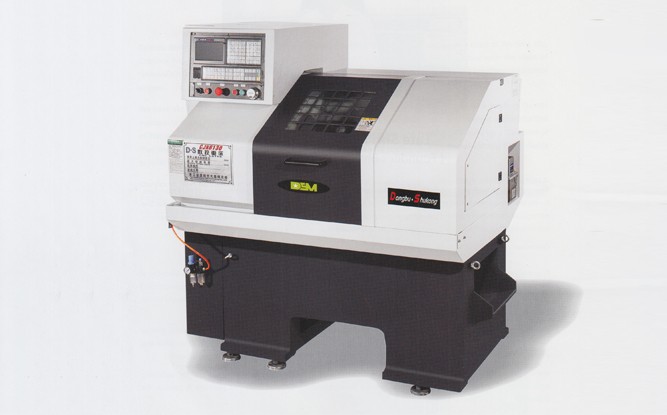

- CJK6130 is a small accurate flat bed lathe. It is suitable for massive production of meter, high accurate electric device & munitions.
- High accurate bearing provide high accuracy and high speed for the spindle unit. Ball screw highly increase the accuracy and durability.
- Integral protection design highly increase the speed of each axis and cleanness of guide way. (Optional Features: Collect, 3 Jaws Chuck Manual, Hydraulic Hollow Chuck)
Standard Accessories
160mm Hydraulic Solid True Chuck, Manual Tail Stock, Coolant System, 4-Station Tool Post, Lubrication System
Optional Accessories
| Hydraulic Hollow Chuck-160mm |
25,000.00 |
| Chip Conveyor |
35,000.00 |
