Portable Hand type Pneumatic Chamfer Machine R200A / SKF-15

₹67,500.00 – ₹122,500.00

  • Applying to make untreatment parts of machine, mould shelf which is not easy to move. It is convenient and easy to operate.
  • It is easy to replace stand tungsten steel quadrilateral edge (413051), andcan use an old cutter.
  • It is accurate and with perfect surface.

Notice：The Max. chamfer is 2mm to 3mm everytime.

SKU: R200A Category:

Description

Model R200A
Chamfering height 0-9mm
Chamfering angle 15°-45°
Power 550W, 220V 1HP
Speed 3000-6000rmp
Dimension 50×24×25cm
Weight 16kg
Standard Equipment Inserts*1 set

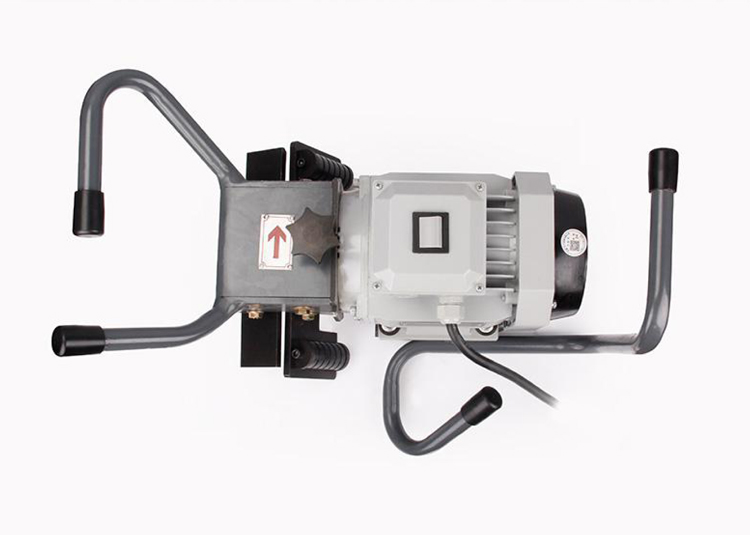

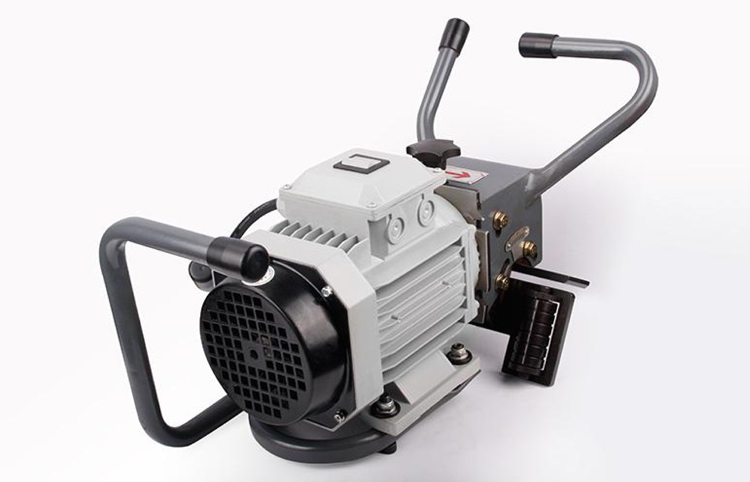

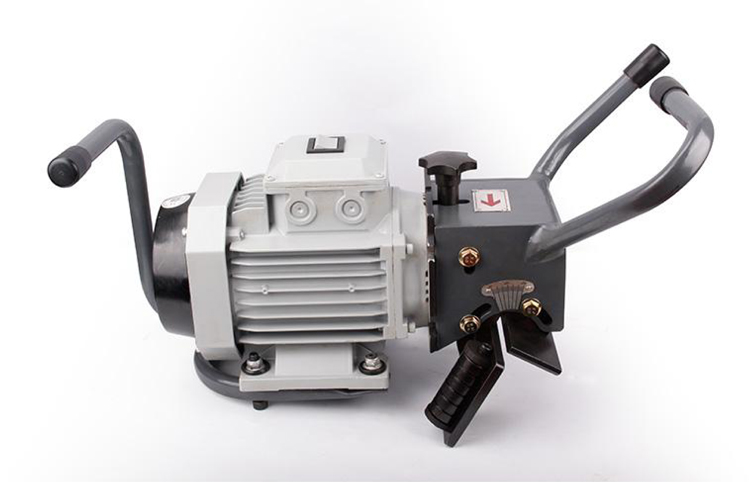

Skf-15 Portable Beveling Machine

  1. It is user-friendly, accurate, safe and save molding time. The surfaceof theworkpiece is smooth and flat. It is designed for making the mould productsbeautiful.
  2. The machine is designed reasonably, easy to move, and equippedwithsafety button. No fault, no vibration, low noise, less dust. Low cost of power saving, standard chip for cutting, easy to replace.
Model SKF-15
Max cutting edge width 15mm (adjustable)
Chamfering angle 30° – 60° (adjustable)
Power 380V, 50Hz,1.1kw
Speed 2870 r/min
Weight 18kg
Standard Equipment Two butterfly type milling cutters, each with 6highspeedcarbon steel embedded milling cutters

Additional information

Model

R200A, SKF-15
