Description
PARTICULARS |

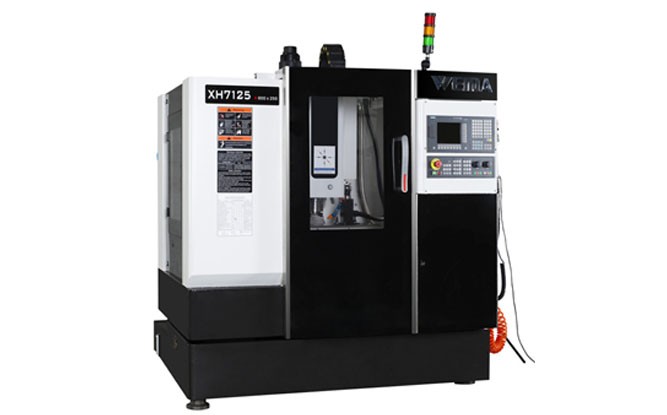

XH7125 |
| Table | |
| Table Size | 600 x 250mm |
| Distance from Floor to Table | 820mm |
| Max. load on table | 100kg. |
| CAPACITY | |
| X/Y/2 Axis Travel | 400/240/400mm |
| X/Y/Z – Axis | Box Way |
| SPINDLE | |
| Spindle Speed | 40 -8000RPM |
| Spindle Power | 3.7/5.5 KW |
| FEED | |
| Rapid Traverse (X,Y&Z) | 8000mm/min. |
| Cutting Feed | 2.5-8000mm/min. |
| ATC | |
| Number of Tools | 10 / Disc Type |
Standard Accessories
- CNC Controller GSK 218MC-H
- Panel Board
- Spindle Motor Type SERVO
- Spindle Motor Make GSK Drive Motor Type Servo
- Drive Motor Make GSK
- Ball Screw Make & Origin HIWIN
- Auto & Manual Coolant System
- Centralized & Programmable Lubrication
- Laser Calibrated Axis
- Work Light Instruction & Operation Manual
- Electric Manual
- CNC Controller Programming Manual
- Machine Setup Data CD
