Description
PARTICULARS |

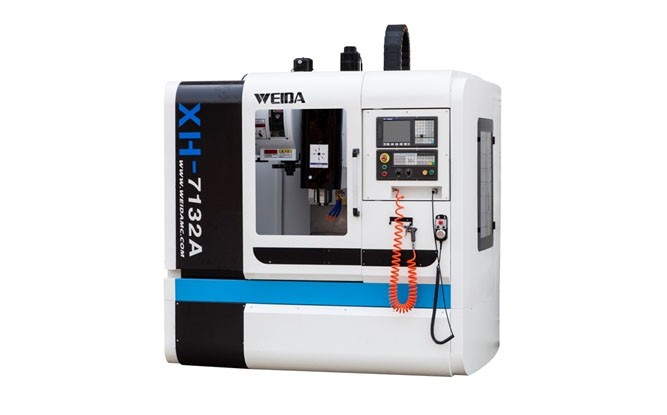

XH7132A |
| Table | |
| Table Size | 920 x 320mm |
| Distance from Floor to Table | 840mm |
| Max. load on table | 300kg |
| CAPACITY | |
| X axis travel | 600mm |
| Y axis travel | 350mm |
| Z axis travel | 500mm |
| X/Y/Z – Axis | Linear Guidway |
| SPINDLE | |
| Spindle Speed | 40 – 8000RPM |
| Spindle Power | 5.5 / 7.5 kw |
| FEED | |
| Rapid Traverse (X, Y & Z) | 36/36/24m/min |
| Cutting Feed | 2.5 – 10000mm/min |
| ATC | |
| Number of Tools | 16 / Disc Type |
Standard Accessories
- CNC Controller GSK 218MC-H
- Panel Board
- Spindle Motor Type SERVO
- Spindle Motor Make GSK Drive Motor Type Servo
- Drive Motor Make GSK
- Ball Screw Make & Origin HIWIN
- Auto & Manual Coolant System
- Centralized & Programmable Lubrication
- Laser Calibrated Axis
- Work Light Instruction & Operation Manual
- Electric Manual
- CNC Controller Programming Manual
- Machine Setup Data CD
