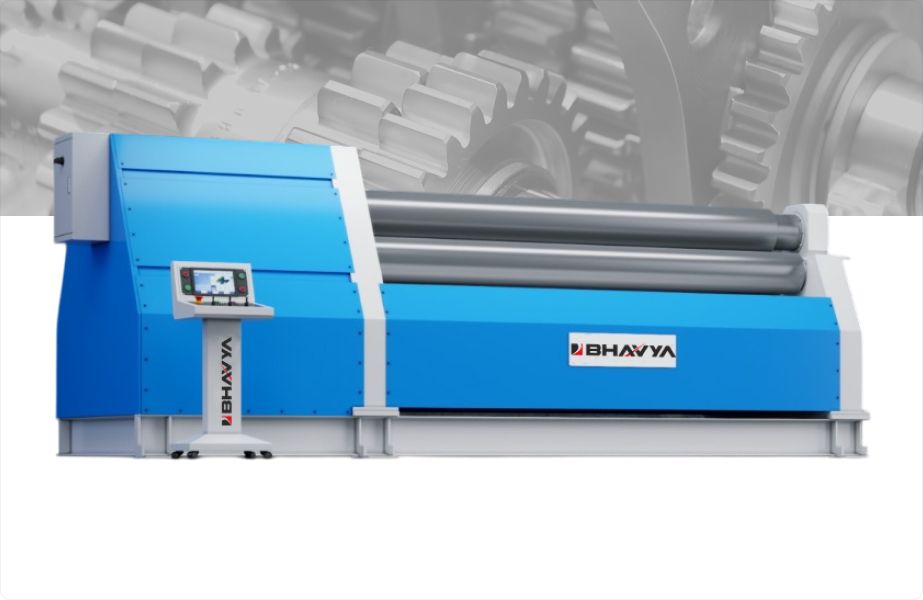

4 Roller Plate Rolling Machine

BENDING ROLL

Model No

BPB4-4
BPB4-6
BPB4-8
BPB4-10
BPB4-12
BPB4-16
BPB4-20

BPB4-25
BPB4-30
BPB4-35
BPB4-40
BPB4-45
BPB4-50
BPB4-60

Get A Quote

Technical Specifications

Model	Max Plate thickness (mm)	Pre-bending thickness (mm)	Roller Working Length (mm)	Plate Yield Limit (mpa)	Top Roller Diameter (mm)	Bottom Roller Diameter (mm)	Side Roller Diameter (mm)	Main Power (kW)	LengthWidthHeight (LWH mm)	Weight (kg)
BPB4-4x2000	4	3.5	2050	245	160	140	120	3	450011001100	4300
BPB4-4x2500	4	3.5	2550	245	190	170	150	4	515013001400	5000
BPB4-4x3000	4	3.5	3100	245	210	190	170	5.5	565014201400	6300
BPB4-6x2000	6	5	2050	245	190	170	150	4	465013001400	4800
BPB4-6x2500	6	5	2550	245	210	190	170	5.5	515014201400	5800
BPB4-6x3000	6	5	3100	245	230	210	190	7.5	586014301400	7000
BPB4-8x2000	8	6.5	2050	245	210	190	170	5.5	465014201400	5000
BPB4-8x2500	8	6.5	2550	245	230	210	190	7.5	525015002140	6300
BPB4-8x3000	8	6.5	3100	245	270	250	210	11	575021302000	9500
BPB4-10x2000	10	8	2050	245	230	210	190	7.5	470014201400	5800
BPB4-10x2500	10	8	2550	245	270	250	210	11	527014201400	6500
BPB4-10x3000	10	8	3100	245	300	270	220	11	570015001500	8200
BPB4-12x2000	12	10	2050	245	270	250	210	11	477015202130	6500
BPB4-12x2500	12	10	2550	245	300	270	220	11	520015001050	8200
BPB4-12x3000	12	10	3100	245	330	300	240	11	577019001880	13500
BPB4-16x2000	16	13	2050	245	300	270	220	11	470015001500	12000
BPB4-16x2500	16	13	2550	245	330	300	240	11	555018401820	12000
BPB4-16x3000	16	13	3100	245	360	330	250	15	630020002450	17000
BPB4-20x2000	20	16	2050	245	330	300	240	11	470019002000	12000
BPB4-20x2500	20	16	2550	245	360	330	250	15	580020002050	15000
BPB4-20x3000	20	16	3100	245	390	360	300	18.5	650022502550	23000
BPB4-25x2000	25	20	2050	245	360	330	250	15	530020002050	14000
BPB4-25x2500	25	20	2550	245	390	360	300	18.5	625021602350	22500
BPB4-25x3000	25	20	3100	245	430	390	330	22	700023002500	30000
BPB4-30x2000	30	25	2050	245	390	360	300	18.5	500021602350	20000
BPB4-30x2500	30	25	2550	245	430	390	330	22	650023002500	27000
BPB4-30x3000	30	25	3100	245	460	420	360	30	730026202900	33000
BPB4-35x2000	35	28	2050	245	430	390	330	22	600023002500	25000
BPB4-35x2500	35	28	2550	245	460	420	360	30	680026002700	31000
BPB4-35x3000	35	28	3100	245	510	460	390	37	760028002900	38500
BPB4-40x2000	40	32	2050	245	460	420	360	30	630026002700	29000
BPB4-40x2500	40	32	2550	245	510	460	390	37	710028002900	35000
BPB4-40x3000	40	32	3100	245	550	510	420	45	820032003200	58000
BPB4-45x2000	45	36	2050	245	510	460	390	37	660028002900	33500
BPB4-45x2500	45	36	2550	245	550	510	420	45	750031003200	46000
BPB4-50x2000	50	40	2050	245	550	510	420	45	700031003200	38000
BPB4-50x3000	50	40	3100	245	610	560	480	55	880036003800	69000
BPB4-60x3000	60	48	3100	245	670	620	520	75	1000043004600	90000

*Specifications are subject to changed without prior notice.

Features

Full hydraulic CNC four roll bending machine is the most accurate, easy to operate and high efficiency plate bending machine in the market today. This design has the advantages that other forms of rolling machine do not have.
The straight edge is shorter than any other type of bending machine (pre bending);
Easy to add the transport devices to the machine(transport table, feeder) and other optional devices;
The entire coll process can be completed only once, Including bilateral pre bending:
The coil is easy to operate and has no high requirement for the operator's technical level;
Perfect geometric design, the coiled work piece with high precision and good roundness.
The board is horizontally fed (especially for long plates);
The upper and lower rollers will clamp tightly when rolling(will not slide);
Only the fed in side of the plate has margin:
The plate is corrected by the adjusting roller real time.
