All Electric Bending Machine (Servo Press Brake)

Press Brake

Model No

EP 3T/200
EP 6T/400
EP 12T/600
EP 20T/800
EP 12T/600S
EP 20T/800S
EP 35T/1250S
EP 40T/1600S

Get A Quote

Technical Specifications

Single Cylinder Technical Parameter

MODEL	EP 3T/200	EP 6T/400	EP 12T/600	EP 20T/800
Nominal machine pressure	3	6	12	20
Workbench	200	400	600	800
Column spacing	296	370	520	720
Throat depth	150	180	200	250
Slide travel	80	120	120	120
Maximum opening height	420	420	450	420
Rear stop travel	150	180	200	350
Bone block running maximum	200	200	200	200
speed main motor power	1.5x1	4.5x1	7.5x1	7.5

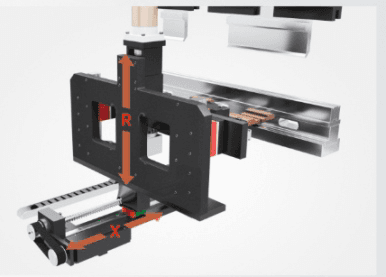

Number of axis	3(Y,X,R)	3(Y,X,R)	3(Y,X,R)	3(Y,X,R)
Main frame dimensions (L × W × H)	780x800x1760	780x930x2100	760x1040x2150	1020x970x2100
Machine weight	450	900	1050	1800

Dual Cylinder Technical Parameter

Model	EP 12T/600S	EP 20T/800S	EP 35T/1250S	EP 40T/1600S
Nominal machine pressure	12	20	35	40
Workbench	600	800	1250	1600
Column spacing	520	720	1160	1510
Throat depth	200	250	300	300
Slide travel	120	120	150	150
Maximum opening height	450	420	450	470
Rear stop travel	200	350	500	500
Bone block running maximum	200	200	200	200
Speed main motor power	4.5×2	5.0×2	8.7×2	11×2
Number of axis	4 (Y1, Y2, X, R)	4 (Y1, Y2, X, R)	4 (Y1, Y2, X, R)	4 (Y1, Y2, X, R)
Main frame dimensions (L × W × H)	9600×1050×2150	11600×1040×2150	2680×1350×2150	13750×1380×2150
Machine weight	960	1600	2680	3300

*Specifications are subject to changed without prior notice.

Features

Stable and Durable: All adopt imported servo motors to ensure the accuracy and stability of the machinery, and it is also durable.
High precision and long service life: The screw guide rails are all imported C5 grade products with high precision, excellent performance, and long service life. The minimum movement setting unit for the Y-axis is 0.005mm.
Especially power-saving: The difference in electricity consumption between the fully electric servo bending machine and the electro-hydraulic servo bending machine is similar to the difference between variable frequency air conditioning and ordinary air conditioning. The fully electric servo bending machine automatically outputs appropriate power and energy according to the working conditions, and consumes less than 0.5KW of electricity when idle, so it is particularly energy - saving.
Green and environmentally friendly: No need to use or replace hydraulic oil, ending the pollution of waste hydraulic oil to the environment.
