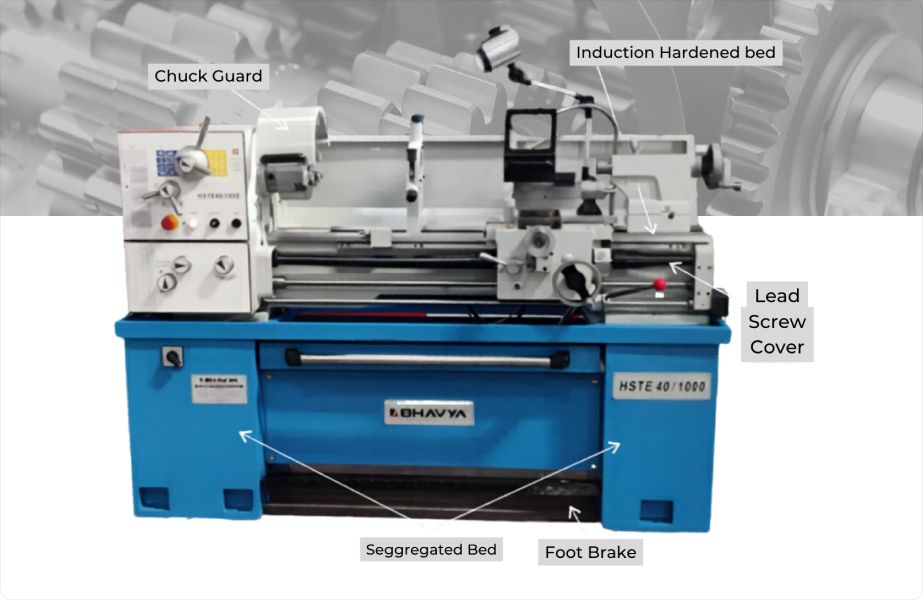

All Geared Lathe Machine (HSTE)

LATHE

Model No

HSTE40/1000/E
HSTE40/1000

Get A Quote

Technical Specifications

PARTICULARS / MODEL	HSTE40/1000/E	HSTE40/1000
Center Of Height	205mm	205mm
Swing Over bed	410mm	410mm
Swing Over Cross slide	268mm	268mm
Swing in Gap Diameter	540mm	540mm
Admit Between Center	1000mm	1000mm
Width of bed	206mm	206mm
Spindle nose, internal taper	D1-4, MT5	D1-5, MT6
Spindle bore	38mm	51mm
Range of spindle speed	16/45-1800rpm	16/45-1800rpm
Compound Slide travel	164mm	164mm
Top Slide travel	97mm	97mm
Metric threads: kinds/range	0.4-7.0mm (37)	0.4-7.0mm (37)
Imperial threads: kinds/range	4-56TPI (28)	4-56TPI (28)
Longitudinal feeds	0.043-0.653mm/rev (42)	0.043-0.653mm/rev (42)
Cross feeds	0.027-0.413mm/rev	0.027-0.413mm/rev
Lead Screw pitch	4mm	4mm
Tailstock quill diameter	45mm	45mm
Tailstock quill travel	110mm	110mm
Taper of taistock quill	MT-3	MT-3
Motor Power	1.5/2.4 kw	1.5/2.4 kw
Coolant pump	0.08kw	0.08kw
Machine Dimensions (L x W x H)	1940x860x1510mm	1940x860x1510mm
Net Weight (Approx)	700kg	750kg

*Specifications are subject to changed without prior notice.

Accessories

Standard :

200mm x 3 Jaw SelfCentering Chuck
250mm x 4 Jaw Independent Chuck

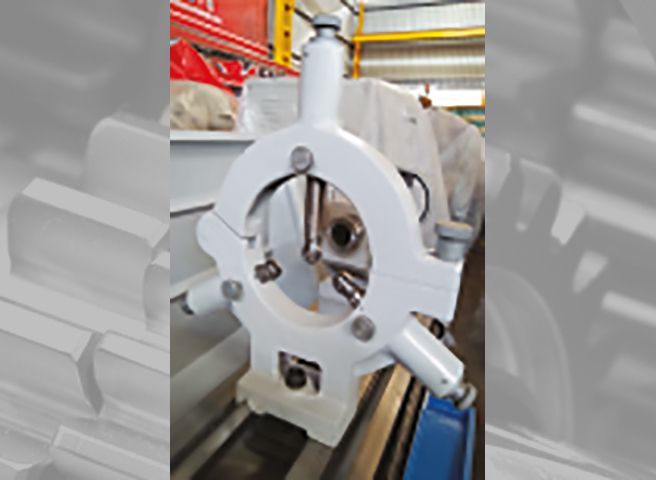

Steady Rest (10-130mm)

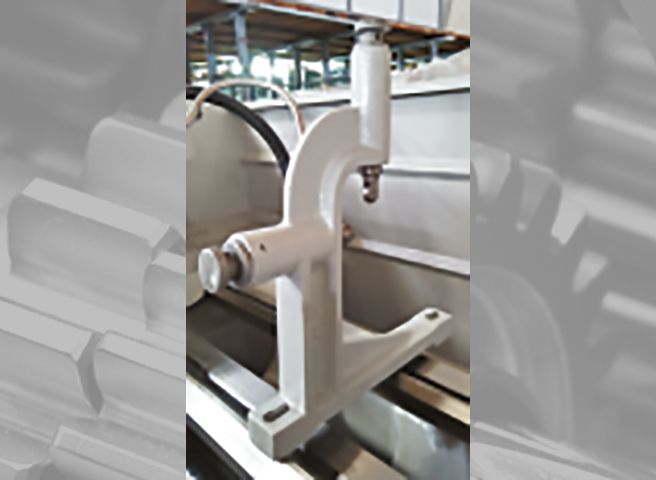

Follow Rest (10-100mm)
Face Plate

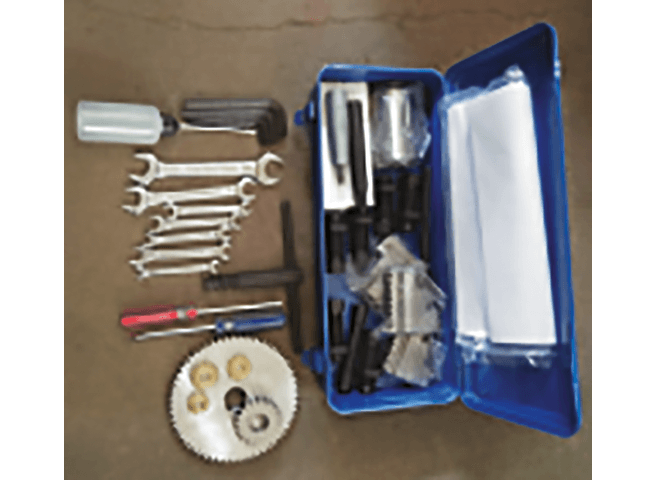

Toolbox
Foot Brake

Coolant System

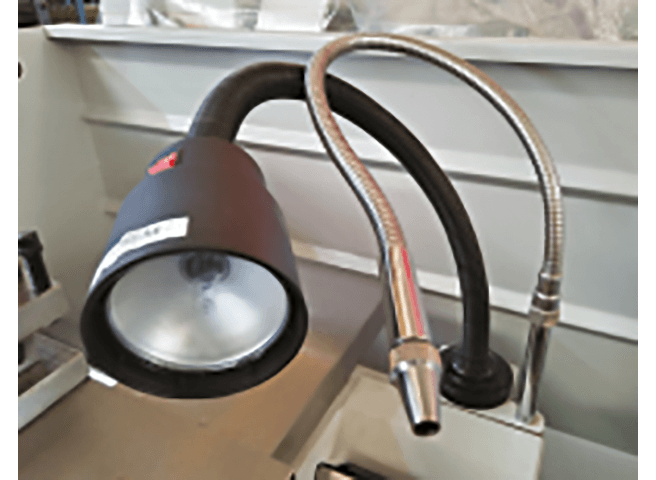

Machine Lamp
Centres
Reduction Sleeves
Changing Gears
Machine Base

Optional :

American Type Quick Change tool post with 3 tools holder
Taper Turning Attachment
Taper Turning Attachment
½ Drill Chuck With Socket

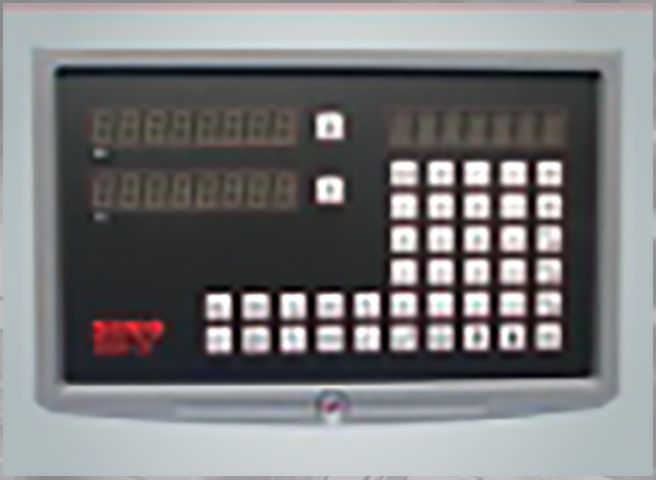

2 Axis DRO (Digital Read Out) Unit with High Precision Scales & fittings
6" Cap Tool post grinder with 1 HP 3 Phase electrical motor Revolving center MT-4
